Ball screw assembly nuts Parts
Compare Ball screw assembly nuts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension L [mm] |
|---|---|---|---|---|---|
| R153249022 | 12 x 10R x 2 - 2 | 3000.0 | 0.14 | 3600.0 | 33 |
| R151241221 | 40 x 5R x 3,5 - 5 | 34900.0 | 1.01 | 64100.0 | 70 |
| R151211243 | 20 x 5R x 3 - 4 | 17200.0 | 0.31 | 21500.0 | 40 |
| R155211204 | 20 x 5L x 3 - 4 | 17200.0 | 0 | 21500.0 | 40 |
| R151217207 | 20 x 20R x 3,5 - 3 | 16000.0 | 0.55 | 18800.0 | 77 |
| R151214204 | 20 x 10R x 3 - 4 | 16900.0 | 0.05 | 21300.0 | 64 |
| R151201267 | 16 x 5R x 3 - 4 | 14800.0 | 0.32 | 16100.0 | 45 |
| R151206211 | 16 x 16R x 3 - 3 | 11200.0 | 0.53 | 12300.0 | 61 |
| R151206210 | 16 x 16R x 3 - 2 | 7560.0 | 0.23 | 7600.0 | 45 |
| R151204209 | 16 x 10R x 3 - 3 | 11500.0 | 0.31 | 12300.0 | 45 |

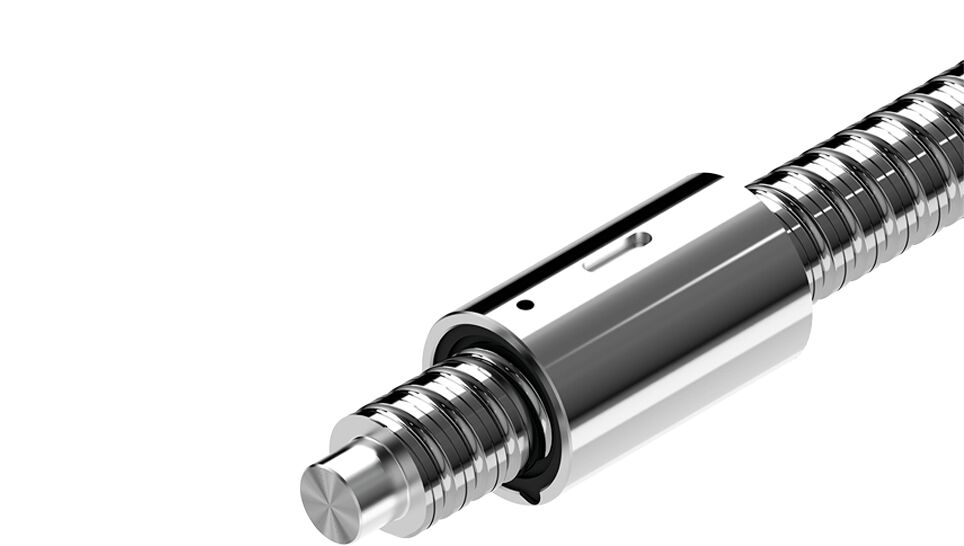

| R151204208 | 16 x 10R x 3 - 3 | 11500.0 | 0.25 | 12300.0 | 54 |
| R153246225 | 12 x 5R x 2 - 3 | 4560.0 | 0.1 | 5800.0 | 28 |
| R153249200 | 12 x 10R x 2 - 2 | 3000.0 | 0.11 | 3600.0 | 33 |
| R151231052 | 32 x 5R x 3,5 - 4 | 25900.0 | 0.5 | 40000.0 | 48 |
| R151234052 | 32 x 10R x 3,969 - 5 | 38000.0 | 0.75 | 58300.0 | 77 |
| R153223004 | 8 x 2,5R x 1,588 - 3 | 2640.0 | 0.11 | 2800.0 | 16 |
| R151274014 | 80 x 10R x 6,5 - 6 | 130100.0 | 4.75 | 291700.0 | 95 |
| R151269014 | 63 x 40R x 6,5 - 2 | 44300.0 | 4.86 | 74300.0 | 109 |
| R151267014 | 63 x 20R x 6,5 - 3 | 63800.0 | 4.16 | 112100.0 | 92 |
| R151264014 | 63 x 10R x 6 - 6 | 106600.0 | 3.28 | 214300.0 | 90 |
| R151251014 | 50 x 5R x 3,5 - 5 | 38400.0 | 1.5 | 81300.0 | 54 |
| R151259014 | 50 x 40R x 6,5 - 2 | 38500.0 | 4.36 | 55800.0 | 109 |
| R151257014 | 50 x 20R x 6,5 - 3 | 57500.0 | 4.17 | 87900.0 | 92 |
| R151254014 | 50 x 10R x 6 - 6 | 95600.0 | 2.7 | 166500.0 | 90 |
Common to all listed parts
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Screw drive seal | With seal |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |
