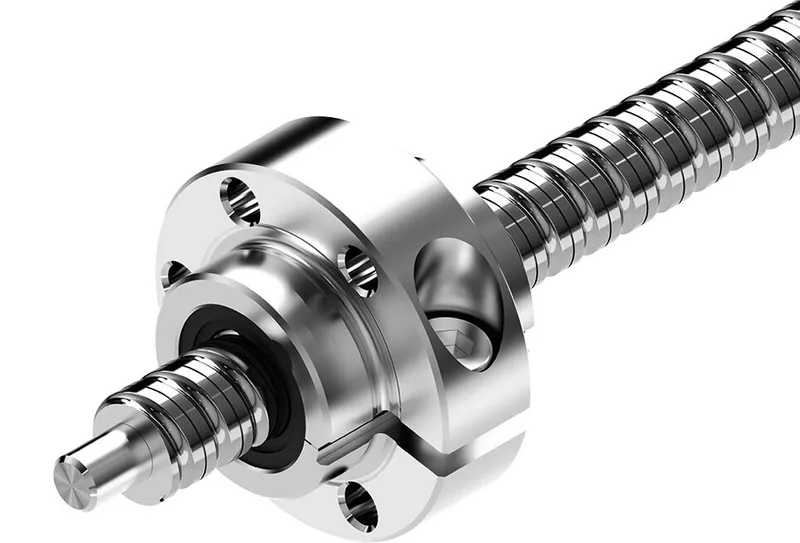

Bosch Rexroth R153246024
BALL NUT SEM-E-S 12X5RX2-3
- MPN
- R153246024
- Category
- Ball screw assembly nuts
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R153246024?
Adjustable-preload single nut SEM-E-S with standard seal and standard axial clearance
Nominal diameter d0 = 12
Lead P = 5 (right)
Ball diameter Dw = 2
Number of ball track turns i = 3
Rexroth connection dimensions
With seals
Adjustable preload
Tolerance grade: T5, T7
Specifications
Specifications
| Nominal size [mm] | 12 x 5R x 2 - 3 |
| Series | Miniature series |
| Dynamic load capacity C [N] | 4560.0 |
| Note: dynamic load capacity C | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Maximum permissible linear speed vmax (m/min) [m/min] | 30.0 |
| Note: maximum permissible speed vmax | See "Characteristic speed d<sub>0 </sub>• n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed n<sub>cr</sub>" (see General Technical Notes and Information, "Project planning notes") |
| Operating temperature (min. … max.) | -10 °C ... +80 °C |
| Storage temperature (min. … max.) | -15 °C ... +80 °C |
| Direction of lead | Right |
| Nut type | SEM-E-S zero-clearance adjustable single nut |
| Note: permissible operating temperature (min. ... max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Screw drive seal | With seal |
| Weight [kg] | 0.18 |
| Static load capacity C0 [N] | 5800.0 |
| Note: static load capacity C0 | The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Category | A |
| Maximum operating temperature [°C] | +80 |
| Bearing temperature max [°C] | +80 |
| Minimum operating temperature [°C] | -10 |
| Bearing temperature min [°C] | -15 |

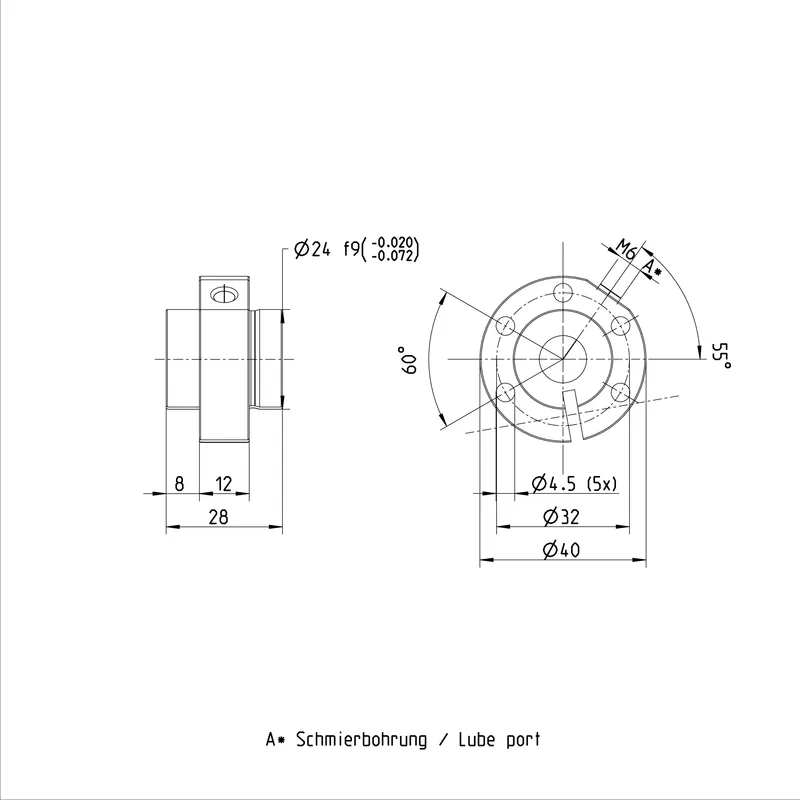

| Dimension d1 [mm] | 11.4 |
| Dimension D1 f9 [mm] | 24 |
| Dimension D1 max [mm] | 23.975 |
| Dimension D1 min [mm] | 23.94 |
| Dimension d2 [mm] | 9.9 |
| Dimension D5 [mm] | 40 |
| Dimension D6 [mm] | 32 |
| Dimension D7 [mm] | 4.5 |
| Dimension L [mm] | 28 |
| Dimension L10 [mm] | 8 |
| Dimension L3 [mm] | 12 |
| Dimension L4 [mm] | 8 |
| Dimension L5 [mm] | 8 |
| Dimension Sx [mm] | 4 |
| Angle φ [°] | 55 |
