Bosch Rexroth R151249014

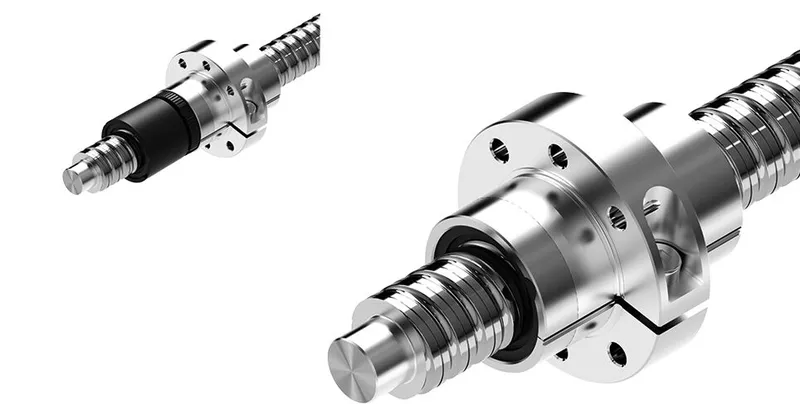

BALL NUT SEM-E-S 40X40RX6-2

MPN: R151249014
Category: Ball screw assembly nuts

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R151249014?

Adjustable-preload single nut SEM-E-S with standard seal and standard axial clearance

Nominal diameter d0 = 40

Lead P = 40 (right)

Ball diameter Dw = 6

Number of ball track turns i = 2

Rexroth connection dimensions

With seals

With left-hand version in some cases

Adjustable preload

Tolerance grade: T3 (for sizes as per the product overview for screws, see General Technical Notes and Information "Product description"), T5, T7

Specifications

Nominal size [mm]	40 x 40R x 6 - 2
Series	Standard series
Dynamic load capacity C [N]	30600.0
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	150.0
Note: maximum permissible speed vmax	See "Characteristic speed d<sub>0 </sub>• n" (section Technical notes) and "Critical speed n<sub>cr</sub>" (section Calculation and examples)
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Right
Nut type	SEM-E-S zero-clearance adjustable single nut
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB7
Screw drive seal	With seal
Weight [kg]	3.85
Static load capacity C0 [N]	40300.0
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor f<sub>ac</sub> (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

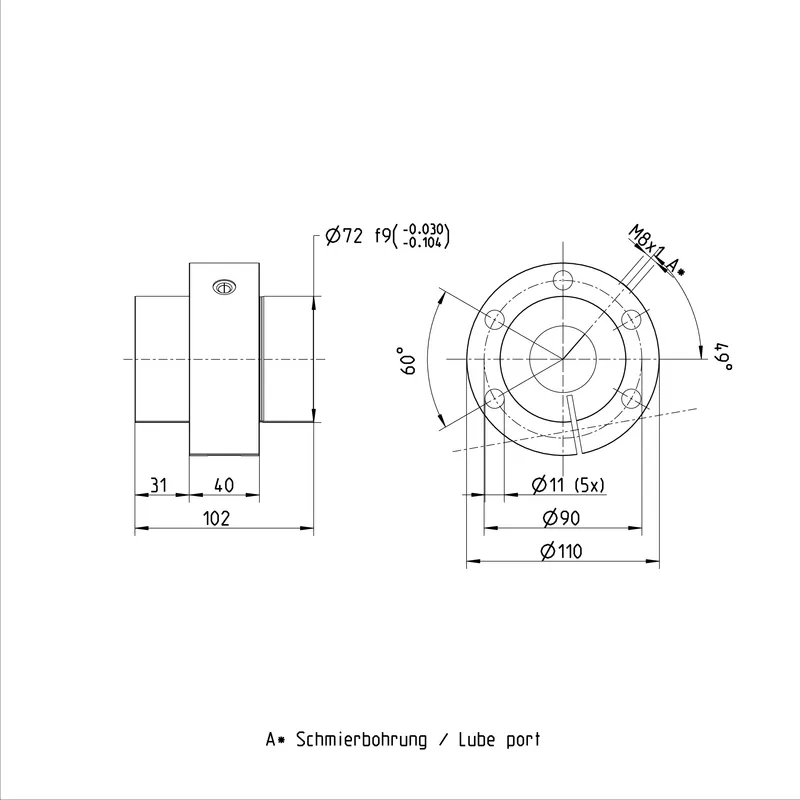

Dimension d1 [mm]	38
Dimension D1 f9 [mm]	72
Dimension D1 max [mm]	71.969
Dimension D1 min [mm]	71.941
Dimension d2 [mm]	33.8
Dimension D5 [mm]	110
Dimension D6 [mm]	90
Dimension D7 [mm]	11
Dimension L [mm]	102
Dimension L10 [mm]	31
Dimension L3 [mm]	40
Dimension L4 [mm]	31
Dimension L5 [mm]	31
Dimension Sx [mm]	5
Angle φ [°]	49
