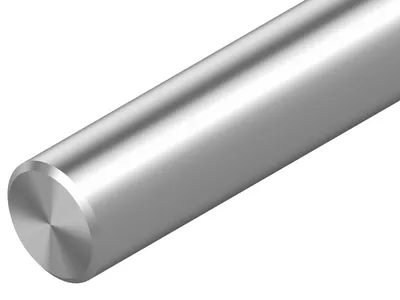

Precision steel shafts Parts
Compare Precision steel shafts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Tolerance grade shaft | Mass m (kg/m) [kg/m] | Hardness [HRC] |
|---|---|---|---|---|
| R100001801 | 18.0 | h7 | 1.98 | min. 60 |
| R100001800 | 18.0 | h6 | 1.98 | min. 60 |
| R100001621 | 16.0 | h7 | 1.57 | Min. 55 |
| R100001631 | 16.0 | h7 | 1.57 | Min. 54 |
| R100001661 | 16.0 | h7 | 1.57 | min. 60 |
| R100001601 | 16.0 | h7 | 1.57 | min. 60 |
| R100001620 | 16.0 | h6 | 1.57 | Min. 55 |
| R100001630 | 16.0 | h6 | 1.57 | Min. 54 |
| R100001660 | 16.0 | h6 | 1.57 | min. 60 |
| R100001600 | 16.0 | h6 | 1.57 | min. 60 |
| R100001501 | 15.0 | h7 | 1.38 | min. 60 |
| R100001500 | 15.0 | h6 | 1.38 | min. 60 |
| R100001431 | 14.0 | h7 | 1.2 | Min. 54 |
| R100001401 | 14.0 | h7 | 1.2 | min. 60 |
| R100001430 | 14.0 | h6 | 1.2 | Min. 54 |
| R100001400 | 14.0 | h6 | 1.2 | min. 60 |
| R100001221 | 12.0 | h7 | 0.88 | Min. 55 |
| R100001231 | 12.0 | h7 | 0.88 | Min. 54 |
| R100001261 | 12.0 | h7 | 0.88 | min. 60 |
| R100001201 | 12.0 | h7 | 0.88 | min. 60 |
| R100001220 | 12.0 | h6 | 0.88 | Min. 55 |
| R100001230 | 12.0 | h6 | 0.88 | Min. 54 |
| R100001260 | 12.0 | h6 | 0.88 | min. 60 |
| R100001200 | 12.0 | h6 | 0.88 | min. 60 |
Common to all listed parts
| Version of precision steel shaft | Solid shaft |
| Type | Precision steel shaft |
| Weight [kg] | 0 |
| Footnote length L | Regarding geometry and hardness |
| Cylindricity tolerance t2 footnote | Measurement of differences in diameter |
