Bosch Rexroth R100001501

SOLID SHAFT WV-15H7

MPN: R100001501
Category: Precision steel shafts

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

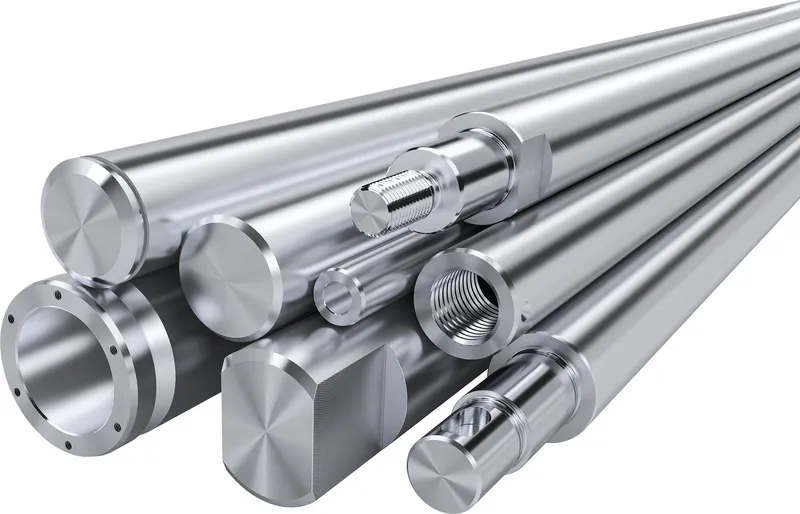

What is the Bosch Rexroth R100001501?

Solid shaft

made of heat-treated steel

Shaft diameter d = 15

Tolerance = H7

For particularly high demands with a very long service life under rolling loads.

Specifications

Shaft diameter d [mm]	15.0
Material of precision steel shafts	Heat-treated steel Cf53
Tolerance grade shaft	h7
Version of precision steel shaft	Solid shaft
Note: tolerance grade	Other tolerances upon request
Type	Precision steel shaft
Note: Lmax	Sections are combined for longer overall lengths. Linear bushings can simply be rolled over joints.
Mass m (kg/m) [kg/m]	1.38
Weight [kg]	0
Hardness [HRC]	min. 60
Straightness tolerance t3 footnote	The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012.
Footnote length L	Regarding geometry and hardness
Cylindricity tolerance t2 footnote	Measurement of differences in diameter

R100001501: frequently asked questions

When can R100001501 be shipped?

R100001501 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R100001501 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R100001501 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R100001501, subject to availability and destination.
