Precision steel shafts Parts
Compare Precision steel shafts
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Tolerance grade shaft | Mass m (kg/m) [kg/m] | Outer diameter d [mm] | Inner diameter d [mm] |
|---|---|---|---|---|---|
| R072401066 | 10.0 | h7 | 0.51 | — | — |
| R072401069 | 10.0 | h7 | 0.51 | — | — |

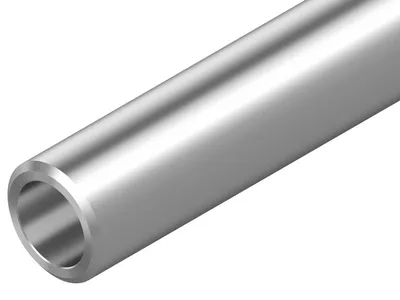

| R100100810 | 8.0 | h6 | 0.34 | 8 | 3 |
| R100108041 | 80.0 | h7 | 19.02 | 80 | 57.4 |
| R100108011 | 80.0 | h7 | 19.02 | 80 | 57.4 |
| R100108010 | 80.0 | h6 | 19.02 | 80 | 57.4 |
| R100106041 | 60.0 | h7 | 13.89 | 60 | 36.5 |
| R100106011 | 60.0 | h7 | 13.89 | 60 | 36.5 |
| R100106010 | 60.0 | h6 | 13.89 | 60 | 36.5 |
| R100105041 | 50.0 | h7 | 9.95 | 50 | 29.6 |
| R100105011 | 50.0 | h7 | 9.95 | 50 | 29.6 |
| R100105010 | 50.0 | h6 | 9.95 | 50 | 29.6 |
| R100104041 | 40.0 | h7 | 5.5 | 40 | 26.5 |
| R100104011 | 40.0 | h7 | 5.5 | 40 | 26.5 |
| R100104010 | 40.0 | h6 | 5.5 | 40 | 26.5 |
| R100103041 | 30.0 | h7 | 3.3 | 30 | 19 |
| R100103011 | 30.0 | h7 | 3.3 | 30 | 19 |
| R100103010 | 30.0 | h6 | 3.3 | 30 | 19 |
| R100102541 | 25.0 | h7 | 2.63 | 25 | 14 |
| R100102511 | 25.0 | h7 | 2.63 | 25 | 14 |
| R100102510 | 25.0 | h6 | 2.63 | 25 | 14 |
| R100102011 | 20.0 | h7 | 1.25 | 20 | 14 |
| R100102010 | 20.0 | h6 | 1.25 | 20 | 14 |
| R100101610 | 16.0 | h6 | 1.18 | 16 | 8 |
Common to all listed parts
| Weight [kg] | 0 |
