Bosch Rexroth R100001260

SOLID SHAFT WV-12H6-CR

MPN: R100001260

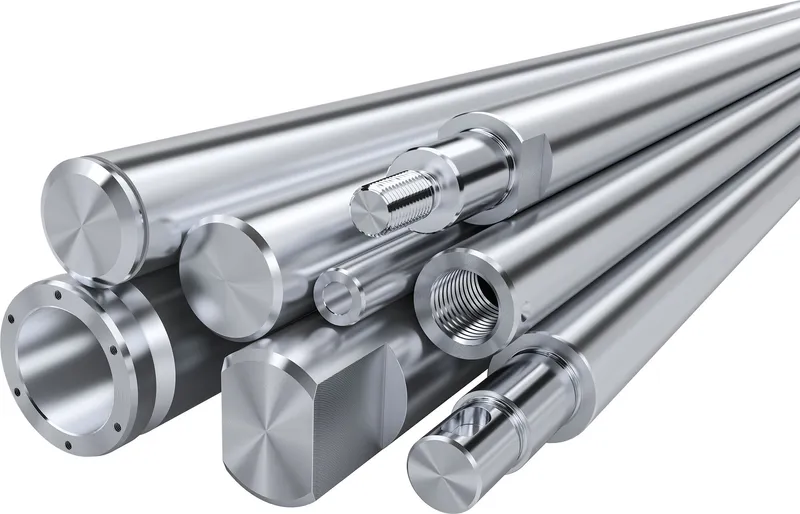

Category: Precision steel shafts

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R100001260?

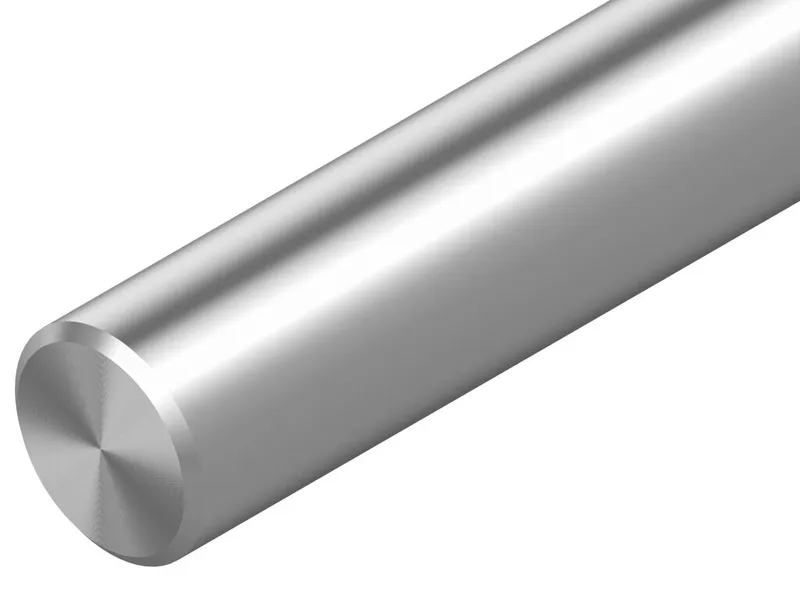

Solid shaft

made of heat-treated steel (hard chrome plated)

Shaft diameter d = 12

Tolerance = H6

Optimal shaft surface corrosion protection on outer diameter

Specifications

Shaft diameter d [mm]	12.0
Material of precision steel shafts	Heat-treated steel Cf53 hard chrome plated
Tolerance grade shaft	h6
Version of precision steel shaft	Solid shaft
Type	Precision steel shaft
Note: Lmax	Sections are combined for longer overall lengths. Linear bushings can simply be rolled over joints.
Mass m (kg/m) [kg/m]	0.88
Weight [kg]	0
Hardness [HRC]	min. 60
Straightness tolerance t3 footnote	The smallest possible value is 40 µm for lengths under 1 m. Straightness is measured based on ISO 13012.
Footnote hardness	Optional: With chrome plating (about 10 µm thick), approx. 1,000 HV
Footnote length L	Regarding geometry and hardness
Cylindricity tolerance t2 footnote	Measurement of differences in diameter
