Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension L [mm] |
|---|---|---|---|---|---|
| R102922544 | 25.0 | 4760.0 | 0.58 | 3900.0 | 85 |
| R102922034 | 20.0 | 1610.0 | 0.33 | 1440.0 | 65 |
| R102922044 | 20.0 | 2290.0 | 0.33 | 1800.0 | 65 |
| R102921634 | 16.0 | 1180.0 | 0.24 | 920.0 | 65 |

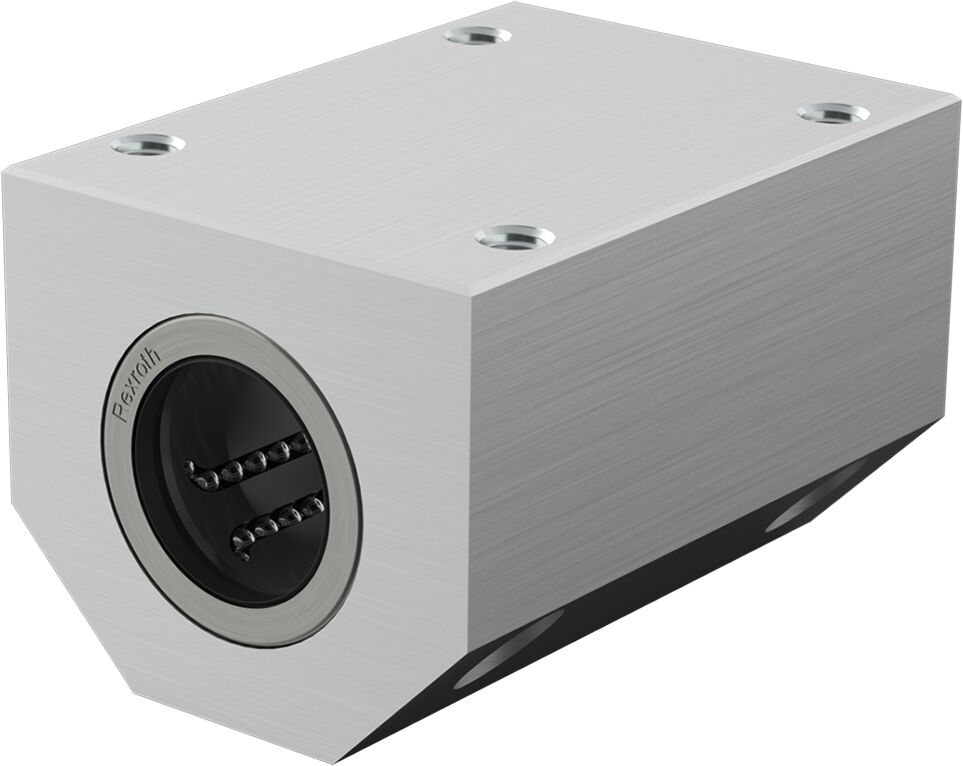

| R102921644 | 16.0 | 1700.0 | 0.24 | 1140.0 | 65 |
| R102921234 | 12.0 | 920.0 | 0.18 | 780.0 | 60 |
| R102921244 | 12.0 | 1310.0 | 0.18 | 980.0 | 60 |
| R102825044 | 50.0 | 7180.0 | 1.19 | 5350.0 | 70 |
| R102824044 | 40.0 | 6380.0 | 0.76 | 4650.0 | 60 |
| R102823044 | 30.0 | 3850.0 | 0.4 | 2790.0 | 50 |
| R102822544 | 25.0 | 2930.0 | 0.28 | 1950.0 | 40 |
| R102822044 | 20.0 | 1410.0 | 0.16 | 900.0 | 30 |
| R102821644 | 16.0 | 1050.0 | 0.11 | 570.0 | 30 |
| R102821244 | 12.0 | 810.0 | 0.09 | 490.0 | 28 |
| R102725034 | 50.0 | 5030.0 | 1.21 | 4280.0 | 70 |
| R102724034 | 40.0 | 4470.0 | 0.76 | 3720.0 | 60 |
| R102724044 | 40.0 | 6380.0 | 0.77 | 4650.0 | 60 |
| R102723034 | 30.0 | 2700.0 | 0.41 | 2230.0 | 50 |
| R102723044 | 30.0 | 3850.0 | 0.41 | 2790.0 | 50 |
| R102722534 | 25.0 | 2050.0 | 0.28 | 1560.0 | 40 |
| R102722544 | 25.0 | 2930.0 | 0.28 | 1950.0 | 40 |
| R102722034 | 20.0 | 990.0 | 0.15 | 720.0 | 30 |
| R102722044 | 20.0 | 1410.0 | 0.15 | 900.0 | 30 |

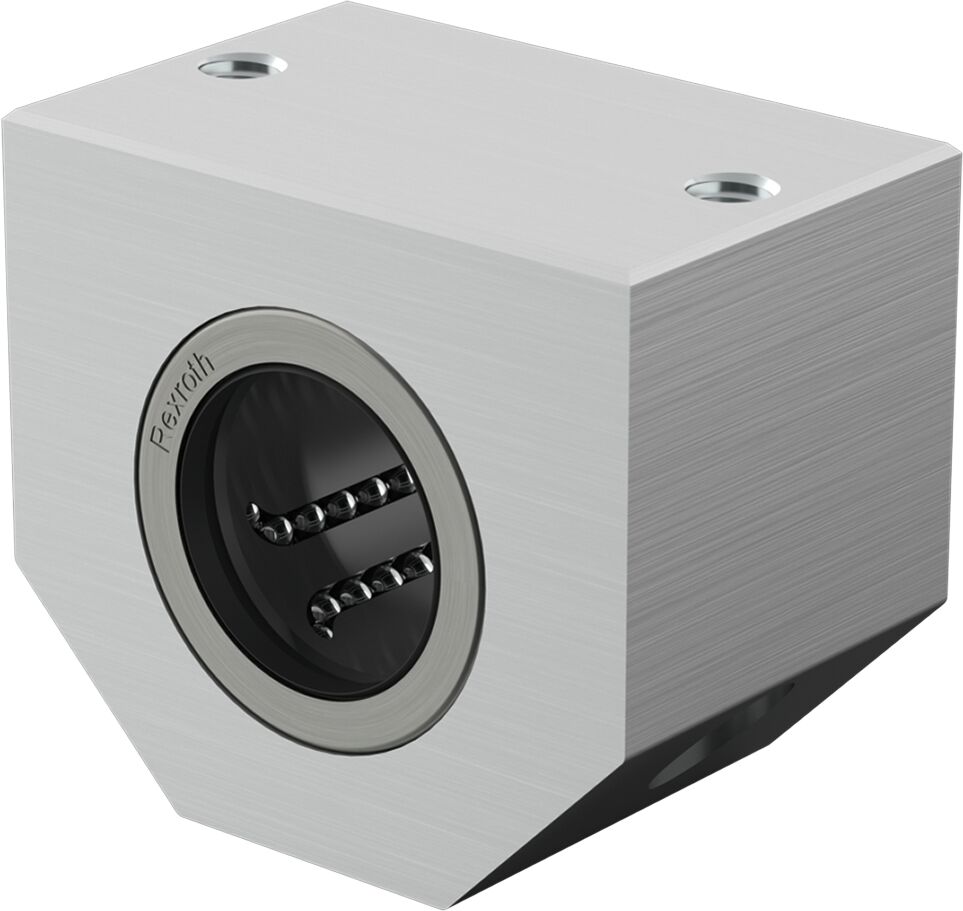

| R102721634 | 16.0 | 730.0 | 0.11 | 460.0 | 30 |
Common to all listed parts
| Series | Compact |
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
