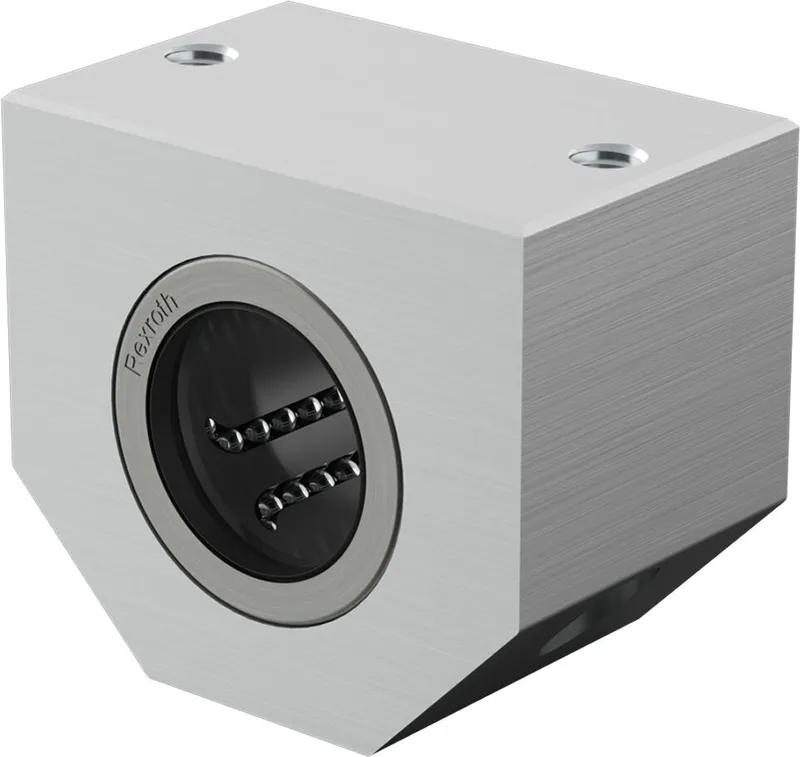

Bosch Rexroth R102724044

LINEAR-SET LSAC-40-DD-G

MPN: R102724044
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R102724044?

Linear set (aluminum)

With compact LB, closed

Shaft diameter d = 40

With two seals

Version: Standard

Greased

Lightweight precision housing (aluminum)

compact linear bushing

Integrated wiper seals

Normal radial clearance

Initial lubrication with Dynalub 510

Specifications

Shaft diameter d [mm]	40.0
Version	Standard
Format of linear bushings	– Closed
Series	Compact
Type	Linear set
Dynamic load capacity C [N]	6380.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f<sub>0</sub> = 0.86, ↩Ø d 20 to 50: f = 0.79, f<sub>0</sub> = 0.68
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Outer diameter D [mm]	52.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.77
Static load capacity C0 [N]	4650.0
Note: static load capacity C0	The load capacities apply for the main direction of loading. If the load direction is not the main direction of loading, the load capacities must be multiplied by the following factors: ↩Ø d 12 and 16: f = 0.90, f<sub>0</sub> = 0.86, ↩Ø d 20 to 50: f = 0.79, f<sub>0</sub> = 0.68
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	8
Dimension A (profiled rail systems) [mm]	87
Dimension D [mm]	52
Dimension E [mm]	69
Dimension H [mm]	39.0
Dimension H1 (profiled rail systems) [mm]	76
Dimension H4 [mm]	24
Dimension L [mm]	60
Dimension N1 (profiled rail systems) [mm]	38
Dimension N2 (profiled rail systems) [mm]	22
Dimension S [mm]	8.4
Dimension SW [mm]	5
