Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C [N] | Weight [kg] | Static load capacity C0 [N] | Dimension H1 (profiled rail systems) [mm] | Dimension L [mm] |
|---|---|---|---|---|---|
| R102721644 | 1050.0 | 0.11 | 570.0 | 38 | 30 |

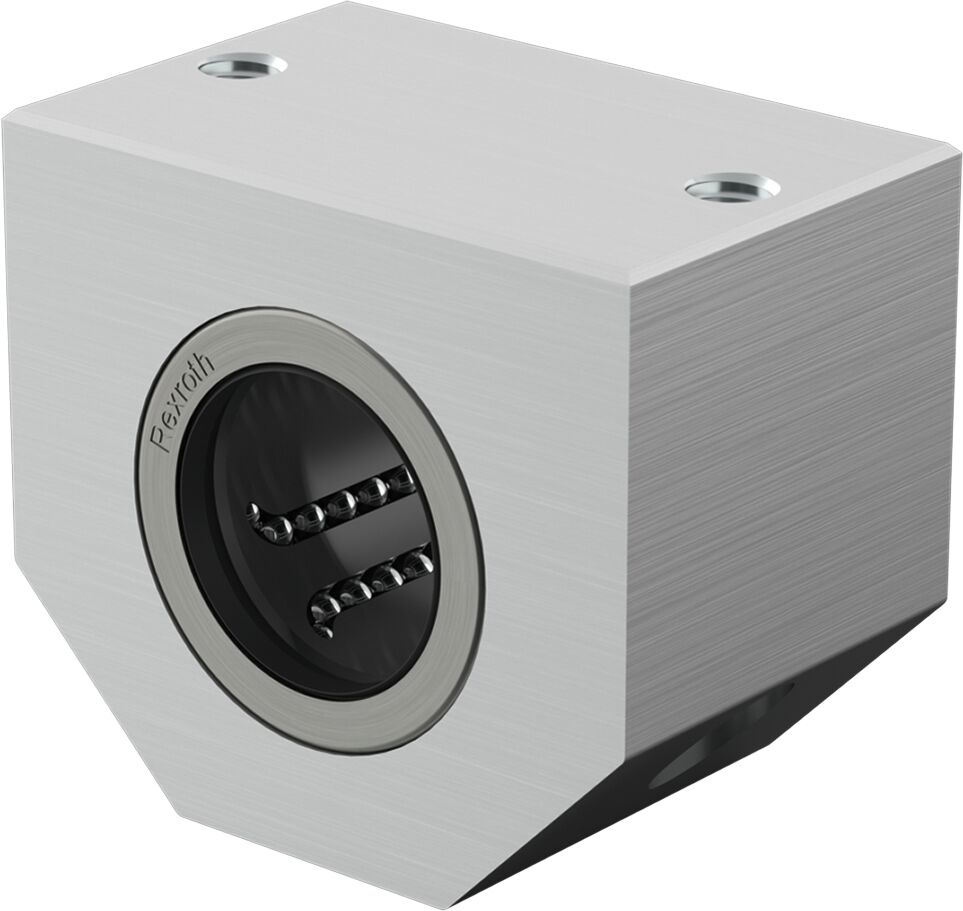

| R102721234 | 570.0 | 0.09 | 390.0 | 33 | 28 |
| R102721244 | 810.0 | 0.09 | 490.0 | 33 | 28 |
| R103585020 | 14730.0 | 3.01 | 8280.0 | 105 | 113 |
| R103584020 | 10070.0 | 1.76 | 5570.0 | 90 | 91 |
| R103583020 | 5860.0 | 1 | 3570.0 | 70 | 79 |
| R103582520 | 4820.0 | 0.67 | 2790.0 | 60 | 67 |

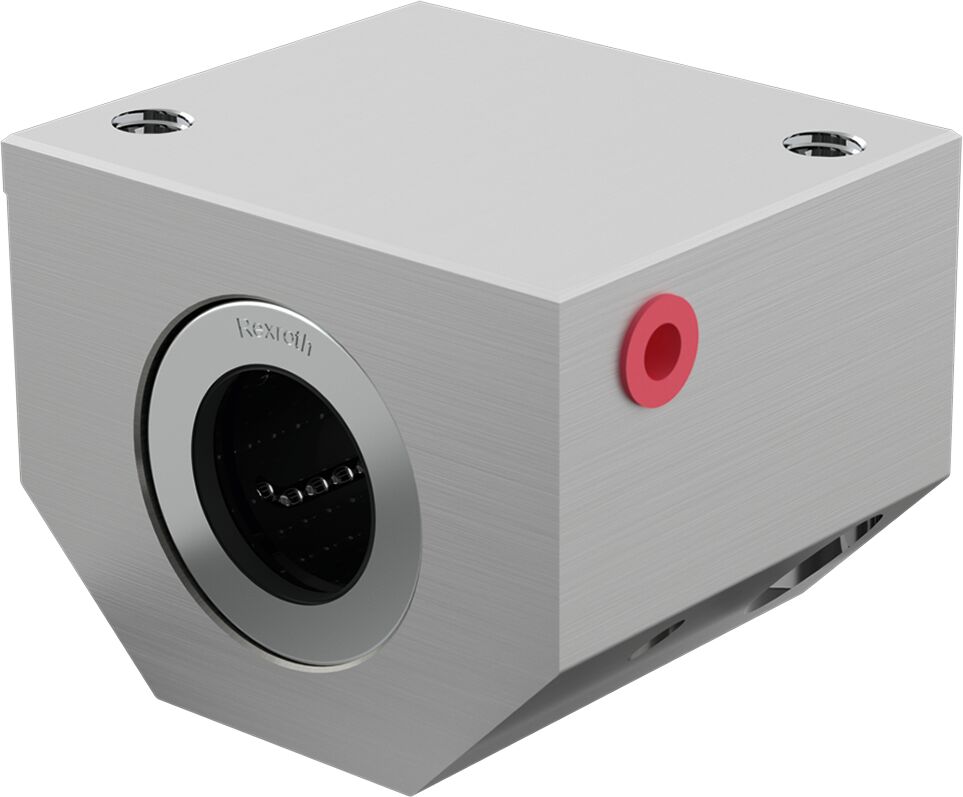

| R103582020 | 2470.0 | 0.35 | 1340.0 | 50 | 54 |
| R103581620 | 1250.0 | 0.21 | 620.0 | 42 | 43 |
| R103581220 | 1020.0 | 0.14 | 490.0 | 35 | 39 |
| R103581020 | 730.0 | 0.11 | 380.0 | 31.5 | 36 |
| R103565020 | 14730.0 | 3.02 | 8280.0 | 105 | 113 |
| R103564020 | 10070.0 | 1.79 | 5570.0 | 90 | 91 |
| R103563020 | 5860.0 | 1 | 3570.0 | 70 | 79 |
| R103562520 | 4820.0 | 0.67 | 2790.0 | 60 | 67 |
| R103562020 | 2470.0 | 0.35 | 1340.0 | 50 | 54 |
| R103561620 | 1250.0 | 0.21 | 620.0 | 42 | 43 |
| R103561220 | 1020.0 | 0.13 | 490.0 | 35 | 39 |
| R103561020 | 730.0 | 0.11 | 380.0 | 31.5 | 36 |
| R161380000 | 54800.0 | 32.6 | 61500.0 | 130 | 200 |
| R161360000 | 29500.0 | 12.53 | 34100.0 | 97 | 150 |

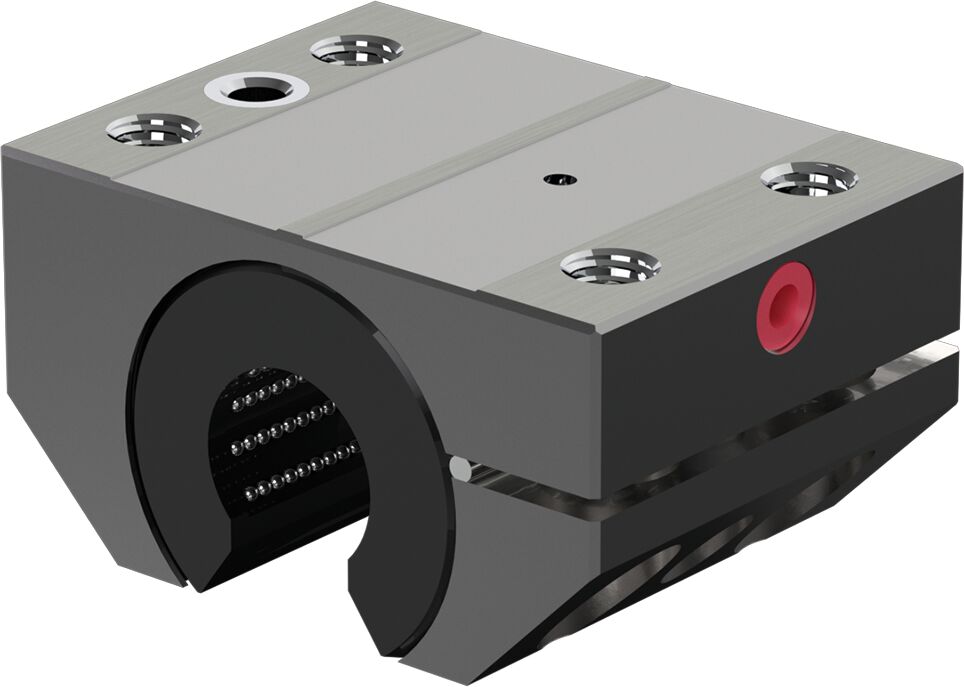

| R161350000 | 20800.0 | 7.57 | 24400.0 | 81.5 | 125 |
| R161340000 | 13900.0 | 3.71 | 16000.0 | 66 | 100 |
| R161330000 | 8500.0 | 1.76 | 9520.0 | 53 | 75 |
