Linear sets with linear bushings Parts
Compare Linear sets with linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Dynamic load capacity C [N] | Outer diameter D [mm] | Weight [kg] | Static load capacity C0 [N] |
|---|---|---|---|---|---|

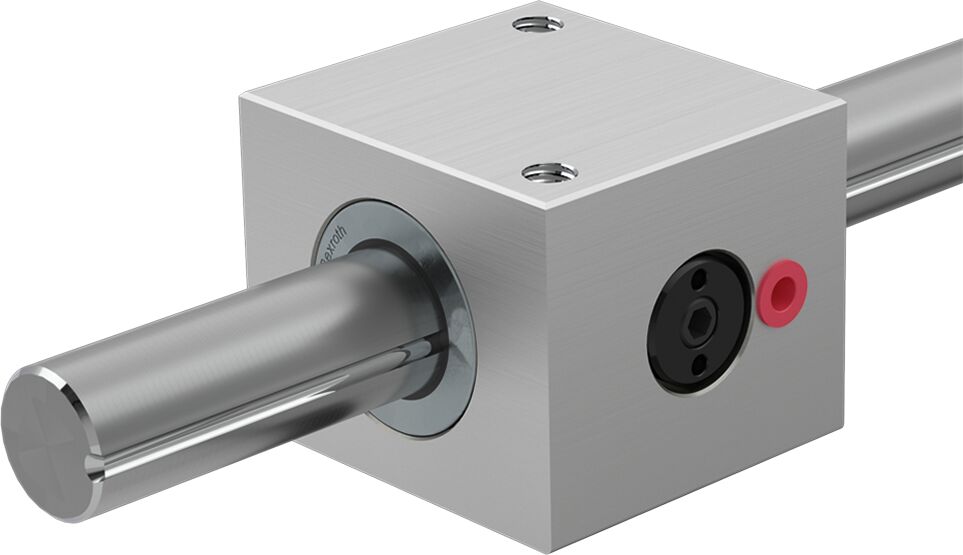

| R109822088 | 20.0 | 1550.0 | 32.0 | 0.45 | 1050.0 |
| R109822087 | 20.0 | 1550.0 | 32.0 | 0.1 | 1050.0 |
| R109822086 | 20.0 | 1550.0 | 32.0 | 0 | 1050.0 |
| R109821679 | 16.0 | 780.0 | 26.0 | 0 | 530.0 |
| R109821689 | 16.0 | 780.0 | 26.0 | 0 | 530.0 |
| R109821685 | 16.0 | 780.0 | 26.0 | 2.22 | 530.0 |
| R109821680 | 16.0 | 780.0 | 26.0 | 0.8 | 530.0 |
| R109821688 | 16.0 | 780.0 | 26.0 | 0.1 | 530.0 |
| R109821687 | 16.0 | 780.0 | 26.0 | 0.1 | 530.0 |
| R109821686 | 16.0 | 780.0 | 26.0 | 0 | 530.0 |
| R109821279 | 12.0 | 640.0 | 22.0 | 0 | 420.0 |
| R109821289 | 12.0 | 640.0 | 22.0 | 0 | 420.0 |
| R109821285 | 12.0 | 640.0 | 22.0 | 1.5 | 420.0 |
| R109821280 | 12.0 | 640.0 | 22.0 | 0.78 | 420.0 |
| R109821288 | 12.0 | 640.0 | 22.0 | 0.1 | 420.0 |
| R109821287 | 12.0 | 640.0 | 22.0 | 0.1 | 420.0 |
| R109821286 | 12.0 | 640.0 | 22.0 | 0 | 420.0 |
| R102925034 | 50.0 | 8170.0 | 62.0 | 2.45 | 8560.0 |
| R102925044 | 50.0 | 11660.0 | 62.0 | 2.45 | 10700.0 |
| R102924034 | 40.0 | 7260.0 | 52.0 | 1.57 | 7440.0 |
| R102924044 | 40.0 | 10360.0 | 52.0 | 1.59 | 9300.0 |

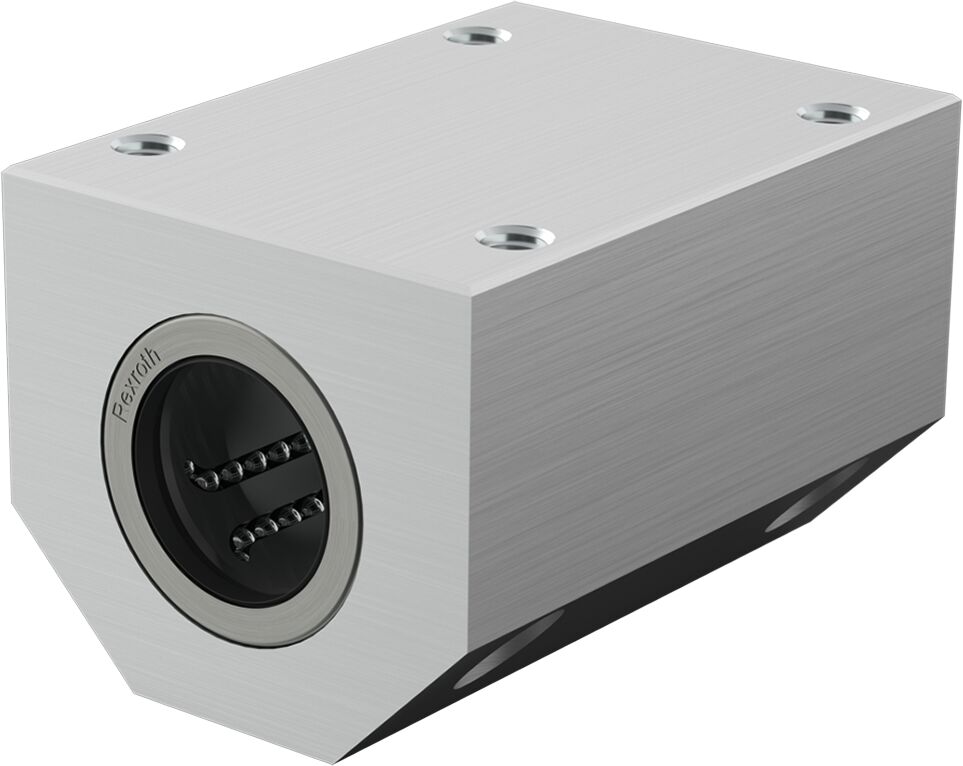

| R102923034 | 30.0 | 4385.0 | 40.0 | 0.85 | 4460.0 |
| R102923044 | 30.0 | 6250.0 | 40.0 | 0.85 | 5580.0 |
| R102922534 | 25.0 | 3330.0 | 35.0 | 0.58 | 3120.0 |
Common to all listed parts
| Type | Linear set |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
