What is the Bosch Rexroth R072321686?

Linear set (steel)

Compact LB, flange

Ball guide grooves = 1

Shaft diameter d = 16

SPECIAL = shaft length processing in acc. with drawing

Without seal

Version: Standard

Steel flanged sleeve

Torque-resistant compact linear bushing

One ball guide groove for diameter shafts 12 and 16 mm

Two ball guide grooves for diameter shafts 20 mm and higher

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

External seals

Stability against tipping loads: Installation of 2 linear sets, see chapter "Mounting"

Relubricatable

Specifications

Shaft diameter d [mm]	16.0
Format of linear bushings	F - Flange
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	780.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	3.3
Mass m (kg/m) [kg/m]	1.57
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0
Static load capacity C0 [N]	530.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

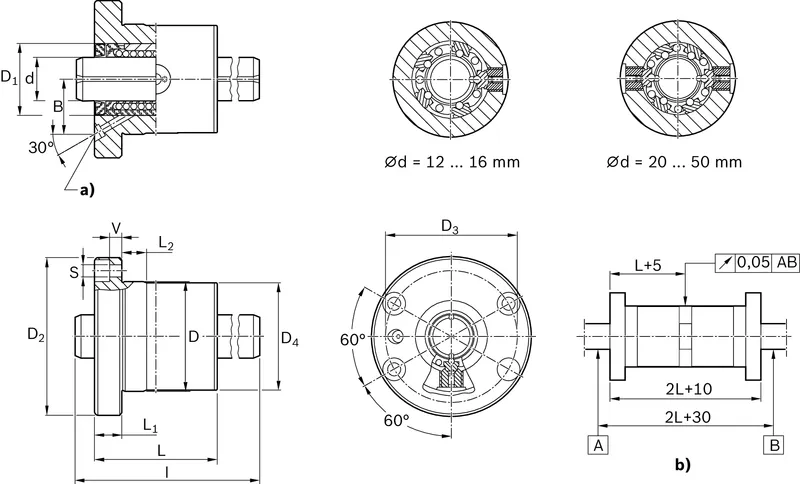

Dimension B (profiled rail systems) [mm]	20
Dimension D1 [mm]	26
Dimension D h6 [mm]	36
Dimension D2 [mm]	54
Dimension D3 [mm]	44
Dimension D4 [mm]	36
Dimension L H11 [mm]	44
Dimension L1 [mm]	10
Dimension L2 [mm]	10
Dimension S [mm]	4.5
Dimension V [mm]	4.5
Standard length l of the shaft [mm]	400
