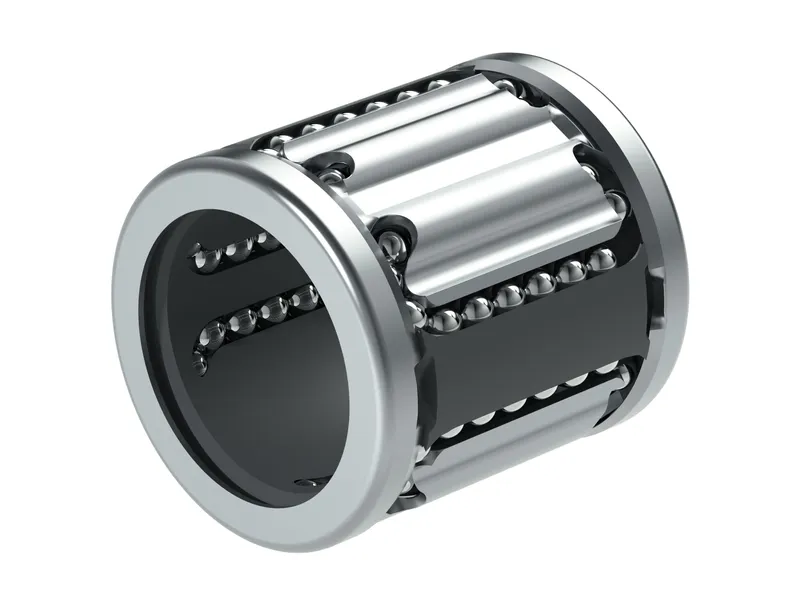

Bosch Rexroth R065824040

COMPACT LINEAR BUSHING KBC-40-DD

MPN: R065824040
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R065824040?

Compact linear bushing

Shaft diameter d = 40

With two seals

Radial clearance: Standard

Version: Standard

Not lubricated

Low-cost linear bushing for general requirements

Small outer dimensions and highly compact construction

High dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running track

High travel speed (5 m/s)

Integrated wiper seals, external seals or no wiper seals

Normal radial clearance

Not greased

Simple mounting: Just press on – no additional retention needed

Many pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for life

Pockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.

Integrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing bore

Specifications

Shaft diameter d [mm]	40.0
Version	Standard
Format of linear bushings	– Closed
Series	Compact
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	6380.0
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Radial clearance	normal radial clearance
Length of linear bushing [mm]	60.0
Outer diameter D [mm]	52.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.16
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	8
Dimension C [mm]	60
Dimension D [mm]	52
