Linear bushings Parts
























Compare Linear bushings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Shaft diameter d [mm] | Length of linear bushing [mm] | Outer diameter D [mm] | Weight [kg] | Breakaway force [N] |
|---|---|---|---|---|---|

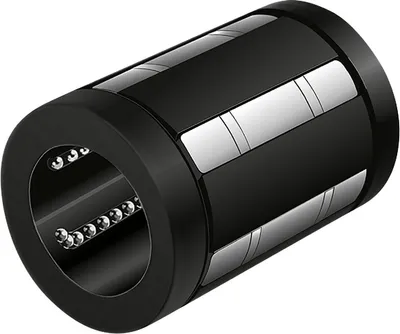

| R067201000 | 10.0 | 29.0 | 19.0 | 0.02 | 1 |
| R067125045 | 50.0 | 100.0 | 75.0 | 0.55 | 30 |
| R067125040 | 50.0 | 100.0 | 75.0 | 0.55 | 10 |
| R067115040 | 50.0 | 100.0 | 75.0 | 0.56 | 10 |
| R067105000 | 50.0 | 100.0 | 75.0 | 0.56 | 10 |
| R067124045 | 40.0 | 80.0 | 62.0 | 0.33 | 24 |
| R067124040 | 40.0 | 80.0 | 62.0 | 0.33 | 8 |
| R067114040 | 40.0 | 80.0 | 62.0 | 0.33 | 8 |
| R067104000 | 40.0 | 80.0 | 62.0 | 0.33 | 8 |
| R067123045 | 30.0 | 68.0 | 47.0 | 0.18 | 18 |
| R067123040 | 30.0 | 68.0 | 47.0 | 0.18 | 6 |
| R067113040 | 30.0 | 68.0 | 47.0 | 0.18 | 6 |
| R067103000 | 30.0 | 68.0 | 47.0 | 0.18 | 6 |
| R067122545 | 25.0 | 58.0 | 40.0 | 0.13 | 14 |
| R067122540 | 25.0 | 58.0 | 40.0 | 0.13 | 4.5 |
| R067112540 | 25.0 | 58.0 | 40.0 | 0.12 | 4.5 |
| R067102500 | 25.0 | 58.0 | 40.0 | 0.12 | 4.5 |
| R067122045 | 20.0 | 45.0 | 32.0 | 0.07 | 10 |
| R067122040 | 20.0 | 45.0 | 32.0 | 0.07 | 3 |
| R067112040 | 20.0 | 45.0 | 32.0 | 0.07 | 3 |
| R067102000 | 20.0 | 45.0 | 32.0 | 0.07 | 3 |
| R067121645 | 16.0 | 36.0 | 26.0 | 0.04 | 9 |
| R067121640 | 16.0 | 36.0 | 26.0 | 0.04 | 2 |
| R067111640 | 16.0 | 36.0 | 26.0 | 0.04 | 2 |
Common to all listed parts
| Version | Standard |
| Type | Linear bushing |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.0025 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
