Danfoss orbital motor quick selector Parts

Danfoss

129-0365-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02F000000B

Danfoss

129-0348-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08A06D000000B

Danfoss

129-0342-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D000000B

Danfoss

129-0341-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01D000000B

Danfoss

129-0340-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08A01D000000B

Danfoss

129-0339-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01D000000B

Danfoss

129-0338-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B06H000000B

Danfoss

129-0330-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02H000000B

Danfoss

129-0327-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02H000000B

Danfoss

129-0318-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02B000000B

Danfoss

129-0294-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01A000000B

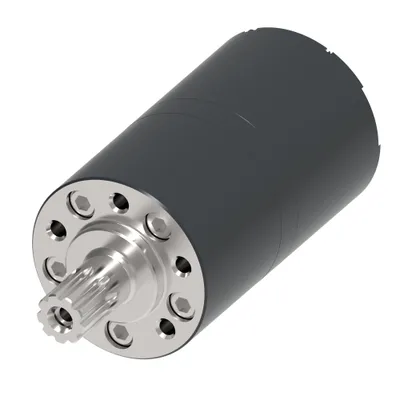

Danfoss

129-0293-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A000000B

Danfoss

129-0292-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08A01A000000B

Danfoss

129-0291-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A000000B

Danfoss

129-0244-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B14E2000A0B

Danfoss

129-0240-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A02D1000A0B

Danfoss

129-0238-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02E200000B

Danfoss

129-0226-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02A100000B

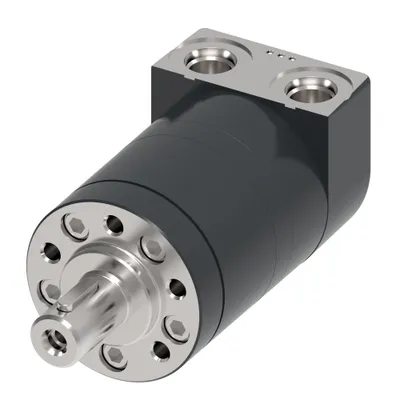

Danfoss

129-0222-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A01D100000B

Danfoss

129-0176-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D100000B

Danfoss

129-0175-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01D100000B

Danfoss

129-0174-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A01D100000B

Danfoss

129-0173-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A01A100000B

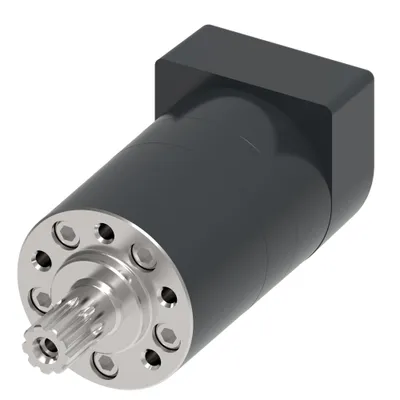

Danfoss

129-0143-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B06H2000A0B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port dimension	Drain Port Dimension
129-0365-002	M0J12B02F000000B	20	19.8 [1.21]	G 1/4	None
129-0348-002	M0J08A06D000000B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0342-002	M0J19A01D000000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0341-002	M0J12A01D000000B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0340-002	M0J08A01D000000B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0339-002	M0J05A01D000000B	8	8.2 [0.50]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0338-002	M0J19B06H000000B	30	31.6 [1.93]	G 3/8	None
129-0330-002	M0J19B02H000000B	30	31.6 [1.93]	G 3/8	None
129-0327-002	M0J05B02H000000B	8	8.2 [0.50]	G 3/8	None
129-0318-002	M0J19B02B000000B	30	31.6 [1.93]	G 1/4	None
129-0294-002	M0J19A01A000000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0293-002	M0J12A01A000000B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0292-002	M0J08A01A000000B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0291-002	M0J05A01A000000B	8	8.2 [0.50]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0244-002	M0J19B14E2000A0B	30	31.6 [1.93]	G 3/8	G 1/8
129-0240-002	M0J19A02D1000A0B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0238-002	M0J12B02E200000B	20	19.8 [1.21]	G 3/8	G 1/8
129-0226-002	M0J19B02A100000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0222-002	M0J05A01D100000B	8	8.2 [0.50]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0176-002	M0J19A01D100000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0175-002	M0J12A01D100000B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0174-002	M0J08A01D100000B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0173-002	M0J05A01A100000B	8	8.2 [0.50]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0143-002	M0J12B06H2000A0B	20	19.8 [1.21]	G 3/8	G 1/8

Common to all listed parts

Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Mounting flange type	5 Bolt - Round
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
