Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Danfoss

129-0132-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B05E2000A0B

Danfoss

129-0116-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02H2000A0B

Danfoss

129-0115-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02H2000A0B

Danfoss

129-0114-002

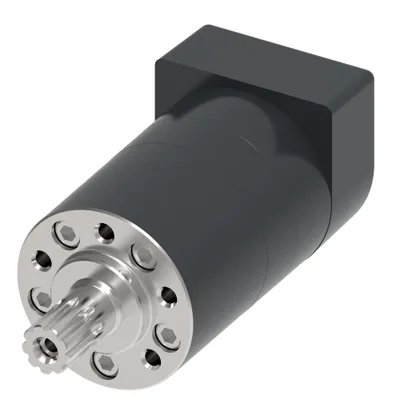

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02H2000A0B

Danfoss

129-0113-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02H2000A0B

Danfoss

129-0104-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19D02E2000A0B

Danfoss

129-0103-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12D02E2000A0B

Danfoss

129-0101-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05D02E2000A0B

Danfoss

129-0100-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19C01A1000A0B

Danfoss

129-0098-002

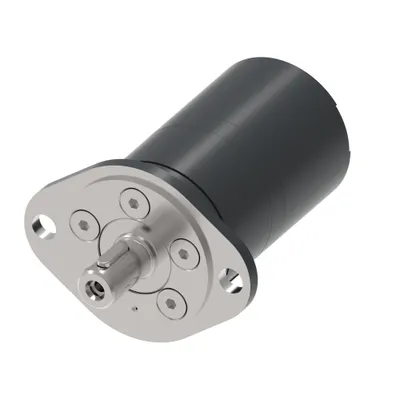

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08C01A1000A0B

Danfoss

129-0096-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A04D1000A0B

Danfoss

129-0093-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A04D1000A0B

Danfoss

129-0090-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A04A1000A0B

Danfoss

129-0084-002

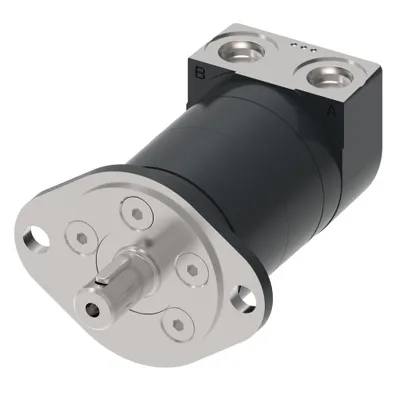

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19D05G3000A0B

Danfoss

129-0056-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02G3000A0B

Danfoss

129-0055-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02G3000A0B

Danfoss

129-0054-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02G3000B0B

Danfoss

129-0053-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02G3000A0B

Danfoss

129-0052-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B06C3000A0B

Danfoss

129-0043-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02C3000A0B

Danfoss

129-0042-002

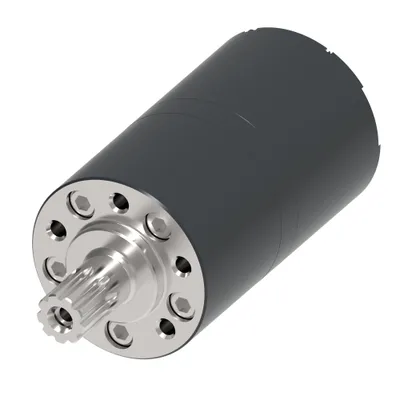

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02C3000A0B

Danfoss

129-0041-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02C3000A0B

Danfoss

129-0040-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B06F2000A0B

Danfoss

129-0036-002

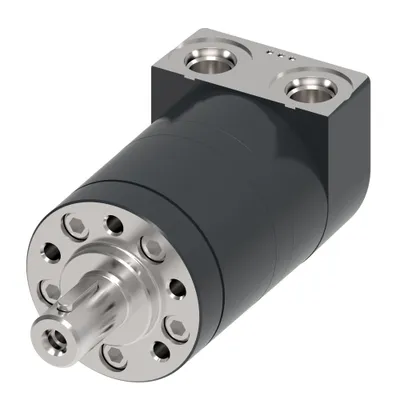

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B06E2000A0B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port dimension
129-0132-002	M0J19B05E2000A0B	30	31.6 [1.93]	BSP	G 3/8
129-0116-002	M0J19B02H2000A0B	30	31.6 [1.93]	BSP	G 3/8
129-0115-002	M0J12B02H2000A0B	20	19.8 [1.21]	BSP	G 3/8
129-0114-002	M0J08B02H2000A0B	13	12.9 [0.79]	BSP	G 3/8
129-0113-002	M0J05B02H2000A0B	8	8.2 [0.50]	BSP	G 3/8
129-0104-002	M0J19D02E2000A0B	30	31.6 [1.93]	BSP	G 3/8
129-0103-002	M0J12D02E2000A0B	20	19.8 [1.21]	BSP	G 3/8
129-0101-002	M0J05D02E2000A0B	8	8.2 [0.50]	BSP	G 3/8
129-0100-002	M0J19C01A1000A0B	30	31.6 [1.93]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
129-0098-002	M0J08C01A1000A0B	13	12.9 [0.79]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
129-0096-002	M0J19A04D1000A0B	30	31.6 [1.93]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
129-0093-002	M0J05A04D1000A0B	8	8.2 [0.50]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
129-0090-002	M0J08A04A1000A0B	13	12.9 [0.79]	UN / UNF	9/16 - 18 UNF-2B SAE O-Ring port
129-0084-002	M0J19D05G3000A0B	30	31.6 [1.93]	Metric	M14 x 1.5-6H O-Ring port
129-0056-002	M0J19B02G3000A0B	30	31.6 [1.93]	Metric	M14 x 1.5-6H O-Ring port
129-0055-002	M0J12B02G3000A0B	20	19.8 [1.21]	Metric	M14 x 1.5-6H O-Ring port
129-0054-002	M0J08B02G3000B0B	13	12.9 [0.79]	Metric	M14 x 1.5-6H O-Ring port
129-0053-002	M0J05B02G3000A0B	8	8.2 [0.50]	Metric	M14 x 1.5-6H O-Ring port
129-0052-002	M0J19B06C3000A0B	30	31.6 [1.93]	Metric	M14 x 1.5-6H O-Ring port
129-0043-002	M0J12B02C3000A0B	20	19.8 [1.21]	Metric	M14 x 1.5-6H O-Ring port
129-0042-002	M0J08B02C3000A0B	13	12.9 [0.79]	Metric	M14 x 1.5-6H O-Ring port
129-0041-002	M0J05B02C3000A0B	8	8.2 [0.50]	Metric	M14 x 1.5-6H O-Ring port
129-0040-002	M0J19B06F2000A0B	30	31.6 [1.93]	BSP	G 1/4
129-0036-002	M0J19B06E2000A0B	30	31.6 [1.93]	BSP	G 3/8

Common to all listed parts

Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
