Danfoss orbital motor quick selector Parts

Danfoss

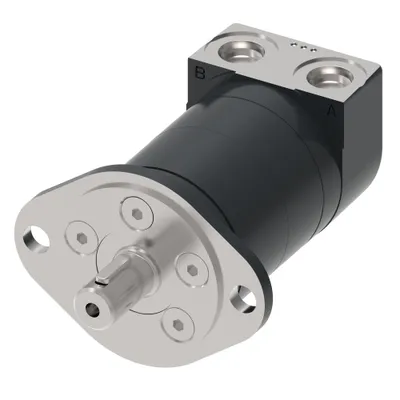

129-0545-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12C01D1000A0B

Danfoss

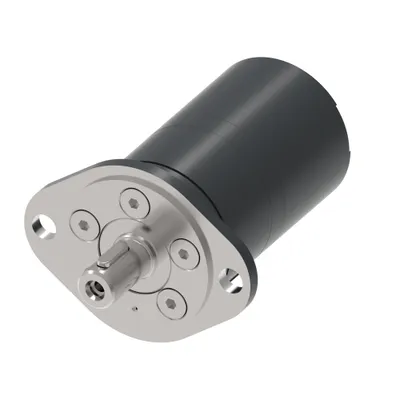

129-0543-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08C01A1001A0B

Danfoss

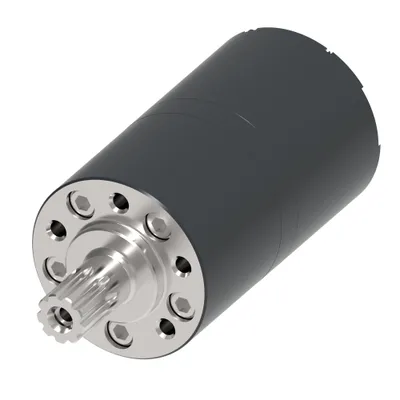

129-0537-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A100000B

Danfoss

129-0535-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01A100000B

Danfoss

129-0526-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02H2070A0B

Danfoss

129-0525-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02H2070A0B

Danfoss

129-0524-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02H2070A0B

Danfoss

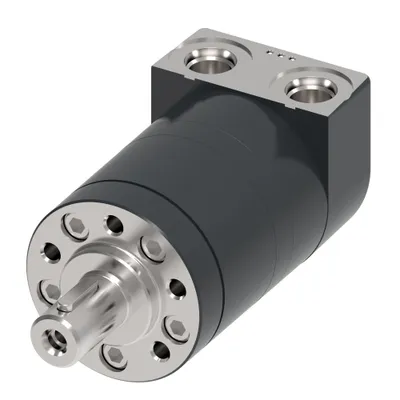

129-0523-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02E2070A0B

Danfoss

129-0522-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02E2070A0B

Danfoss

129-0521-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02E2070A0B

Danfoss

129-0520-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12C01D0000A0B

Danfoss

129-0519-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D107000B

Danfoss

129-0516-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02E007000B

Danfoss

129-0512-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B14A1000B0B

Danfoss

129-0511-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A02A1000A0B

Danfoss

129-0510-002

MOTOR-ORBITAL,J SERIES 30 (1.9), M0J19A01A1070A0B

Danfoss

129-0505-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30A01D100000B

Danfoss

129-0490-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02H200000B

Danfoss

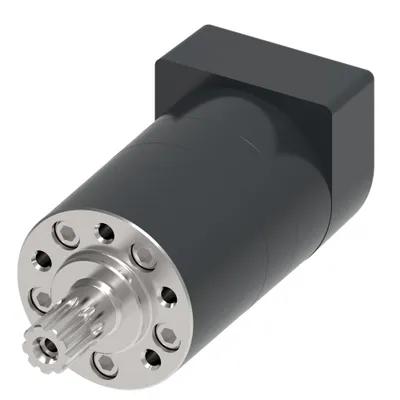

129-0489-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05B02H200000B

Danfoss

129-0488-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05B02E200000B

Danfoss

129-0483-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19D05E2000A0B

Danfoss

129-0470-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30A01D000000B

Danfoss

129-0467-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02H000000B

Danfoss

129-0464-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02B014000B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port dimension	Drain Port Dimension
129-0545-002	M0J12C01D1000A0B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0543-002	M0J08C01A1001A0B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0537-002	M0J12A01A100000B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0535-002	M0J19A01A100000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0526-002	M0J12B02H2070A0B	20	19.8 [1.21]	G 3/8	G 1/8
129-0525-002	M0J08B02H2070A0B	13	12.9 [0.79]	G 3/8	G 1/8
129-0524-002	M0J05B02H2070A0B	8	8.2 [0.50]	G 3/8	G 1/8
129-0523-002	M0J12B02E2070A0B	20	19.8 [1.21]	G 3/8	G 1/8
129-0522-002	M0J08B02E2070A0B	13	12.9 [0.79]	G 3/8	G 1/8
129-0521-002	M0J05B02E2070A0B	8	8.2 [0.50]	G 3/8	G 1/8
129-0520-002	M0J12C01D0000A0B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0519-002	M0J19A01D107000B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0516-002	M0J12B02E007000B	20	19.8 [1.21]	G 3/8	None
129-0512-002	M0J19B14A1000B0B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0511-002	M0J05A02A1000A0B	8	8.2 [0.50]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0510-002	M0J19A01A1070A0B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0505-002	M0J30A01D100000B	50	49.2 [3.00]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0490-002	M0J08B02H200000B	13	12.9 [0.79]	G 3/8	G 1/8
129-0489-002	M0J05B02H200000B	8	8.2 [0.50]	G 3/8	G 1/8
129-0488-002	M0J05B02E200000B	8	8.2 [0.50]	G 3/8	G 1/8
129-0483-002	M0J19D05E2000A0B	30	31.6 [1.93]	G 3/8	G 1/8
129-0470-002	M0J30A01D000000B	50	49.2 [3.00]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0467-002	M0J30B02H000000B	50	49.2 [3.00]	G 3/8	None
129-0464-002	M0J30B02B014000B	50	49.2 [3.00]	G 1/4	None

Common to all listed parts

Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Shaft type	Straight
Shaft Key	Square key
Brake Release Port Dimension	n/a
