Danfoss orbital motor quick selector Parts

Danfoss

129-0458-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30A01A000000B

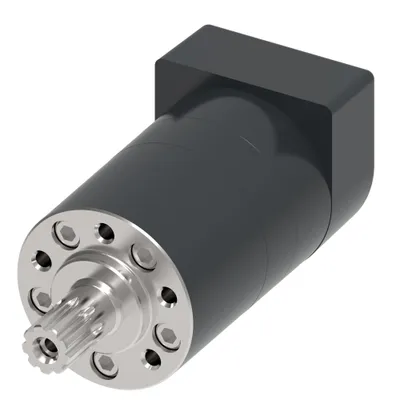

Danfoss

129-0456-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02H2000A0B

Danfoss

129-0455-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02E2000A0B

Danfoss

129-0453-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02E2070A0B

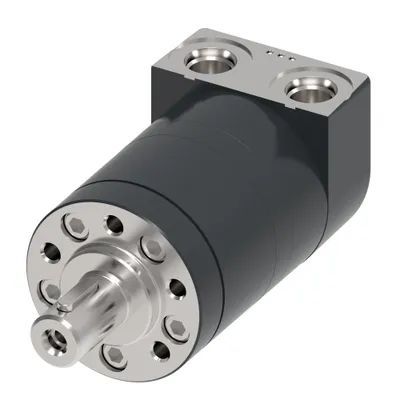

Danfoss

129-0452-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02E0000D0B

Danfoss

129-0437-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A23D1000B0B

Danfoss

129-0436-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A23D1000B0B

Danfoss

129-0428-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A0000A0B

Danfoss

129-0427-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A01A0000A0B

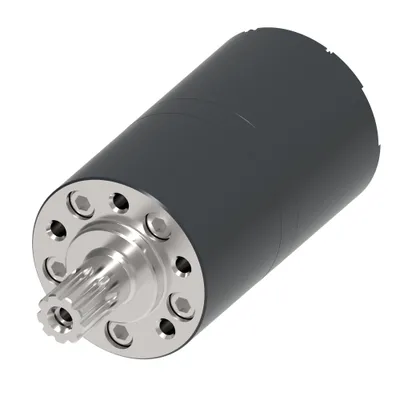

Danfoss

129-0422-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A23A1000B0B

Danfoss

129-0420-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B14E2000A0B

Danfoss

129-0418-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B14E2000A0B

Danfoss

129-0411-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30A01A1000A0B

Danfoss

129-0403-002

MOTOR-ORBITAL,J SERIES 50 [3.0], M0J30B02E000000B

Danfoss

129-0401-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D0000B0B

Danfoss

129-0378-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B05E000000B

Danfoss

129-0377-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B05E000000B

Danfoss

129-0376-002

MOTOR-ORBITAL,J SERIES 13 [0.8], M0J08B05E000000B

Danfoss

129-0375-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B05E000000B

Danfoss

129-0374-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02E000000B

Danfoss

129-0373-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02E000000B

Danfoss

129-0372-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02E000000B

Danfoss

129-0371-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02E000000B

Danfoss

129-0366-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02F000000B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port dimension	Drain Port Dimension
129-0458-002	M0J30A01A000000B	50	49.2 [3.00]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0456-002	M0J30B02H2000A0B	50	49.2 [3.00]	G 3/8	G 1/8
129-0455-002	M0J30B02E2000A0B	50	49.2 [3.00]	G 3/8	G 1/8
129-0453-002	M0J19B02E2070A0B	30	31.6 [1.93]	G 3/8	G 1/8
129-0452-002	M0J19B02E0000D0B	30	31.6 [1.93]	G 3/8	None
129-0437-002	M0J12A23D1000B0B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0436-002	M0J08A23D1000B0B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0428-002	M0J12A01A0000A0B	20	19.8 [1.21]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0427-002	M0J08A01A0000A0B	13	12.9 [0.79]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0422-002	M0J19A23A1000B0B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0420-002	M0J05B14E2000A0B	8	8.2 [0.50]	G 3/8	G 1/8
129-0418-002	M0J12B14E2000A0B	20	19.8 [1.21]	G 3/8	G 1/8
129-0411-002	M0J30A01A1000A0B	50	49.2 [3.00]	9/16 - 18 UNF-2B SAE O-Ring port	3/8 - 24 UNF-2B SAE O-Ring port
129-0403-002	M0J30B02E000000B	50	49.2 [3.00]	G 3/8	None
129-0401-002	M0J19A01D0000B0B	30	31.6 [1.93]	9/16 - 18 UNF-2B SAE O-Ring port	None
129-0378-002	M0J19B05E000000B	30	31.6 [1.93]	G 3/8	None
129-0377-002	M0J12B05E000000B	20	19.8 [1.21]	G 3/8	None
129-0376-002	M0J08B05E000000B	13	12.9 [0.79]	G 3/8	None
129-0375-002	M0J05B05E000000B	8	8.2 [0.50]	G 3/8	None
129-0374-002	M0J19B02E000000B	30	31.6 [1.93]	G 3/8	None
129-0373-002	M0J12B02E000000B	20	19.8 [1.21]	G 3/8	None
129-0372-002	M0J08B02E000000B	13	12.9 [0.79]	G 3/8	None
129-0371-002	M0J05B02E000000B	8	8.2 [0.50]	G 3/8	None
129-0366-002	M0J19B02F000000B	30	31.6 [1.93]	G 1/4	None

Common to all listed parts

Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Mounting flange type	5 Bolt - Round
Shaft type	Straight
Shaft Key	Square key
