Danfoss orbital motor quick selector Parts

Danfoss

129-0034-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B06E2000A0B

Danfoss

129-0032-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A06D1000A0B

Danfoss

129-0024-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02E2000A0B

Danfoss

129-0023-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02E2000A0B

Danfoss

129-0022-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02E2000A0B

Danfoss

129-0021-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02E2000A0B

Danfoss

129-0020-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01D1000A0B

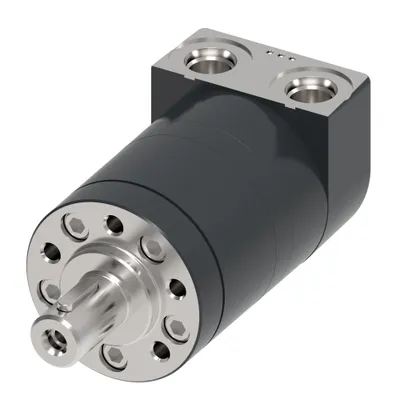

Danfoss

129-0019-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01D1000A0B

Danfoss

129-0018-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08A01D1000A0B

Danfoss

129-0017-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01D1000A0B

Danfoss

129-0015-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B06B2000A0B

Danfoss

129-0010-002

MOTOR-ORBITAL,J SERIES 15 [.8], M0J08A06A1000A0B

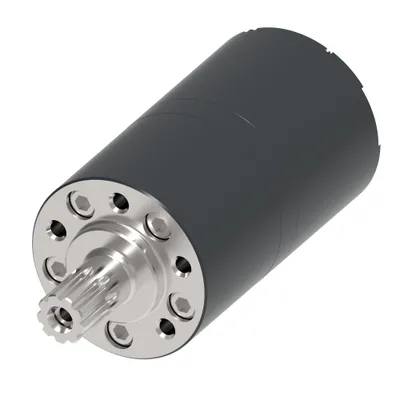

Danfoss

129-0009-002

MOTOR-ORBITAL,J SERIES 10 [.5], M0J05A06A1000A0B

Danfoss

129-0008-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19B02B2000A0B

Danfoss

129-0007-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12B02B2000A0B

Danfoss

129-0006-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08B02B2000A0B

Danfoss

129-0005-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05B02B2000A0B

Danfoss

129-0004-002

MOTOR-ORBITAL,J SERIES 30 [1.9], M0J19A01A1000A0B

Danfoss

129-0003-002

MOTOR-ORBITAL,J SERIES 20 [1.2], M0J12A01A1000A0B

Danfoss

129-0002-002

MOTOR-ORBITAL,J SERIES 15 [.79], M0J08A01A1000A0B

Danfoss

129-0001-002

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A1000A0B

Danfoss

12023033

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AV02AA110020A000C00B

Danfoss

12016459

MOTOR-ORBITAL,XLS SERIES 130 [8.0], MCS130AB02AA110020A000C00B

Danfoss

12016458

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AB02AA110020A000C00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port dimension
129-0034-002	M0J08B06E2000A0B	13	12.9 [0.79]	n/a	G 3/8
129-0032-002	M0J19A06D1000A0B	30	31.6 [1.93]	n/a	9/16 - 18 UNF-2B SAE O-Ring port
129-0024-002	M0J19B02E2000A0B	30	31.6 [1.93]	Square key	G 3/8
129-0023-002	M0J12B02E2000A0B	20	19.8 [1.21]	Square key	G 3/8
129-0022-002	M0J08B02E2000A0B	13	12.9 [0.79]	Square key	G 3/8
129-0021-002	M0J05B02E2000A0B	8	8.2 [0.50]	Square key	G 3/8
129-0020-002	M0J19A01D1000A0B	30	31.6 [1.93]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0019-002	M0J12A01D1000A0B	20	19.8 [1.21]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0018-002	M0J08A01D1000A0B	13	12.9 [0.79]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0017-002	M0J05A01D1000A0B	8	8.2 [0.50]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0015-002	M0J12B06B2000A0B	20	19.8 [1.21]	n/a	G 1/4
129-0010-002	M0J08A06A1000A0B	13	12.9 [0.79]	n/a	9/16 - 18 UNF-2B SAE O-Ring port
129-0009-002	M0J05A06A1000A0B	8	8.2 [0.50]	n/a	9/16 - 18 UNF-2B SAE O-Ring port
129-0008-002	M0J19B02B2000A0B	30	31.6 [1.93]	Square key	G 1/4
129-0007-002	M0J12B02B2000A0B	20	19.8 [1.21]	Square key	G 1/4
129-0006-002	M0J08B02B2000A0B	13	12.9 [0.79]	Square key	G 1/4
129-0005-002	M0J05B02B2000A0B	8	8.2 [0.50]	Square key	G 1/4
129-0004-002	M0J19A01A1000A0B	30	31.6 [1.93]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0003-002	M0J12A01A1000A0B	20	19.8 [1.21]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0002-002	M0J08A01A1000A0B	13	12.9 [0.79]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
129-0001-002	M0J05A01A1000A0B	8	8.2 [0.50]	Square key	9/16 - 18 UNF-2B SAE O-Ring port
12023033	MCS160AV02AA110020A000C00B	160	157.7 [9.62]	Rectangular key, A8 x 7 x 32 mm	G 1/2, 4 x M8 block mounting threads
12016459	MCS130AB02AA110020A000C00B	130	130.5 [7.96]	Rectangular key, A8 x 7 x 32 mm	G 1/2, 4 x M8 block mounting threads
12016458	MCS100AB02AA110020A000C00B	100	101.3 [6.18]	Rectangular key, A8 x 7 x 32 mm	G 1/2, 4 x M8 block mounting threads

Common to all listed parts

Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
Dust seal	Standard
