Danfoss 129-0291-002

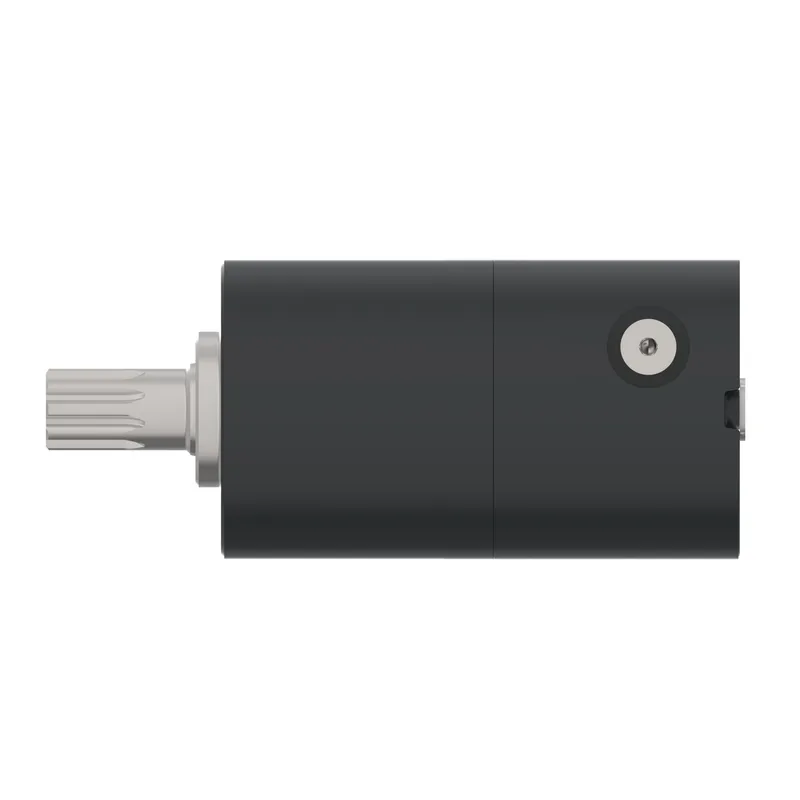

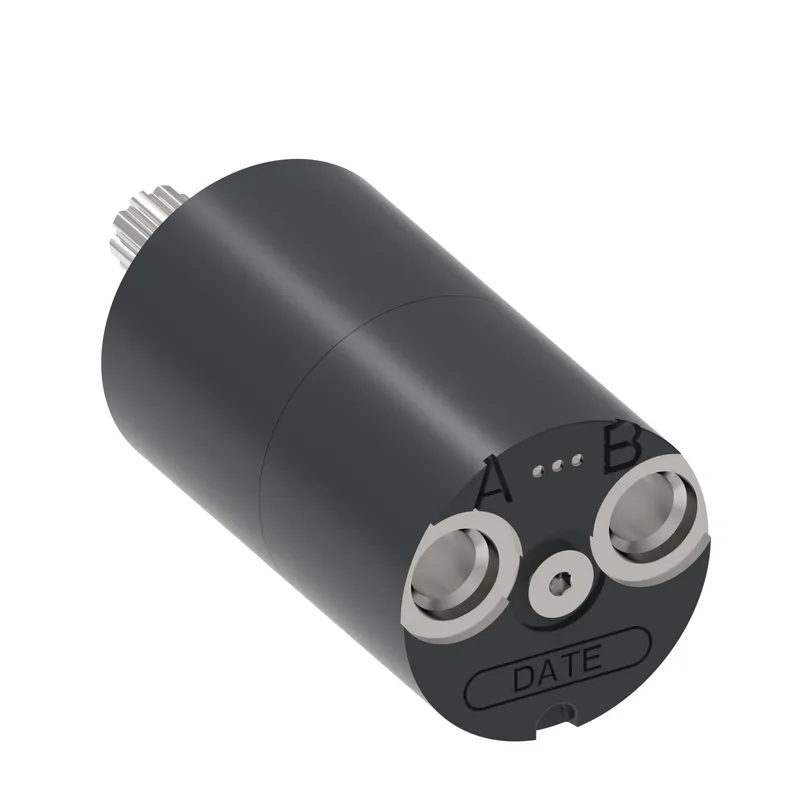

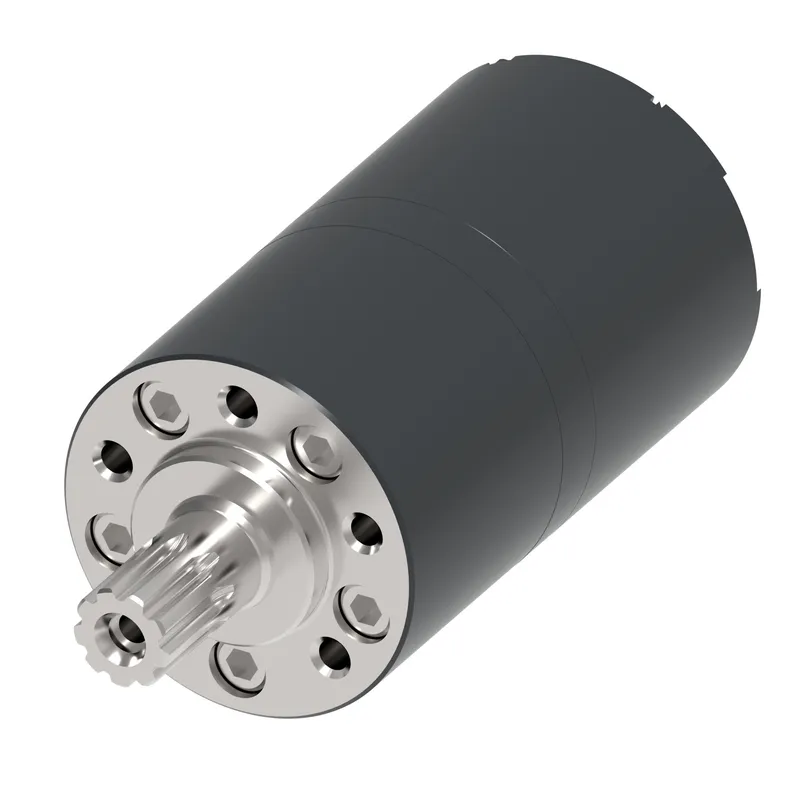

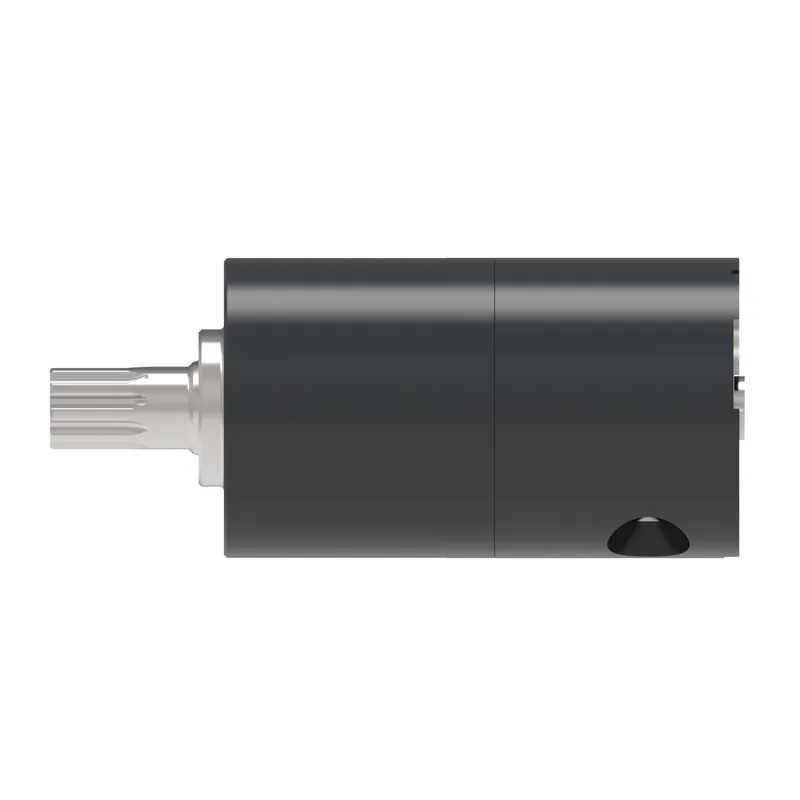

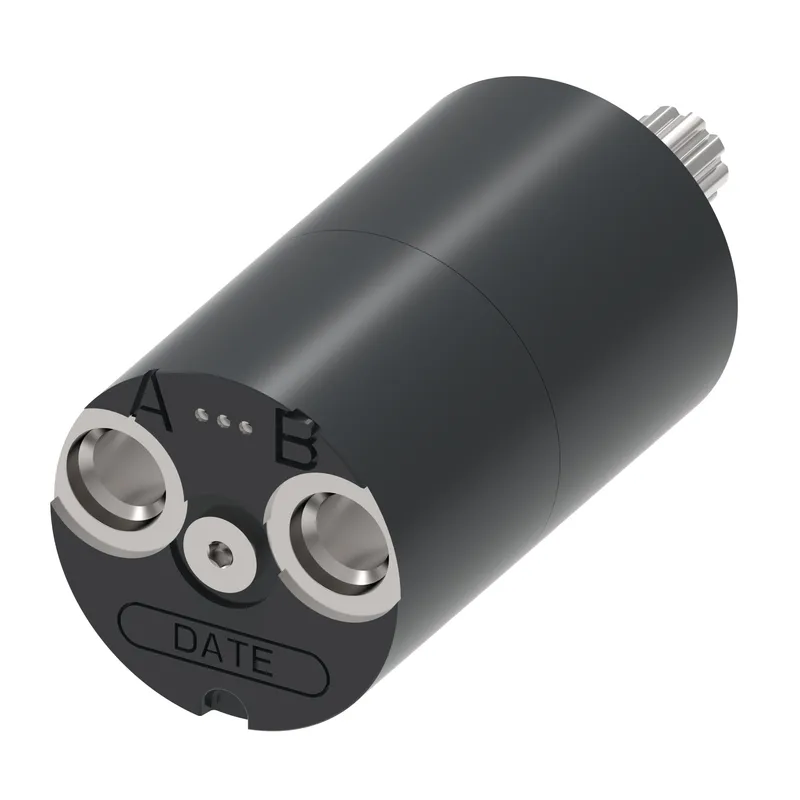

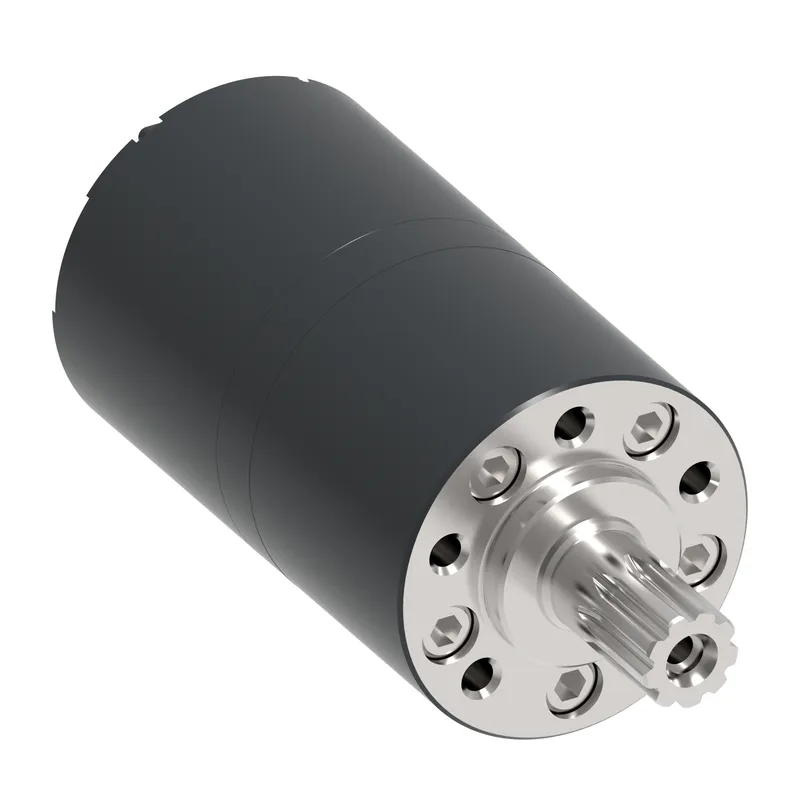

MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A000000B

MPN: 129-0291-002
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 129-0291-002?

Danfoss MOTOR-ORBITAL,J SERIES 10 [.50], M0J05A01A000000B, manufacturer part number 129-0291-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M0J05A01A000000B
Motor Series	J Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor size	8
Geometric displacement [cm3/r [in3/r]]	8.2 [0.50]
Motor type	Standard
Motor function	Standard
Mounting flange type	5 Bolt - Round
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	31.5 x 5.1, 45.0, 1/4 - 28 UNF [1.24 x 0.20, 1.77, 1/4 - 28 UNF]
Shaft type	Straight
Shaft dimension	Dia. 5/8 inch, 1/4 - 28 UNF-2B thread in shaft end
Shaft Key	Square key
Main port thread type	UN / UNF
Main port style	Endport - aligned
Main port dimension	9/16 - 18 UNF-2B SAE O-Ring port
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	No data available
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
