Danfoss orbital motor quick selector Parts

Danfoss

629AG00621A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AJ02ZE0100010000000ABAAB

Danfoss

629AG00620A

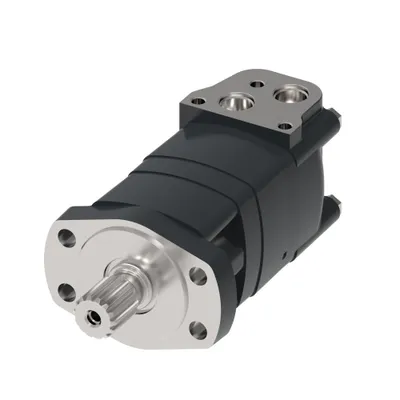

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AJ02ZE0100010000000ABAAB

Danfoss

629AG00619A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AJ02ZE0100010000000ABAAB

Danfoss

629AG00618A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC35ZC9200010000000ABAAB

Danfoss

629AG00617A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AG9400010000800AAAAB

Danfoss

629AG00616A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AH16AG9400010000800AAAAB

Danfoss

629AG00615A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH04AG0200013000000ABAAB

Danfoss

629AG00614A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AF02ZC9200010000000ABAAB

Danfoss

629AG00613A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AF02ZC9200010000000ABAAB

Danfoss

629AG00612A

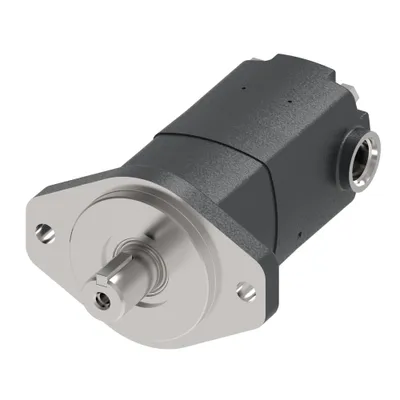

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AF02ZC9200010000000ABAAB

Danfoss

629AG00611A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AJ04ZE0100010000000ABAAB

Danfoss

629AG00610A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AJ04ZE0100010000000ABAAB

Danfoss

629AG00609A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AJ04ZE0100010000000ABAAB

Danfoss

629AG00608A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AJ04ZE0100010000000ABAAB

Danfoss

629AG00607A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AJ04ZE0100010000000ABAAB

Danfoss

629AG00606A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AJ04ZE0100010000000ABAAB

Danfoss

629AG00605A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC04ZE0100010000000ABAAB

Danfoss

629AG00604A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC04ZE0100010000000ABAAB

Danfoss

629AG00603A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC04ZE0100010000000ABAAB

Danfoss

629AG00602A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC04ZE0100010000000ABAAB

Danfoss

629AG00601A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC04ZE0100010000000ABAAB

Danfoss

629AG00600A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC04ZE0100010000000ABAAB

Danfoss

629AG00599A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC02ZE0100010000000ABAAB

Danfoss

629AG00598A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC02ZE0100010000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
629AG00621A	MC2130AJ02ZE0100010000000ABAAB	130	130.5 [7.96]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00620A	MC2100AJ02ZE0100010000000ABAAB	100	101.3 [6.18]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00619A	MC2080AJ02ZE0100010000000ABAAB	80	80.1 [4.89]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00618A	MC2195AC35ZC9200010000000ABAAB	195	194.5 [11.87]	2 Bolt - A	n/a
629AG00617A	MC2305AH16AG9400010000800AAAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00616A	MC2100AH16AG9400010000800AAAAB	100	101.3 [6.18]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00615A	MC2195AH04AG0200013000000ABAAB	195	194.5 [11.87]	4 Bolt - Square	n/a
629AG00614A	MC2305AF02ZC9200010000000ABAAB	305	305.7 [18.65]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
629AG00613A	MC2245AF02ZC9200010000000ABAAB	245	243.9 [14.88]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
629AG00612A	MC2195AF02ZC9200010000000ABAAB	195	194.5 [11.87]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
629AG00611A	MC2490AJ04ZE0100010000000ABAAB	490	487.8 [29.77]	4 Bolt - Magneto	n/a
629AG00610A	MC2395AJ04ZE0100010000000ABAAB	395	393.0 [23.98]	4 Bolt - Magneto	n/a
629AG00609A	MC2160AJ04ZE0100010000000ABAAB	160	157.7 [9.62]	4 Bolt - Magneto	n/a
629AG00608A	MC2130AJ04ZE0100010000000ABAAB	130	130.5 [7.96]	4 Bolt - Magneto	n/a
629AG00607A	MC2100AJ04ZE0100010000000ABAAB	100	101.3 [6.18]	4 Bolt - Magneto	n/a
629AG00606A	MC2080AJ04ZE0100010000000ABAAB	80	80.1 [4.89]	4 Bolt - Magneto	n/a
629AG00605A	MC2490AC04ZE0100010000000ABAAB	490	487.8 [29.77]	2 Bolt - A	n/a
629AG00604A	MC2305AC04ZE0100010000000ABAAB	305	305.7 [18.65]	2 Bolt - A	n/a
629AG00603A	MC2195AC04ZE0100010000000ABAAB	195	194.5 [11.87]	2 Bolt - A	n/a
629AG00602A	MC2130AC04ZE0100010000000ABAAB	130	130.5 [7.96]	2 Bolt - A	n/a
629AG00601A	MC2100AC04ZE0100010000000ABAAB	100	101.3 [6.18]	2 Bolt - A	n/a
629AG00600A	MC2080AC04ZE0100010000000ABAAB	80	80.1 [4.89]	2 Bolt - A	n/a
629AG00599A	MC2490AC02ZE0100010000000ABAAB	490	487.8 [29.77]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00598A	MC2245AC02ZE0100010000000ABAAB	245	243.9 [14.88]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
Dust seal	Standard
