Danfoss orbital motor quick selector Parts

Danfoss

629AG00571A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395ZD16AS02000130052ABABAAB

Danfoss

629AG00570A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305ZD16AS02000130052ABABAAB

Danfoss

629AG00569A

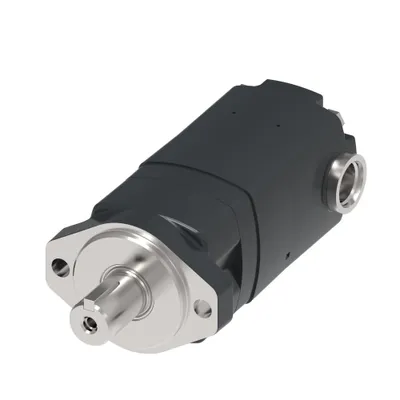

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245ZD16AS02000130052ABABAAB

Danfoss

629AG00568A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195ZD16AS02000130052ABABAAB

Danfoss

629AG00567A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160ZD16AS02000130052ABABAAB

Danfoss

629AG00566A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AG0200013000300ABAAB

Danfoss

629AG00565A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AG0200010000300ABAAB

Danfoss

629AG00564A

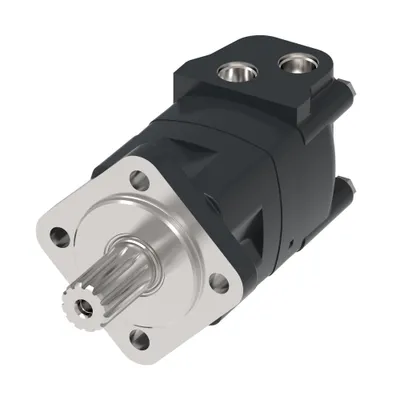

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH16AG0200010000300ABAAB

Danfoss

629AG00563A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AS04AA0100010000000ABAAB

Danfoss

629AG00562A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC04ZE0100010000000ABAAB

Danfoss

629AG00561A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC04ZE0100010000000ABAAB

Danfoss

629AG00560A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC04ZE0100010000000ABAAB

Danfoss

629AG00559A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC01ZE0100010000000ABAAB

Danfoss

629AG00558A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC01ZE0100010000000ABAAB

Danfoss

629AG00557A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC01ZE0100010000000ABAAB

Danfoss

629AG00556A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC01ZE0100010000000ABAAB

Danfoss

629AG00555A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC02ZE0100010000000ABAAB

Danfoss

629AG00554A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC02ZE0100010000000ABAAB

Danfoss

629AG00553A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC02ZE0100010000000ABAAB

Danfoss

629AG00552A

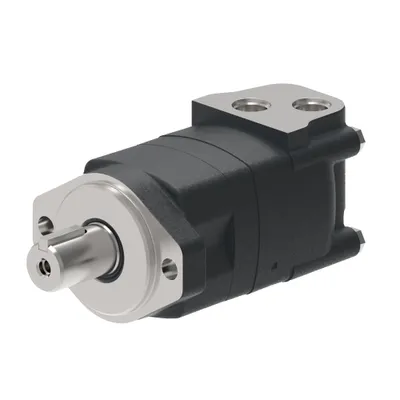

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC02ZE0100010000000ABAAB

Danfoss

629AG00551A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC02ZE0100010000000ABAAB

Danfoss

629AG00550A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC02ZE0100010000000ABAAB

Danfoss

629AG00549A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC02ZE0100010000000ABAAB

Danfoss

629AG00548A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC98AG0200013000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
629AG00571A	MC2395ZD16AS02000130052ABABAAB	395	393.0 [23.98]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00570A	MC2305ZD16AS02000130052ABABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00569A	MC2245ZD16AS02000130052ABABAAB	245	243.9 [14.88]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00568A	MC2195ZD16AS02000130052ABABAAB	195	194.5 [11.87]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00567A	MC2160ZD16AS02000130052ABABAAB	160	157.7 [9.62]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00566A	MC2305AH16AG0200013000300ABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00565A	MC2305AH16AG0200010000300ABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00564A	MC2160AH16AG0200010000300ABAAB	160	157.7 [9.62]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00563A	MC2395AS04AA0100010000000ABAAB	395	393.0 [23.98]	4 Bolt - Square	n/a
629AG00562A	MC2395AC04ZE0100010000000ABAAB	395	393.0 [23.98]	2 Bolt - A	n/a
629AG00561A	MC2245AC04ZE0100010000000ABAAB	245	243.9 [14.88]	2 Bolt - A	n/a
629AG00560A	MC2160AC04ZE0100010000000ABAAB	160	157.7 [9.62]	2 Bolt - A	n/a
629AG00559A	MC2305AC01ZE0100010000000ABAAB	305	305.7 [18.65]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00558A	MC2195AC01ZE0100010000000ABAAB	195	194.5 [11.87]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00557A	MC2100AC01ZE0100010000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00556A	MC2080AC01ZE0100010000000ABAAB	80	80.1 [4.89]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00555A	MC2395AC02ZE0100010000000ABAAB	395	393.0 [23.98]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00554A	MC2305AC02ZE0100010000000ABAAB	305	305.7 [18.65]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00553A	MC2195AC02ZE0100010000000ABAAB	195	194.5 [11.87]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00552A	MC2160AC02ZE0100010000000ABAAB	160	157.7 [9.62]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00551A	MC2130AC02ZE0100010000000ABAAB	130	130.5 [7.96]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00550A	MC2100AC02ZE0100010000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00549A	MC2080AC02ZE0100010000000ABAAB	80	80.1 [4.89]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00548A	MC2100AC98AG0200013000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
