Danfoss orbital motor quick selector Parts

Danfoss

629AG00674A

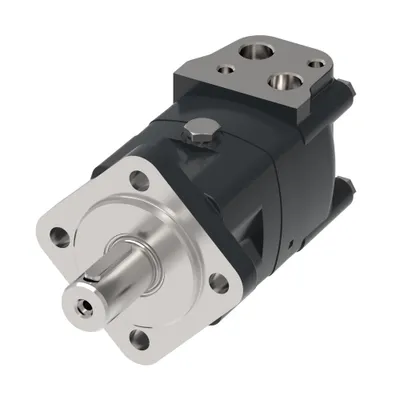

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AY16AS0200013005200ABAAB

Danfoss

629AG00672A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AH04AG0200010000000ABAAB

Danfoss

629AG00671A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH04AG0200010000000ABAAB

Danfoss

629AG00669A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC04AA0100010000000ABADB

Danfoss

629AG00668A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC04AA0100010000000ABADB

Danfoss

629AG00667A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC01AA0100010AH0000ABAAB

Danfoss

629AG00666A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC05ZE0100010000000ABAAB

Danfoss

629AG00665A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC05ZE0100010000000ABAAB

Danfoss

629AG00664A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AJ01ZE0100010000000ABAAB

Danfoss

629AG00663A

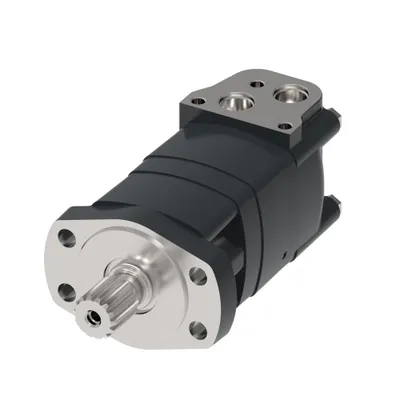

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AJ01ZE0100010000000ABAAB

Danfoss

629AG00662A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AJ01ZE0100010000000ABAAB

Danfoss

629AG00661A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ01ZE0100010000000ABAAB

Danfoss

629AG00660A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ01ZE0100010000000ABAAB

Danfoss

629AG00659A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AJ01ZE0100010000000ABAAB

Danfoss

629AG00658A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AJ01ZE0100010000000ABAAB

Danfoss

629AG00657A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AJ01ZE0100010000000ABAAB

Danfoss

629AG00656A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AJ01ZE0100010000000ABAAB

Danfoss

629AG00655A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH16AG9400010000800ABAAB

Danfoss

629AG00654A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AG9400010000800ABAAB

Danfoss

629AG00653A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG9400010000800ABAAB

Danfoss

629AG00652A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH16AG9400010000800ABAAB

Danfoss

629AG00651A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH41AS02000130051ABABAAB

Danfoss

629AG00650A

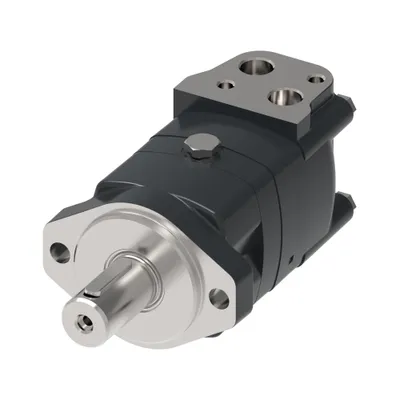

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC35AS02000100000ABAAAAB

Danfoss

629AG00649A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH02AG0200030000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
629AG00674A	MC2245AY16AS0200013005200ABAAB	245	243.9 [14.88]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00672A	MC2395AH04AG0200010000000ABAAB	395	393.0 [23.98]	4 Bolt - Square	n/a
629AG00671A	MC2245AH04AG0200010000000ABAAB	245	243.9 [14.88]	4 Bolt - Square	n/a
629AG00669A	MC2490AC04AA0100010000000ABADB	490	487.8 [29.77]	2 Bolt - A	n/a
629AG00668A	MC2395AC04AA0100010000000ABADB	395	393.0 [23.98]	2 Bolt - A	n/a
629AG00667A	MC2130AC01AA0100010AH0000ABAAB	130	130.5 [7.96]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00666A	MC2395AC05ZE0100010000000ABAAB	395	393.0 [23.98]	2 Bolt - A	n/a
629AG00665A	MC2195AC05ZE0100010000000ABAAB	195	194.5 [11.87]	2 Bolt - A	n/a
629AG00664A	MC2490AJ01ZE0100010000000ABAAB	490	487.8 [29.77]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00663A	MC2395AJ01ZE0100010000000ABAAB	395	393.0 [23.98]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00662A	MC2305AJ01ZE0100010000000ABAAB	305	305.7 [18.65]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00661A	MC2245AJ01ZE0100010000000ABAAB	245	243.9 [14.88]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00660A	MC2195AJ01ZE0100010000000ABAAB	195	194.5 [11.87]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00659A	MC2160AJ01ZE0100010000000ABAAB	160	157.7 [9.62]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00658A	MC2130AJ01ZE0100010000000ABAAB	130	130.5 [7.96]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00657A	MC2100AJ01ZE0100010000000ABAAB	100	101.3 [6.18]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00656A	MC2080AJ01ZE0100010000000ABAAB	80	80.1 [4.89]	4 Bolt - Magneto	Square key, 1/4 x 1 1/4 inch
629AG00655A	MC2305AH16AG9400010000800ABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00654A	MC2245AH16AG9400010000800ABAAB	245	243.9 [14.88]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00653A	MC2195AH16AG9400010000800ABAAB	195	194.5 [11.87]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00652A	MC2160AH16AG9400010000800ABAAB	160	157.7 [9.62]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00651A	MC2245AH41AS02000130051ABABAAB	245	243.9 [14.88]	4 Bolt - Square	Square key, 6 x 20 mm
629AG00650A	MC2100AC35AS02000100000ABAAAAB	100	101.3 [6.18]	2 Bolt - A	n/a
629AG00649A	MC2160AH02AG0200030000000ABAAB	160	157.7 [9.62]	4 Bolt - Square	Square key, 5/16 x 1 1/4 inch

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
Dust seal	Standard
