Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Showing 337–360 of 11,614 parts
Danfoss 629AG00597A – MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC01ZE0100010000000ABAAB
Danfoss
629AG00597A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AC01ZE0100010000000ABAAB

Danfoss 629AG00596A – MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC01ZE0100010000000ABAAB
Danfoss
629AG00596A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AC01ZE0100010000000ABAAB

Danfoss 629AG00595A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC01ZE0100010000000ABAAB
Danfoss
629AG00595A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC01ZE0100010000000ABAAB

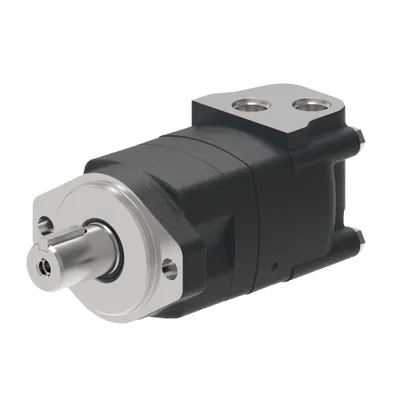

Danfoss 629AG00594A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC01ZE0100010000000ABAAB
Danfoss
629AG00594A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC01ZE0100010000000ABAAB

Danfoss 629AG00593A – MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC01ZE0100010000000ABAAB
Danfoss
629AG00593A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC01ZE0100010000000ABAAB

Danfoss 629AG00592A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AS0200014000000ABAAB
Danfoss
629AG00592A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AS0200014000000ABAAB

Danfoss 629AG00591A – MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AH16AS0200014000000ABAAB
Danfoss
629AG00591A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AH16AS0200014000000ABAAB

Danfoss 629AG00590A – MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AH16AS0200014000000ABAAB
Danfoss
629AG00590A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AH16AS0200014000000ABAAB

Danfoss 629AG00589A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AH16AS0200014000000ABAAB
Danfoss
629AG00589A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AH16AS0200014000000ABAAB

Danfoss 629AG00587A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC02ZC9200010000000ABAAB
Danfoss
629AG00587A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC02ZC9200010000000ABAAB

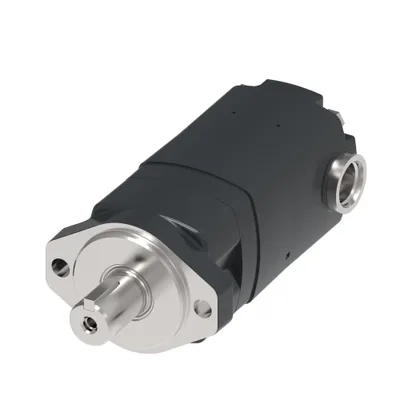

Danfoss 629AG00586A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC35ZC9200010000000ABAAB
Danfoss
629AG00586A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC35ZC9200010000000ABAAB

Danfoss 629AG00585A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC01ZC9200010000000ABAAB
Danfoss
629AG00585A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC01ZC9200010000000ABAAB

Danfoss 629AG00584A – MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC01ZC9200010000000ABAAB
Danfoss
629AG00584A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC01ZC9200010000000ABAAB

Danfoss 629AG00583A – MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC01ZC9200010000000ABAAB
Danfoss
629AG00583A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC01ZC9200010000000ABAAB

Danfoss 629AG00582A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC05ZC9200010000000ABAAB
Danfoss
629AG00582A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC05ZC9200010000000ABAAB

Danfoss 629AG00581A – MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AJ04ZE0100010000000ABAAB
Danfoss
629AG00581A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AJ04ZE0100010000000ABAAB

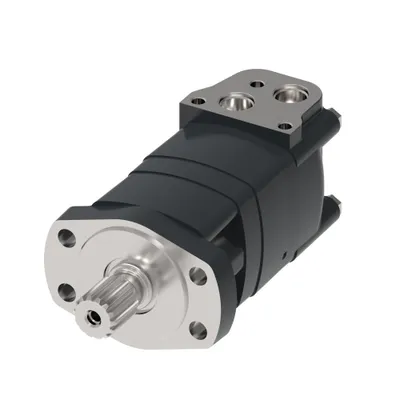

Danfoss 629AG00580A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ04ZE0100010000000ABAAB
Danfoss
629AG00580A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ04ZE0100010000000ABAAB

Danfoss 629AG00579A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ04ZE0100010000000ABAAB
Danfoss
629AG00579A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ04ZE0100010000000ABAAB

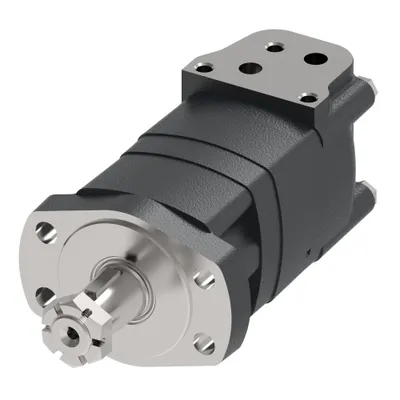

Danfoss 629AG00577A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ97AE0100010000000ABAAB
Danfoss
629AG00577A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ97AE0100010000000ABAAB

Danfoss 629AG00576A – MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AG9400010000800AAAAB
Danfoss
629AG00576A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH16AG9400010000800AAAAB

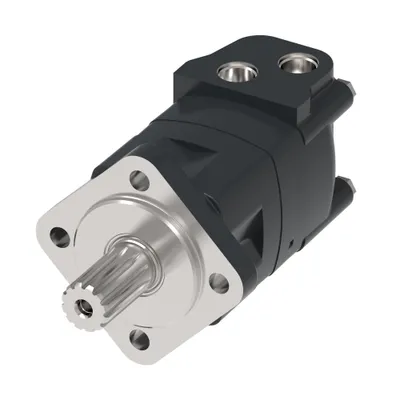

Danfoss 629AG00575A – MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG9400010000800AAAAB
Danfoss
629AG00575A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AH16AG9400010000800AAAAB

Danfoss 629AG00574A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH16AG9400010000800AAAAB
Danfoss
629AG00574A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AH16AG9400010000800AAAAB

Danfoss 629AG00573A – MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AJ97AE0100010000000ABAAB
Danfoss
629AG00573A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AJ97AE0100010000000ABAAB

Danfoss 629AG00572A – MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490ZD16AS02000130052ABABAAB
Danfoss
629AG00572A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490ZD16AS02000130052ABABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Shaft KeySeal Kit
629AG00597AMC2490AC01ZE0100010000000ABAAB490487.8 [29.77]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00596AMC2395AC01ZE0100010000000ABAAB395393.0 [23.98]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00595AMC2245AC01ZE0100010000000ABAAB245243.9 [14.88]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00594AMC2160AC01ZE0100010000000ABAAB160157.7 [9.62]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00593AMC2130AC01ZE0100010000000ABAAB130130.5 [7.96]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00592AMC2195AH16AS0200014000000ABAAB195194.5 [11.87]Rectangular key, 10 x 8 x 45 mmZ331-60
629AG00591AMC2130AH16AS0200014000000ABAAB130130.5 [7.96]Rectangular key, 10 x 8 x 45 mmZ331-60
629AG00590AMC2100AH16AS0200014000000ABAAB100101.3 [6.18]Rectangular key, 10 x 8 x 45 mmZ331-60
629AG00589AMC2080AH16AS0200014000000ABAAB8080.1 [4.89]Rectangular key, 10 x 8 x 45 mmZ331-61
629AG00587AMC2245AC02ZC9200010000000ABAAB245243.9 [14.88]Square key, 5/16 x 1 1/4 inchZ331-02
629AG00586AMC2080AC35ZC9200010000000ABAAB8080.1 [4.89]n/aZ331-02
629AG00585AMC2245AC01ZC9200010000000ABAAB245243.9 [14.88]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00584AMC2130AC01ZC9200010000000ABAAB130130.5 [7.96]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00583AMC2080AC01ZC9200010000000ABAAB8080.1 [4.89]Square key, 1/4 x 1 1/4 inchZ331-02
629AG00582AMC2160AC05ZC9200010000000ABAAB160157.7 [9.62]n/aZ331-02
629AG00581AMC2305AJ04ZE0100010000000ABAAB305305.7 [18.65]n/aZ331-02
629AG00580AMC2245AJ04ZE0100010000000ABAAB245243.9 [14.88]n/aZ331-02
629AG00579AMC2195AJ04ZE0100010000000ABAAB195194.5 [11.87]n/aZ331-02
629AG00577AMC2195AJ97AE0100010000000ABAAB195194.5 [11.87]n/aZ331-02
629AG00576AMC2245AH16AG9400010000800AAAAB245243.9 [14.88]Rectangular key, 10 x 8 x 45 mmZ331-02
629AG00575AMC2195AH16AG9400010000800AAAAB195194.5 [11.87]Rectangular key, 10 x 8 x 45 mmZ331-02
629AG00574AMC2160AH16AG9400010000800AAAAB160157.7 [9.62]Rectangular key, 10 x 8 x 45 mmZ331-02
629AG00573AMC2160AJ97AE0100010000000ABAAB160157.7 [9.62]n/aZ331-02
629AG00572AMC2490ZD16AS02000130052ABABAAB490487.8 [29.77]Rectangular key, 10 x 8 x 45 mmZ331-51

Common to all listed parts

Motor SeriesXL2 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor typeStandard
Brake Release Port Dimensionn/a
PaintedYes
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
