Danfoss orbital motor quick selector Parts

Danfoss

629AG00648A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AJ04AG0200010000000ABAAB

Danfoss

629AG00647A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AH04AA0100010000000ABAAB

Danfoss

629AG00646A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AH02AG0200010AH0000ABAAB

Danfoss

629AG00645A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AC02AG0200010AH0000ABAAB

Danfoss

629AG00644A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AC02AG0200010AH0000ABAAB

Danfoss

629AG00643A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AC02AG0200010AH0000ABAAB

Danfoss

629AG00642A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC02AG0200010AH0000ABAAB

Danfoss

629AG00641A

MOTOR-ORBITAL,XL2 SERIES 130 [7.97], MC2130AC02AG0200010AH0000ABAAB

Danfoss

629AG00638A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AC04AG0200013000000ABAAB

Danfoss

629AG00637A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC01AA0100013000000ABAAB

Danfoss

629AG00636A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AY16AG0200013005200ABAAB

Danfoss

629AG00635A

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AY16AG0200013005200ABAAB

Danfoss

629AG00634A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC01ZC9200010000000ABAAB

Danfoss

629AG00632A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AC01AA0100013000000AAAAB

Danfoss

629AG00631A

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080AC01AA0100013000000AAAAB

Danfoss

629AG00630A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AH04AA0100010000000ABAAB

Danfoss

629AG00629A

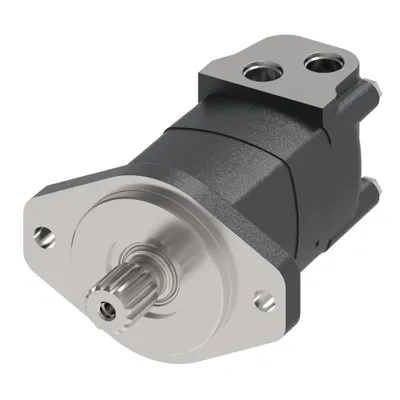

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AF95AA0100013000000ABAAB

Danfoss

629AG00628A

MOTOR-ORBITAL,XL2 SERIES 100 [6.2], MC2100AH95AA0100013000000ABAAB

Danfoss

629AG00627A

MOTOR-ORBITAL,XL2 SERIES 490 [29.84], MC2490AJ02ZE0100010000000ABAAB

Danfoss

629AG00626A

MOTOR-ORBITAL,XL2 SERIES 395 [24.03], MC2395AJ02ZE0100010000000ABAAB

Danfoss

629AG00625A

MOTOR-ORBITAL,XL2 SERIES 305 [18.71], MC2305AJ02ZE0100010000000ABAAB

Danfoss

629AG00624A

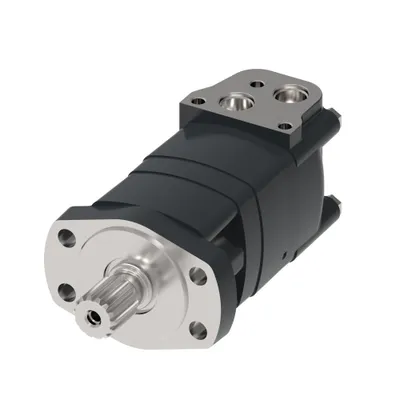

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AJ02ZE0100010000000ABAAB

Danfoss

629AG00623A

MOTOR-ORBITAL,XL2 SERIES 195 [11.89], MC2195AJ02ZE0100010000000ABAAB

Danfoss

629AG00622A

MOTOR-ORBITAL,XL2 SERIES 160 [9.65], MC2160AJ02ZE0100010000000ABAAB

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
629AG00648A	MC2100AJ04AG0200010000000ABAAB	100	101.3 [6.18]	4 Bolt - Magneto	n/a
629AG00647A	MC2245AH04AA0100010000000ABAAB	245	243.9 [14.88]	4 Bolt - Square	n/a
629AG00646A	MC2305AH02AG0200010AH0000ABAAB	305	305.7 [18.65]	4 Bolt - Square	Square key, 5/16 x 1 1/4 inch
629AG00645A	MC2305AC02AG0200010AH0000ABAAB	305	305.7 [18.65]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00644A	MC2245AC02AG0200010AH0000ABAAB	245	243.9 [14.88]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00643A	MC2195AC02AG0200010AH0000ABAAB	195	194.5 [11.87]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00642A	MC2160AC02AG0200010AH0000ABAAB	160	157.7 [9.62]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00641A	MC2130AC02AG0200010AH0000ABAAB	130	130.5 [7.96]	2 Bolt - A	Square key, 5/16 x 1 1/4 inch
629AG00638A	MC2160AC04AG0200013000000ABAAB	160	157.7 [9.62]	2 Bolt - A	n/a
629AG00637A	MC2100AC01AA0100013000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00636A	MC2305AY16AG0200013005200ABAAB	305	305.7 [18.65]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00635A	MC2245AY16AG0200013005200ABAAB	245	243.9 [14.88]	4 Bolt - Square	Rectangular key, 10 x 8 x 45 mm
629AG00634A	MC2100AC01ZC9200010000000ABAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00632A	MC2100AC01AA0100013000000AAAAB	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00631A	MC2080AC01AA0100013000000AAAAB	80	80.1 [4.89]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
629AG00630A	MC2490AH04AA0100010000000ABAAB	490	487.8 [29.77]	4 Bolt - Square	n/a
629AG00629A	MC2100AF95AA0100013000000ABAAB	100	101.3 [6.18]	2 Bolt - B	Square key, 5/16 x 1 inch
629AG00628A	MC2100AH95AA0100013000000ABAAB	100	101.3 [6.18]	4 Bolt - Square	Square key, 5/16 x 1 inch
629AG00627A	MC2490AJ02ZE0100010000000ABAAB	490	487.8 [29.77]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00626A	MC2395AJ02ZE0100010000000ABAAB	395	393.0 [23.98]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00625A	MC2305AJ02ZE0100010000000ABAAB	305	305.7 [18.65]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00624A	MC2245AJ02ZE0100010000000ABAAB	245	243.9 [14.88]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00623A	MC2195AJ02ZE0100010000000ABAAB	195	194.5 [11.87]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
629AG00622A	MC2160AJ02ZE0100010000000ABAAB	160	157.7 [9.62]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch

Common to all listed parts

Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
