Danfoss 629AG00613A

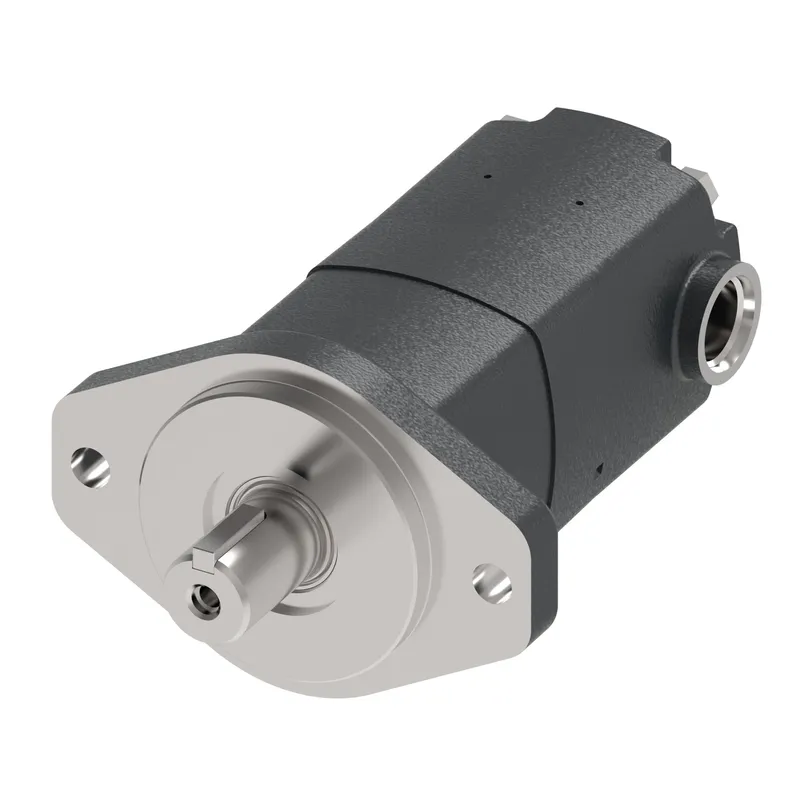

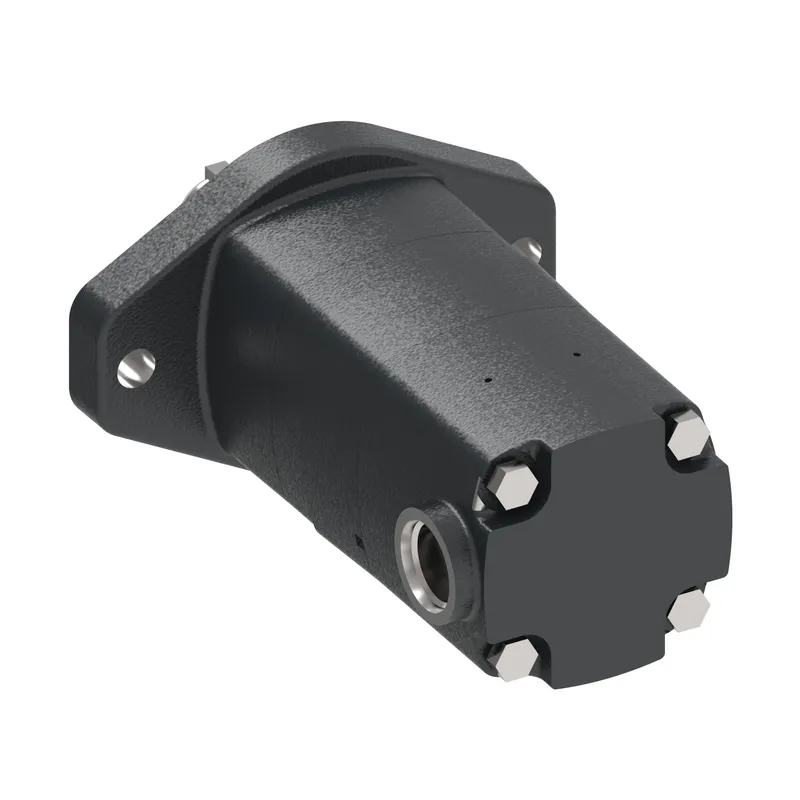

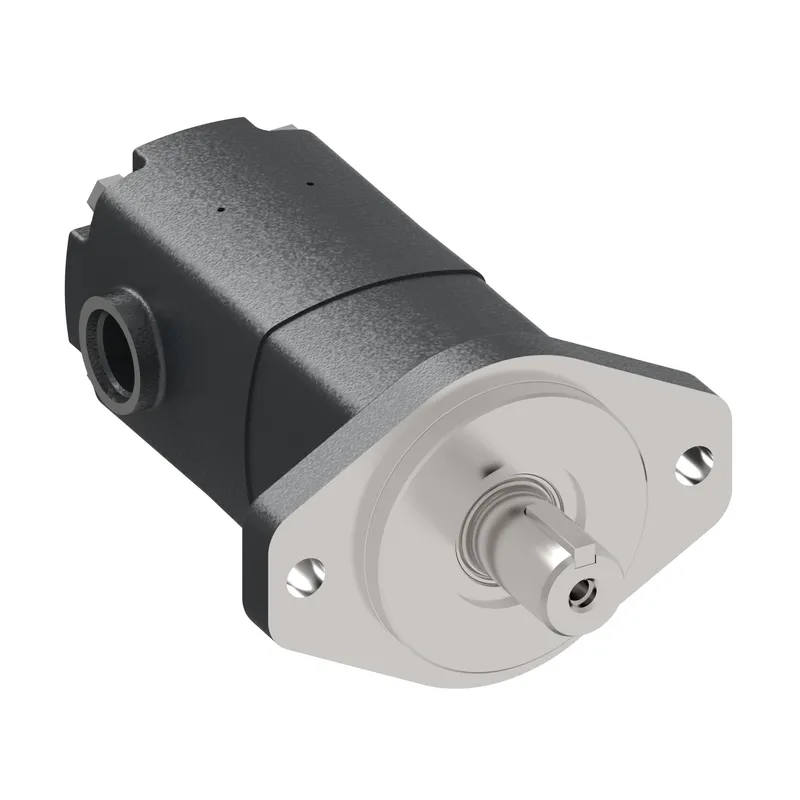

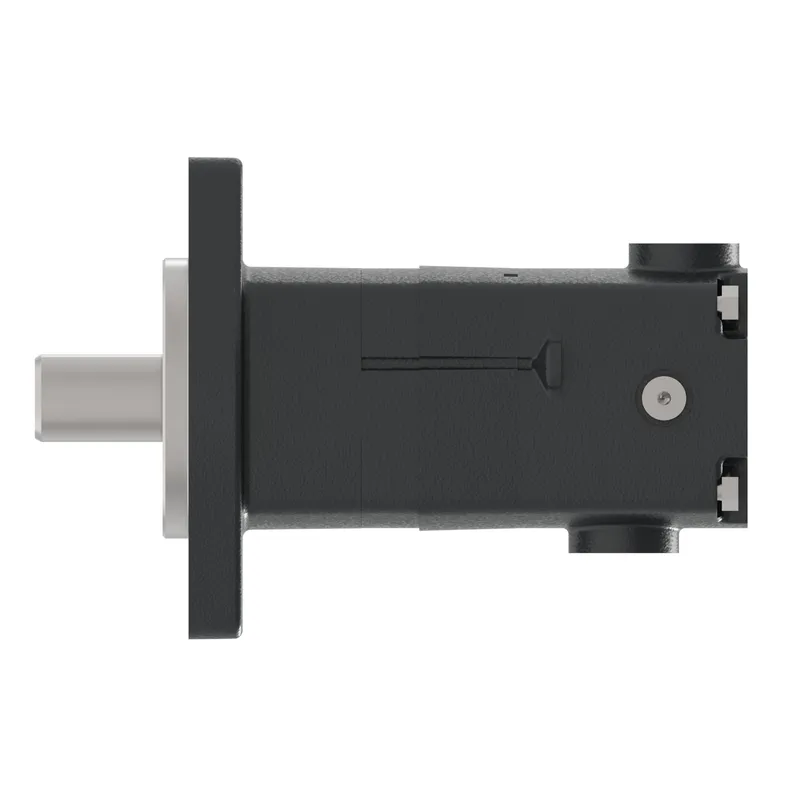

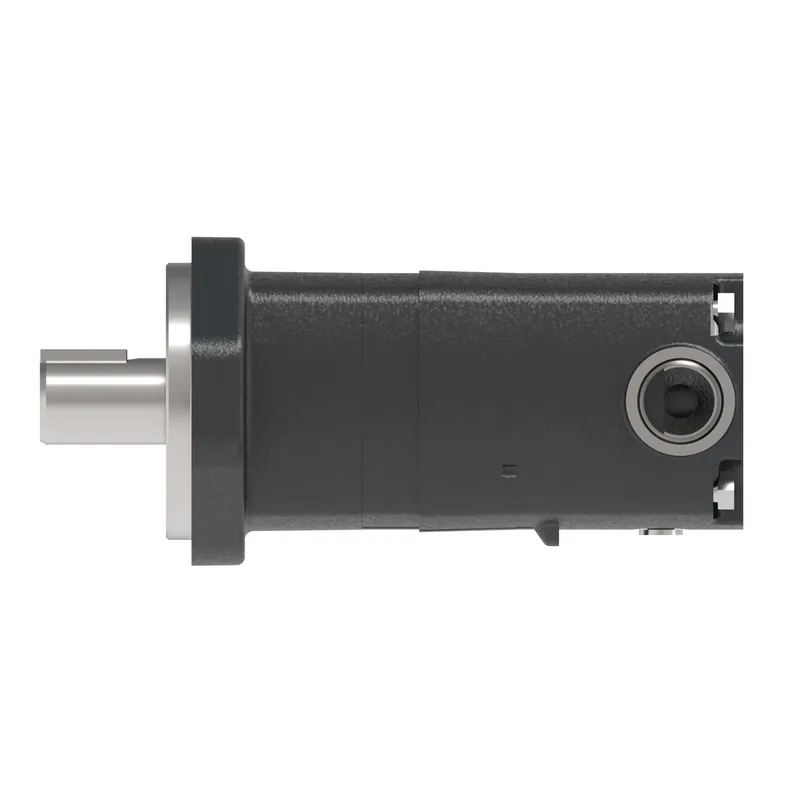

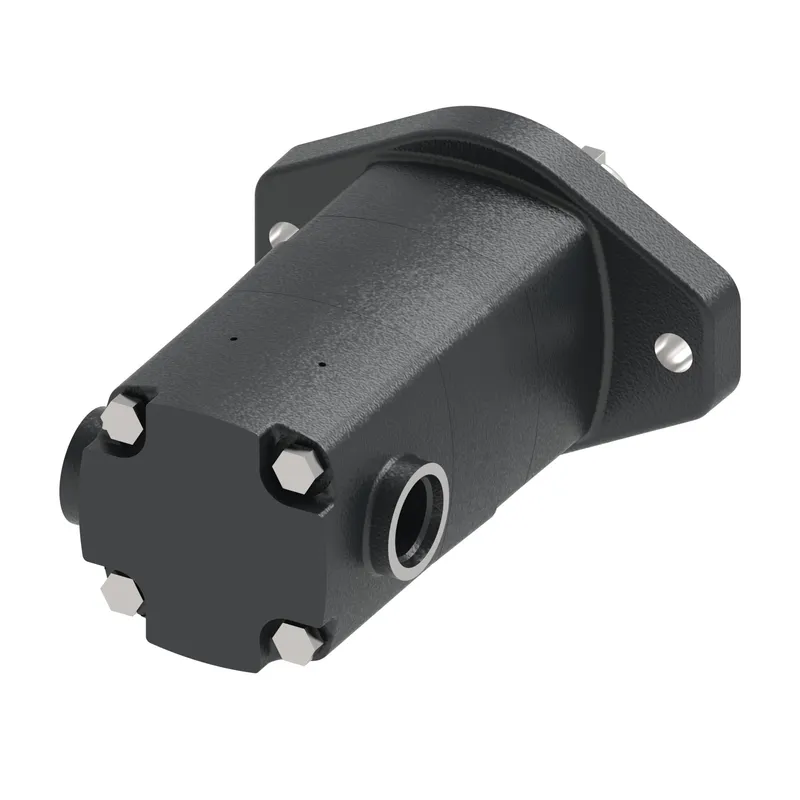

MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AF02ZC9200010000000ABAAB

MPN: 629AG00613A
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 629AG00613A?

Danfoss MOTOR-ORBITAL,XL2 SERIES 245 [14.91], MC2245AF02ZC9200010000000ABAAB, manufacturer part number 629AG00613A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MC2245AF02ZC9200010000000ABAAB
Motor Series	XL2 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	245
Geometric displacement [cm3/r [in3/r]]	243.9 [14.88]
Motor type	Standard
Motor function	Standard
Mounting flange type	2 Bolt - B
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	101.6 x 9.4, 146.0, 14.4 [4.00 x 0.37, 5.75, 0.57] SAE B
Shaft type	Straight
Shaft dimension	Dia. 1 1/4 inch, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	Square key, 5/16 x 1 1/4 inch
Main port thread type	UN / UNF
Main port style	Sideport - 180 deg to each other
Main port dimension	1 1/16 - 12 O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Painted, Black
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	Z331-02
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Brand	Danfoss
Sub brand	Xcel
