Danfoss orbital motor quick selector Parts

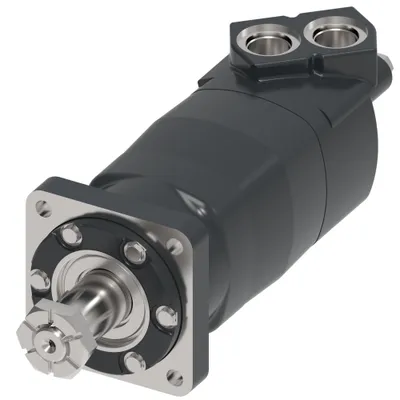

Danfoss

112-1057-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB02AA02000000000000000F

Danfoss

112-1056-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AA02000000000000000F

Danfoss

112-1055-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB02AA02000000000000000F

Danfoss

112-1054-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB02AA02000000000000000F

Danfoss

112-1053-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB02AA02000000000000000F

Danfoss

112-1052-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB02AA02000000000000000F, M06120AB02AA02000000000000000F

Danfoss

112-1047-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB03AA06000000000000000F, M06150AB03AA06000000000000000F

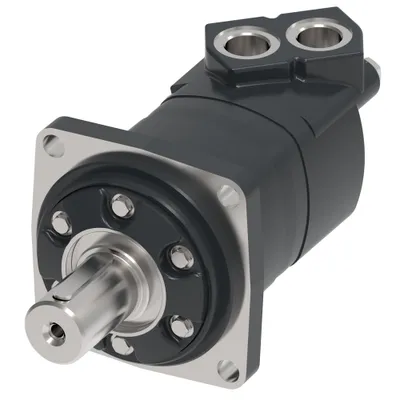

Danfoss

112-1026-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB03AB02000000000000000F

Danfoss

112-1025-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB03AB02000000000000000F

Danfoss

112-1023-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB02AB02000000000000000F

Danfoss

112-1020-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB01AB02000000000000000F

Danfoss

112-1019-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB01AB02000000000000000F

Danfoss

112-1012-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AB02000000000000000F

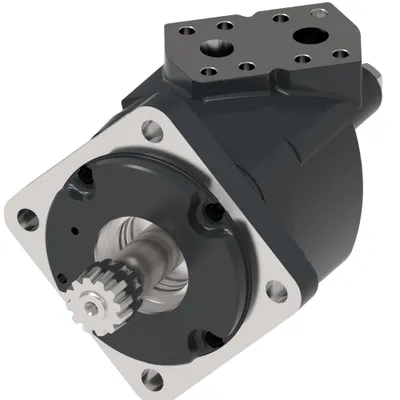

Danfoss

112-1011-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB02AB02000000000000000F

Danfoss

112-1006-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AB02000000000000000F

Danfoss

11198908

OMV 630 LL HYDRAULIC MOTOR

Danfoss

11198789

TMK 250 FL HYDRAULIC MOTOR

Danfoss

11198788

TMKW 250 HYDRAULIC MOTOR

Danfoss

11198635

OMV 630 HYDRAULIC MOTOR

Danfoss

11198321

OMT 250 HYDRAULIC MOTOR

Danfoss

11198104

TMTU 250 HYDRAULIC MOTOR

Danfoss

11197427

OMV 315 HYDRAULIC MOTOR

Danfoss

11197425

OMTW 160 HYDRAULIC MOTOR

Danfoss

11197059

TMK 400 EMD HYDRAULIC MOTOR

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Main port dimension	Drain Port Dimension
112-1057-006	985	982.7 [59.97]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1056-006	490	491.4 [29.99]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1055-006	390	391.7 [23.90]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1054-006	310	312.0 [19.04]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1053-006	245	246.5 [15.04]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1052-006	195	195.8 [11.95]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	7/16 - 20 UNF-2B SAE O-Ring port
112-1047-006	245	246.5 [15.04]	4 Bolt - Square	1 5/16 - 12 UN-2B SAE O-Ring port	9/16 - 18 UNF-2B SAE O-Ring port
112-1026-006	310	312.0 [19.04]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1025-006	245	246.5 [15.04]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1023-006	310	312.0 [19.04]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1020-006	310	312.0 [19.04]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1019-006	245	246.5 [15.04]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1012-006	490	491.4 [29.99]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1011-006	390	391.7 [23.90]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
112-1006-006	490	491.4 [29.99]	4 Bolt - Square	0.750 inch drilled hole	7/16 - 20 UNF-2B SAE O-Ring port
11198321	250	251.8 [15.36]	4 Bolt - C	G 3/4, 4 x M10 block mounting threads	9/16 - 18 UNF-2B O-Ring port
11197425	160	161.1 [9.83]	4 Bolt - Wheel	G 3/4, 4 x M10 block mounting threads	G 1/4
11197059	400	397.2 [24.24]	6 Bolt - Magneto	1 1/16 - 12 UN-2B SAE O-Ring port,	7/16-20 UNF-2B O-Ring port

Common to all listed parts

Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
Front bearing type	Tapered roller bearing
