Danfoss orbital motor quick selector Parts

Danfoss

112-1163-006

MOTOR-ORBITAL,6000 SERIES 735 [45], M06450AB03AA02000000000000000F

Danfoss

112-1162-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB04AA02000000000000000F

Danfoss

112-1161-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB02AA0600000000000AD00F, M06120AB02AA0600000000000AD00F

Danfoss

112-1158-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB05AA02000000000000000F

Danfoss

112-1151-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB01AA06000030003000000F, M06239AB01AA06000030003000000F

Danfoss

112-1150-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA06000030003000000F, M06300AB01AA06000030003000000F

Danfoss

112-1145-006

MOTOR-ORBITAL,6000 SERIES 735 [45], M06450AB01AA02000000000000000F

Danfoss

112-1138-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB01AA0200000000000AA00F

Danfoss

112-1136-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB04AB0200001000000AA00F

Danfoss

112-1134-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AB0200001000000AA00F

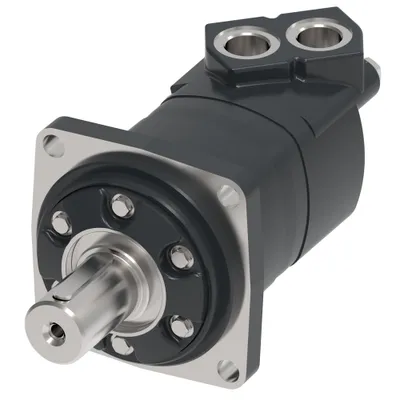

Danfoss

112-1131-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AD03AA0600000000000AG00F

Danfoss

112-1130-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB05AA02000000000000000F, M06190AB05AA02000000000000000F

Danfoss

112-1129-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA02000010000000000F, M06300AB01AA02000010000000000F

Danfoss

112-1128-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA06000010000000000F

Danfoss

112-1125-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB05AA02000000000000000F, M06120AB05AA02000000000000000F

Danfoss

112-1112-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB04AB02000000000000000F

Danfoss

112-1111-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB04AC0300000000000AA00F

Danfoss

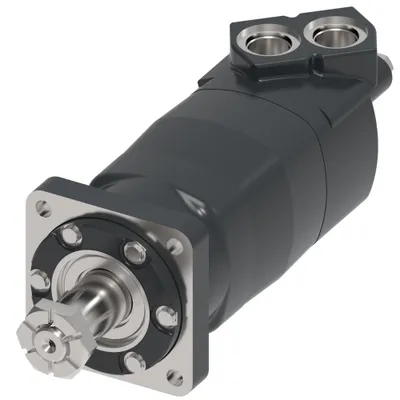

112-1109-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB03AA02000000000000000F

Danfoss

112-1108-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB02AA02000000008000000F

Danfoss

112-1107-006

MOTOR-ORBITAL,6000 SERIES 625 [38.1], M06381AB01AA02000000000000000F

Danfoss

112-1104-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB03AA06000000000000000F

Danfoss

112-1103-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB02AA06000000000000000F

Danfoss

112-1099-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB04AC0300000000000AA00F

Danfoss

112-1098-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB04AC0300000000000AA00F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
112-1163-006	M06450AB03AA02000000000000000F	735	737.4 [45.00]	n/a	UN / UNF
112-1162-006	M06600AB04AA02000000000000000F	985	982.7 [59.97]	Rectangular key, 12 x 8 x 63 mm	UN / UNF
112-1161-006	M06120AB02AA0600000000000AD00F	195	195.8 [11.95]	Square key, 7/16 x 1 1/4 inch	UN / UNF
112-1158-006	M06150AB05AA02000000000000000F	245	246.5 [15.04]	n/a	UN / UNF
112-1151-006	M06239AB01AA06000030003000000F	390	391.7 [23.90]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1150-006	M06300AB01AA06000030003000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1145-006	M06450AB01AA02000000000000000F	735	737.4 [45.00]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1138-006	M06239AB01AA0200000000000AA00F	390	391.7 [23.90]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1136-006	M06381AB04AB0200001000000AA00F	625	624.2 [38.09]	Rectangular key, 12 x 8 x 63 mm	Manifold
112-1134-006	M06300AB02AB0200001000000AA00F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	Manifold
112-1131-006	M06190AD03AA0600000000000AG00F	310	312.0 [19.04]	n/a	UN / UNF
112-1130-006	M06190AB05AA02000000000000000F	310	312.0 [19.04]	n/a	UN / UNF
112-1129-006	M06300AB01AA02000010000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1128-006	M06300AB01AA06000010000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1125-006	M06120AB05AA02000000000000000F	195	195.8 [11.95]	n/a	UN / UNF
112-1112-006	M06300AB04AB02000000000000000F	490	491.4 [29.99]	Rectangular key, 12 x 8 x 63 mm	Manifold
112-1111-006	M06381AB04AC0300000000000AA00F	625	624.2 [38.09]	Rectangular key, 12 x 8 x 63 mm	BSP
112-1109-006	M06381AB03AA02000000000000000F	625	624.2 [38.09]	n/a	UN / UNF
112-1108-006	M06381AB02AA02000000008000000F	625	624.2 [38.09]	Square key, 7/16 x 1 1/4 inch	UN / UNF
112-1107-006	M06381AB01AA02000000000000000F	625	624.2 [38.09]	Square key, 3/8 x 1 5/8 inch	UN / UNF
112-1104-006	M06300AB03AA06000000000000000F	490	491.4 [29.99]	n/a	UN / UNF
112-1103-006	M06239AB02AA06000000000000000F	390	391.7 [23.90]	Square key, 7/16 x 1 1/4 inch	UN / UNF
112-1099-006	M06600AB04AC0300000000000AA00F	985	982.7 [59.97]	Rectangular key, 12 x 8 x 63 mm	BSP
112-1098-006	M06300AB04AC0300000000000AA00F	490	491.4 [29.99]	Rectangular key, 12 x 8 x 63 mm	BSP

Common to all listed parts

Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Mounting flange type	4 Bolt - Square
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
