Danfoss orbital motor quick selector Parts
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor Series | Motor size | Geometric displacement [cm3/r [in3/r]] | Main port dimension | Seal Kit |
|---|---|---|---|---|---|
| 11188265 | TMTH Series | 630 | 630.7 [38.50] | G 3/4, 5 x M10 block mounting threads | 11131621 |

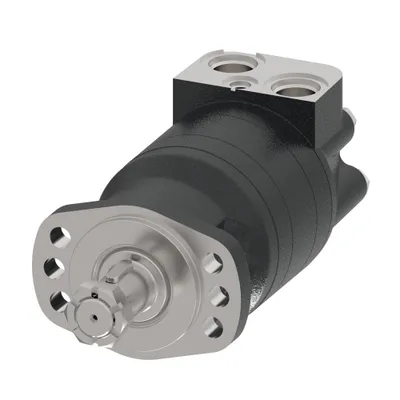

| 11187192 | TMK Series | 315 | 315.3 [19.23] | G 3/4 | 151F0141 |
| 11187181 | TMK Series | 250 | 252.2 [15.39] | G 3/4 | 151F0141 |
| 11187180 | TMK Series | 200 | 201.5 [12.30] | G 3/4 | 151F0141 |
| 11186908 | TMK Series | 160 | 158.0 [9.64] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |
| 11186274 | OMV Series | 500 | 499.6 [30.49] | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11185113 | OMT Series | 315 | 326.3 [19.91] | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11184972 | TMT Series | 470 | 477.3 [29.13] | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0176 |
| 11183812 | OMT Series | 160 | 161.1 [9.83] | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11183786 | OMT Series | 400 | 410.9 [25.07] | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11182785 | OMT Series | 200 | 201.4 [12.29] | G 3/4, 4 x M10 block mounting threads | 151B0113 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Special features hardware | Standard |
| Special Features Assembly | Standard |
| Shaft Seal | NBR - Standard |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
