Danfoss orbital motor quick selector Parts
![Danfoss 11191726 – MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-B-NN-W48-AD-1D-A31-A-A-1B-1-N-AA-NNNNN-NN-NN-NN-SP-NNN](/media/assets/danfoss-drives/11191726/images/sha256_233fe36386adb8a2e8fa97d9bc6e06b80c44a82bf4df9ececb0eb536fa5eabce.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F277959%2FID455238490032-0101_preview.jpg&w=400 "Danfoss 11191726 – MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-B-NN-W48-AD-1D-A31-A-A-1B-1-N-AA-NNNNN-NN-NN-NN-SP-NNN")
Danfoss
11191726MOTOR-ORBITAL,OMT SERIES 500 [30.5], OMT-0500-B-NN-W48-AD-1D-A31-A-A-1B-1-N-AA-NNNNN-NN-NN-NN-SP-NNN
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor size | Geometric displacement [cm3/r [in3/r]] | Shaft type | Main port dimension | Seal Kit |
|---|---|---|---|---|---|
| 11196992 | 800 | 801.8 [48.93] | Straight | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11196047 | 400 | 410.9 [25.07] | TAPERED | G 3/4, 4 x M10 block mounting threads | 151B0154 |
| 11195543 | 315 | 315.3 [19.23] | Splined | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0141 |
| 11195469 | 315 | 314.5 [19.19] | Straight | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11195209 | 160 | 161.1 [9.83] | PTO | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |
| 11194967 | 250 | 251.8 [15.36] | Splined | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0113 |

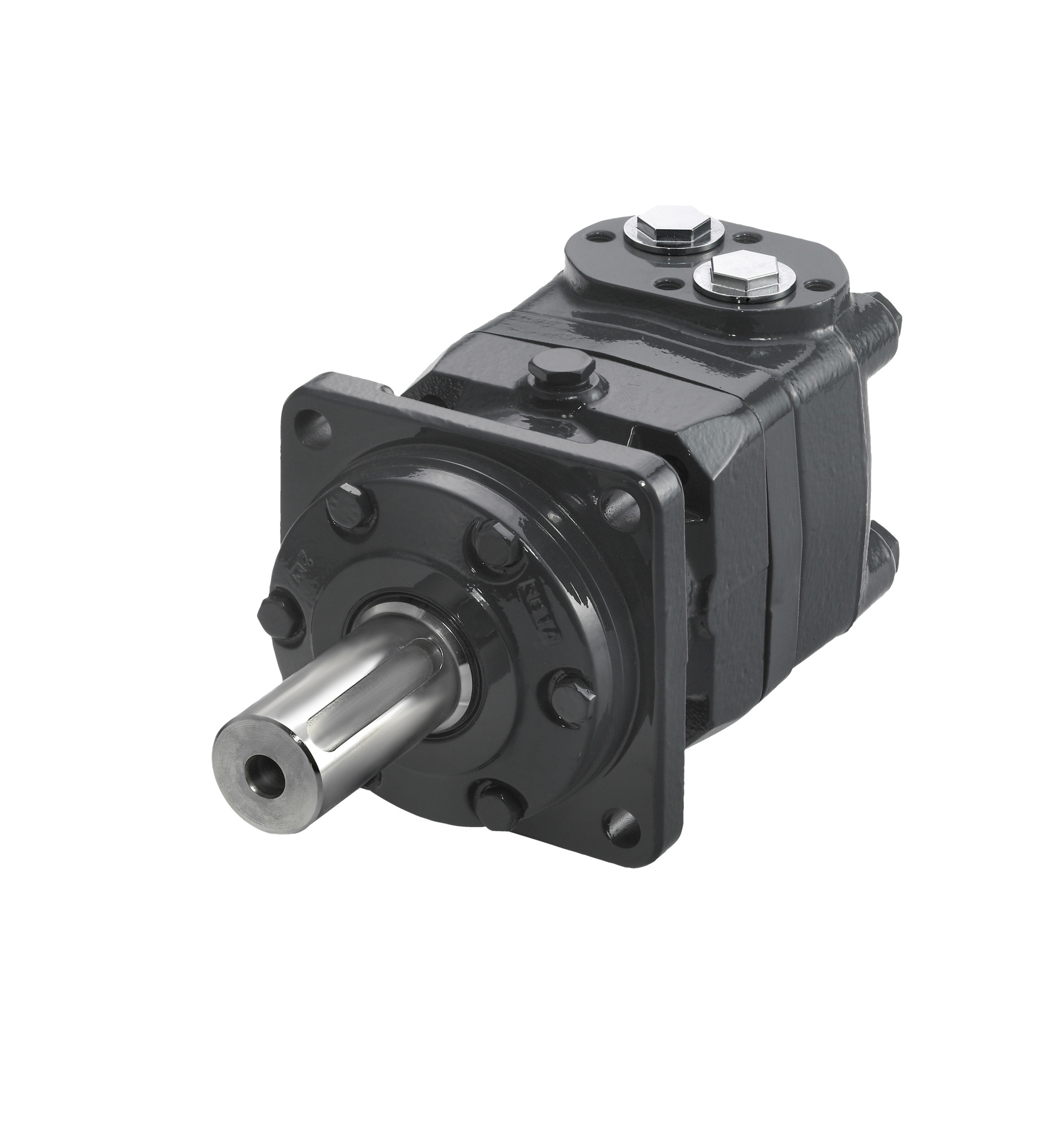

| 11193873 | 130 | 140.1 [8.54] | Straight | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11192647 | 500 | 499.6 [30.49] | TAPERED | 1 5/16 - 12 UN-2B SAE O-Ring port, | 151B0129 |
| 11191766 | 400 | 410.9 [25.07] | Splined | G 3/4, 4 x M10 block mounting threads | 151B0161 |
| 11191764 | 630 | 629.1 [38.39] | Straight | G 3/4 | 151B0176 |
| 11191762 | 630 | 629.1 [38.39] | Straight | G 1, 4 x M12 block mounting threads | 151B0129 |
| 11191729 | 315 | 314.5 [19.19] | Straight | G 1, 4 x M12 block mounting threads | 151B0129 |
| 11191726 | 500 | 523.6 [31.95] | Straight | G 3/4, 4 x M10 block mounting threads | 151B0113 |
| 11191686 | 315 | 326.3 [19.91] | Straight | 1 1/16 - 12 UN-2B SAE O-Ring port, - | 151B0176 |

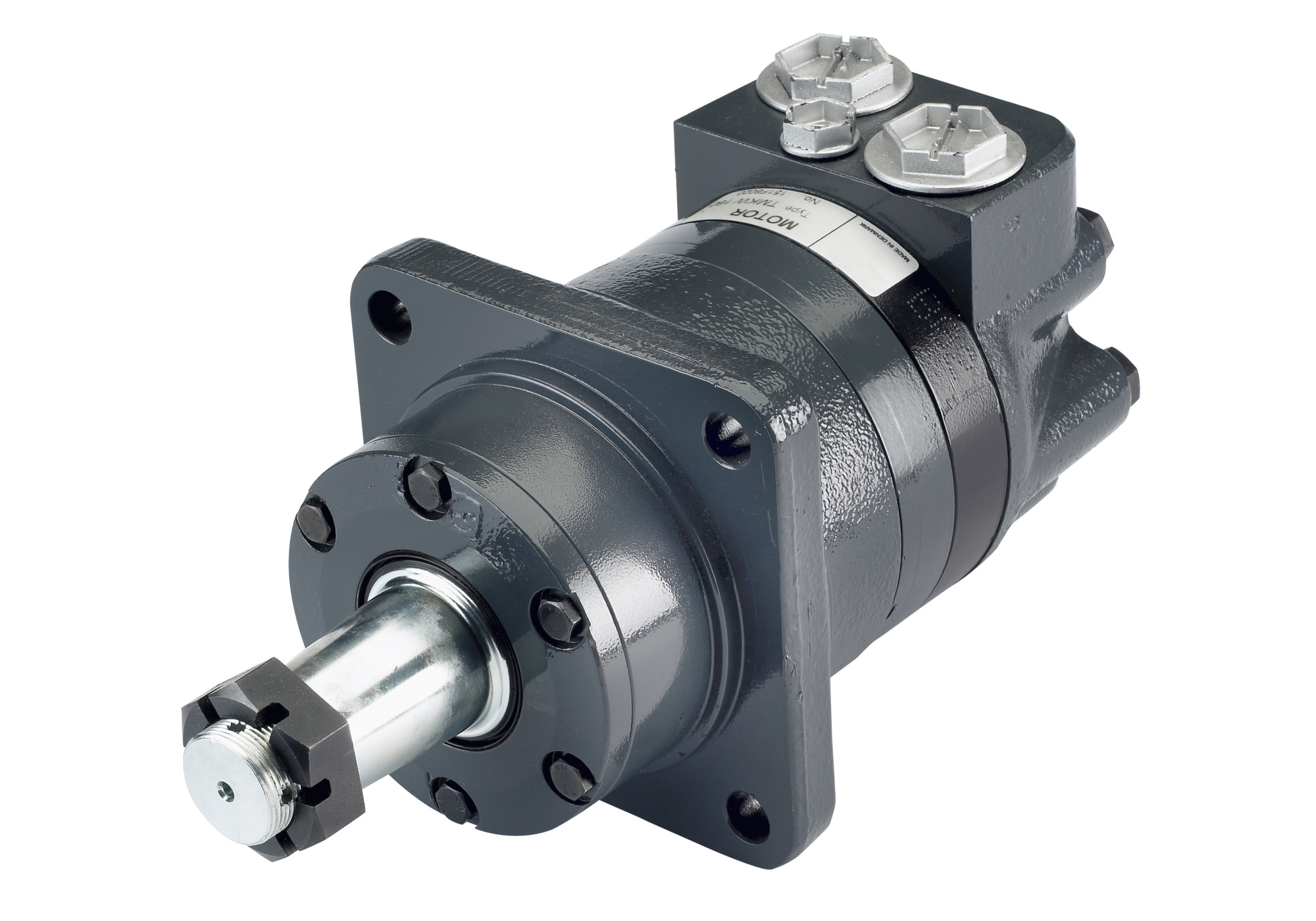

| 11191139 | 250 | 252.2 [15.39] | TAPERED | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0141 |
| 11189277 | 400 | 410.9 [25.07] | None | G 3/4, 4 x M10 block mounting threads | 151B0114 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Special Features Assembly | Standard |
| Orbital gearwheel set | Standard |
| Hydraulic valve function | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
