Danfoss orbital motor quick selector Parts

Danfoss

112-1097-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB04AC0300000000000AA00F

Danfoss

112-1096-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB04AC0300000000000AA00F

Danfoss

112-1095-006

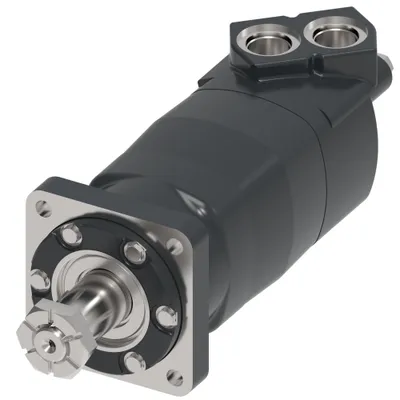

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB04AC0300000000000AA00F

Danfoss

112-1094-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB04AC0300000000000AA00F

Danfoss

112-1093-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB03AC0300000000000AA00F

Danfoss

112-1092-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB03AC0300000000000AA00F

Danfoss

112-1091-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB03AC0300000000000AA00F

Danfoss

112-1090-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB03AC0300000000000AA00F

Danfoss

112-1089-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB03AC0300000000000AA00F

Danfoss

112-1088-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB03AC0300000000000AA00F

Danfoss

112-1080-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB02AA06000000000000000F

Danfoss

112-1076-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB02AA06000000000000000F

Danfoss

112-1069-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB01AA02000000000000000F

Danfoss

112-1068-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB01AA02000000000000000F

Danfoss

112-1067-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB01AA02000000000000000F

Danfoss

112-1066-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB01AA02000000000000000F

Danfoss

112-1065-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB01AA02000000000000000F

Danfoss

112-1064-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB01AA02000000000000000F

Danfoss

112-1063-006

MOTOR-ORBITAL,6000 SERIES 985 [60], M06600AB03AA02000000000000000F

Danfoss

112-1062-006

MOTOR-ORBITAL,6000 SERIES 490 [30], M06300AB03AA02000000000000000F

Danfoss

112-1061-006

MOTOR-ORBITAL,6000 SERIES 390 [23.9], M06239AB03AA02000000000000000F

Danfoss

112-1060-006

MOTOR-ORBITAL,6000 SERIES 310 [19], M06190AB03AA02000000000000000F

Danfoss

112-1059-006

MOTOR-ORBITAL,6000 SERIES 245 [15], M06150AB03AA02000000000000000F

Danfoss

112-1058-006

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AB03AA02000000000000000F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Drain Port Dimension
112-1097-006	M06239AB04AC0300000000000AA00F	390	391.7 [23.90]	Rectangular key, 12 x 8 x 63 mm	G 1/4
112-1096-006	M06190AB04AC0300000000000AA00F	310	312.0 [19.04]	Rectangular key, 12 x 8 x 63 mm	G 1/4
112-1095-006	M06150AB04AC0300000000000AA00F	245	246.5 [15.04]	Rectangular key, 12 x 8 x 63 mm	G 1/4
112-1094-006	M06120AB04AC0300000000000AA00F	195	195.8 [11.95]	Rectangular key, 12 x 8 x 63 mm	G 1/4
112-1093-006	M06600AB03AC0300000000000AA00F	985	982.7 [59.97]	n/a	G 1/4
112-1092-006	M06300AB03AC0300000000000AA00F	490	491.4 [29.99]	n/a	G 1/4
112-1091-006	M06239AB03AC0300000000000AA00F	390	391.7 [23.90]	n/a	G 1/4
112-1090-006	M06190AB03AC0300000000000AA00F	310	312.0 [19.04]	n/a	G 1/4
112-1089-006	M06150AB03AC0300000000000AA00F	245	246.5 [15.04]	n/a	G 1/4
112-1088-006	M06120AB03AC0300000000000AA00F	195	195.8 [11.95]	n/a	G 1/4
112-1080-006	M06300AB02AA06000000000000000F	490	491.4 [29.99]	Square key, 7/16 x 1 1/4 inch	9/16 - 18 UNF-2B SAE O-Ring port
112-1076-006	M06120AB02AA06000000000000000F	195	195.8 [11.95]	Square key, 7/16 x 1 1/4 inch	9/16 - 18 UNF-2B SAE O-Ring port
112-1069-006	M06600AB01AA02000000000000000F	985	982.7 [59.97]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1068-006	M06300AB01AA02000000000000000F	490	491.4 [29.99]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1067-006	M06239AB01AA02000000000000000F	390	391.7 [23.90]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1066-006	M06190AB01AA02000000000000000F	310	312.0 [19.04]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1065-006	M06150AB01AA02000000000000000F	245	246.5 [15.04]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1064-006	M06120AB01AA02000000000000000F	195	195.8 [11.95]	Square key, 3/8 x 1 5/8 inch	7/16 - 20 UNF-2B SAE O-Ring port
112-1063-006	M06600AB03AA02000000000000000F	985	982.7 [59.97]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1062-006	M06300AB03AA02000000000000000F	490	491.4 [29.99]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1061-006	M06239AB03AA02000000000000000F	390	391.7 [23.90]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1060-006	M06190AB03AA02000000000000000F	310	312.0 [19.04]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1059-006	M06150AB03AA02000000000000000F	245	246.5 [15.04]	n/a	7/16 - 20 UNF-2B SAE O-Ring port
112-1058-006	M06120AB03AA02000000000000000F	195	195.8 [11.95]	n/a	7/16 - 20 UNF-2B SAE O-Ring port

Common to all listed parts

Motor Series	6000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC)
Main port style	Sideport - staggered
