Danfoss 11197425

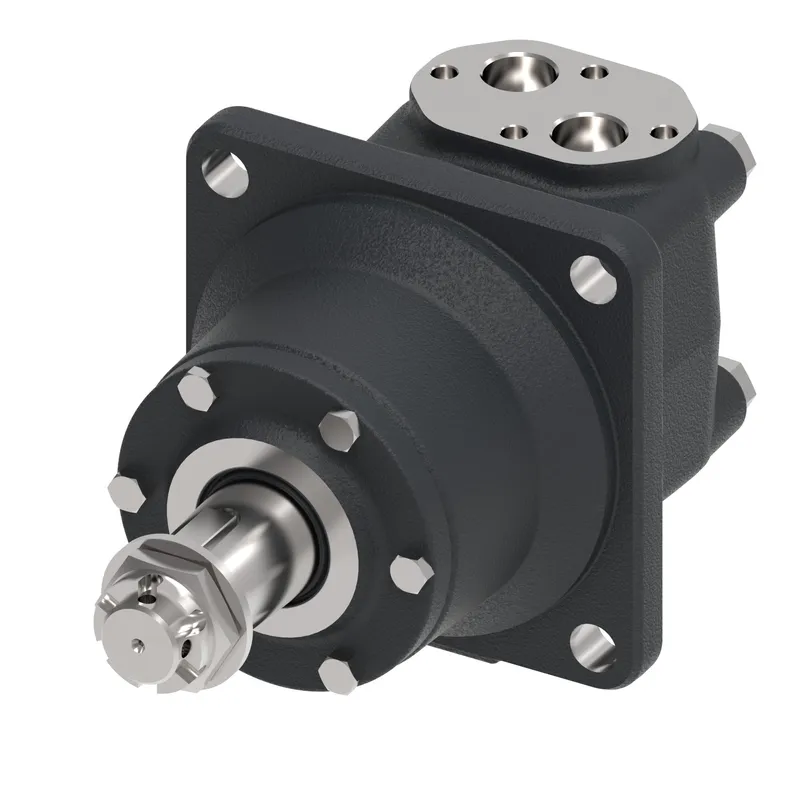

OMTW 160 HYDRAULIC MOTOR

MPN
11197425
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 11197425?

Danfoss OMTW 160 HYDRAULIC MOTOR, manufacturer part number 11197425. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Model CodeOMT-0160-B-NN-W48-AD-1D-F18-E-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor SeriesOMT Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor size160
Geometric displacement [cm3/r [in3/r]]161.1 [9.83]
Motor typeWheel
Motor functionStandard
Mounting flange type4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]160.0 x 7.0, 200.0, 18.0 [6.30 x 0.32, 7.87, 0.71] Rear: 172.0 x 3.5, 200.0, 18.0 [6.77 x 0.14, 7.87, 0.71]
Shaft typeTAPERED
Shaft dimensionDia. 45 mm, 1:10, 2 x M30 thread in shaft end
Shaft KeyRectangular key, B12 x 8 x 28 mm, DIN 6885
Main port thread typeBSP
Main port styleSideport - staggered
Main port dimensionG 3/4, 4 x M10 block mounting threads
Drain Port DimensionG 1/4
Brake Release Port Dimensionn/a
PaintedNo
Paint informationn/a
Special features hardwareStandard
Special Features AssemblyStandard
Dust sealStandard
Shaft SealFPM viton - Standard
Seal Kit151B0421
Front bearing typeTapered roller bearing
Rear bearing typeTapered roller bearing
Orbital gearwheel setStandard
Check valve functionYes
Hydraulic valve functionNone
SensorNone
PackagingSingle pack
Name TagDanfoss name tag
Design code2
Delete Model CodeYes
Proposition 65Cancer and Reproductive Harm

11197425: frequently asked questions

When can 11197425 be shipped?

11197425 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 11197425 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 11197425 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11197425, subject to availability and destination.
