SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | apparent pick-up power of magnet coil at AC — at 50 Hz | apparent holding power of magnet coil at AC — at 50 Hz | depth |
|---|---|---|---|---|---|
| 3RT2036-3AP00-1AA0 | 6 W | 0.966 kg | 190 V·A | 16 V·A | 130 mm |
| 3RT2036-3AP00 | 6 W | 0.957 kg | 190 V·A | 16 V·A | 130 mm |
| 3RT2036-3AN20 | 6.5 W | 0.949 kg | 210 V·A | 17.2 V·A | 130 mm |

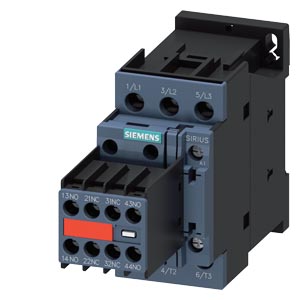

| 3RT2024-1AK64-3MA0 | 2 W | 0.46 kg | 68 V·A | 7.9 V·A | 141 mm |
| 3RT2024-1AK64 | 2 W | 443 g | 68 V·A | 7.9 V·A | 141 mm |
| 3RT2024-1AG24 | 2 W | 439.77 g | 68 V·A | 7.9 V·A | 141 mm |
| 3RT2024-1AG20 | — | 384.68 g | — | — | 97 mm |

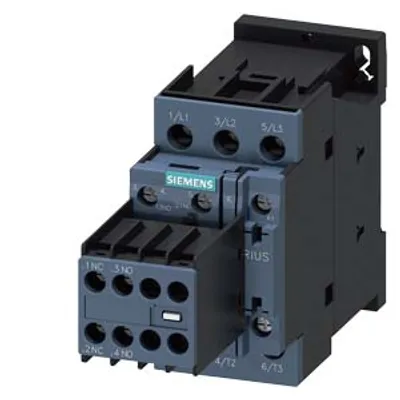

| 3RT2024-1AF04 | 1.9 W | 442.83 g | 65 V·A | 7.6 V·A | 141 mm |

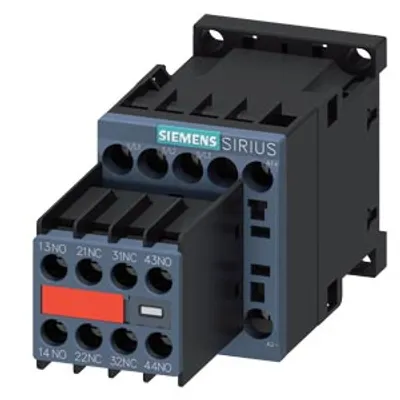

| 3RT2018-1FB44-3MA0 | 4 W | 333.92 g | — | — | 117 mm |
| 3RT2018-1FB42 | 4 W | 277.8 g | — | — | 73 mm |
| 3RT2018-1FB41 | 4 W | 283.12 g | — | — | 73 mm |
| 3RT2018-1CP04-3MA0 | 1.5 W | 285 g | 37 V·A | 5.7 V·A | 117 mm |

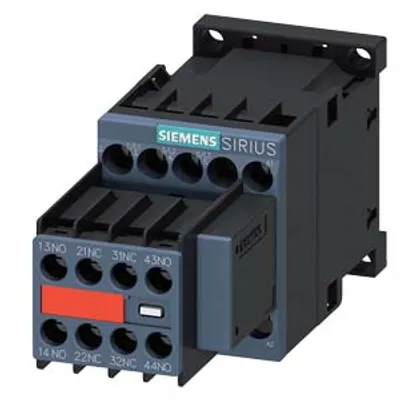

| 3RT2018-1CK64-3MA0 | 1.7 W | 270 g | 36 V·A | 5.9 V·A | 117 mm |

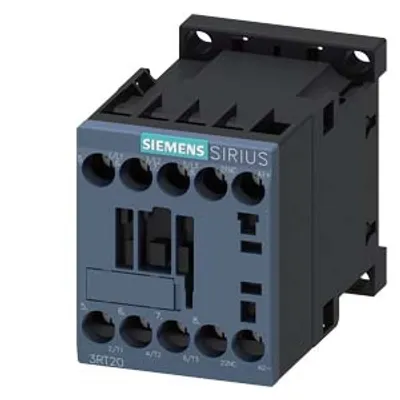

| 3RT2018-1BW42 | 4 W | 0.268 kg | — | — | 73 mm |
| 3RT2018-1BW41 | 4 W | 0.274 kg | — | — | 73 mm |
| 3RT2045-3AF00 | 7.3 W | 1.643 kg | 296 V·A | 19 V·A | 152 mm |
| 3RT2045-3AC20 | 25 W | 1.641 kg | 348 V·A | 25 V·A | 152 mm |
| 3RT2045-3AB00 | 7.3 W | 1.646 kg | 296 V·A | 19 V·A | 152 mm |
| 3RT2045-1SP30 | 3.5 W | 1.737 kg | 163 V·A | 2.4 V·A | 152 mm |
| 3RT2045-1SF30 | 3.5 W | 1.738 kg | 163 V·A | 2.4 V·A | 152 mm |
| 3RT2026-2AL20 | — | 429.18 g | — | — | 97 mm |

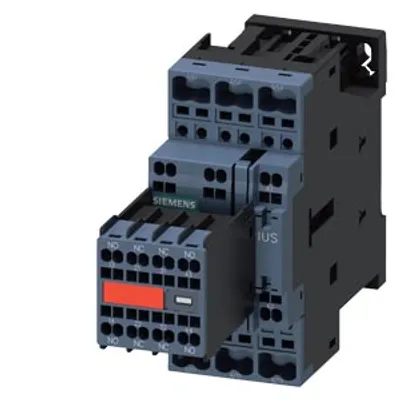

| 3RT2026-2AK64-3MA0 | 2.7 W | 470 g | 81 V·A | 10.5 V·A | 144 mm |
| 3RT2026-2AK60-1AA0 | — | 0.432 kg | — | — | 97 mm |
| 3RT2028-1BF40-0JA0 | 5.9 W | 0.581 kg | — | — | 107 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
