SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | depth | power loss [W] for rated value of the current — without load current share typical | closing power of magnet coil at DC | closing delay — at DC |
|---|---|---|---|---|---|
| 3RT2027-1AR60 | 0.397 kg | 97 mm | — | — | — |

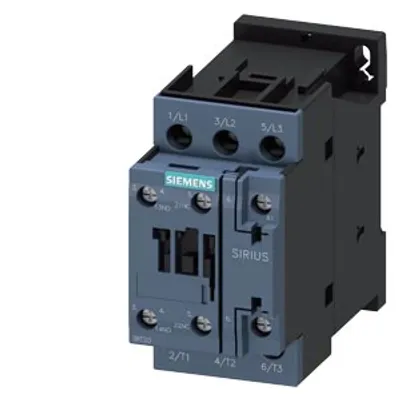

| 3RT2027-1AP60-0UA0 | 0.399 kg | 97 mm | — | — | — |
| 3RT1056-6PP35 | 3.613 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |

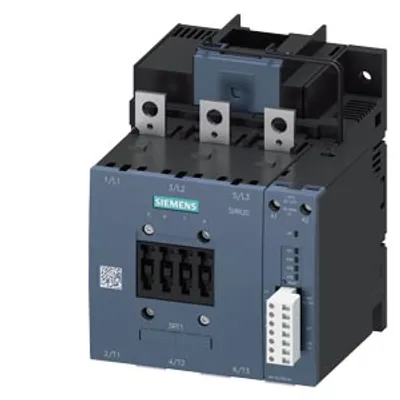

| 3RT1056-6PF35 | 3.816 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |

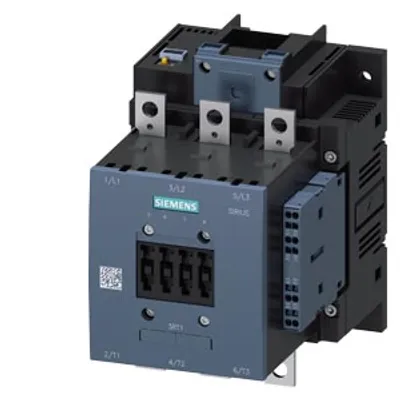

| 3RT1056-6NP38-0PA5 | 3.175 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |
| 3RT1056-6NP36-3PA0 | 3.178 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |
| 3RT1056-6NP36 | 3.204 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |
| 3RT1056-6NF36 | 3.22 kg | 170 mm | 2.8 W | 320 W | 35 ... 75 ms |
| 3RT2037-3NE34 | 1.197 kg | 178 mm | 1 W | 23 W | 35 ... 110 ms |
| 3RT2037-3NB34-3MA0 | 1.198 kg | 178 mm | 1 W | 23 W | 35 ... 110 ms |
| 3RT2037-3NB30 | 1.097 kg | 130 mm | 1 W | 23 W | 35 ... 110 ms |
| 3RT2037-3KB44-3MA0 | 1.183 kg | 178 mm | 1 W | 21.5 W | 35 ... 80 ms |

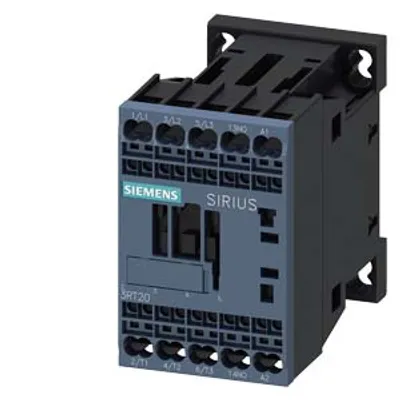

| 3RT2015-2AP61-Z X95 | 0.235 kg | 73 mm | 1.2 W | — | — |
| 3RT2015-2AP61 | 0.235 kg | 73 mm | 1.2 W | — | — |
| 3RT2015-2AP04-3MA0 | 301.99 g | 121 mm | 1.1 W | — | — |
| 3RT2015-1UB42 | 0.279 kg | 73 mm | 4 W | 4 W | 30 ... 100 ms |
| 3RT2015-1UB41 | 0.287 kg | 73 mm | 4 W | 4 W | 30 ... 100 ms |
| 3RT2015-1SB42 | 0.282 kg | 73 mm | 1.6 W | 1.6 W | 25 ... 120 ms |
| 3RT2015-1SB41 | 0.279 kg | 73 mm | 1.6 W | 1.6 W | 25 ... 120 ms |
| 3RT2015-1QB42 | 303.99 g | 117 mm | 2.8 W | 2.8 W | 25 ... 130 ms |
| 3RT2015-1QB41 | 0.281 kg | 117 mm | 2.8 W | 2.8 W | 25 ... 130 ms |
| 3RT2015-1MB42-0KT0 | 0.277 kg | 73 mm | 1.6 W | 1.6 W | 25 ... 120 ms |
| 3RT2024-2BE40 | 0.592 kg | 107 mm | 5.9 W | 5.9 W | 50 ... 170 ms |
| 3RT2024-2BB44-3MA0 | 0.667 kg | 154 mm | 5.9 W | 5.9 W | 50 ... 170 ms |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
