SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | depth | global warming potential [CO2 eq] / during manufacturing | global warming potential [CO2 eq] / during operation |
|---|---|---|---|---|---|
| 3RT2028-1BF40 | 5.9 W | 0.571 kg | 107 mm | 2.65 kg | 219 kg |
| 3RT2028-1BE80 | 5.9 W | 0.592 kg | 107 mm | 2.65 kg | 219 kg |
| 3RT2028-1BE40 | 5.9 W | 0.579 kg | 107 mm | 2.65 kg | 219 kg |
| 3RT2028-1AS00 | — | 0.397 kg | 97 mm | — | — |
| 3RT2028-1AP60 | — | 0.402 kg | 97 mm | — | — |

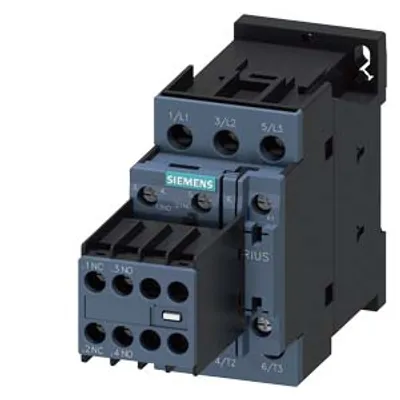

| 3RT2028-1AP04-Z X95 | 2.5 W | 463 g | 141 mm | 1.9 kg | 72.4 kg |
| 3RT2028-1AP04 | 2.5 W | 463 g | 141 mm | 1.9 kg | 72.4 kg |
| 3RT2028-1AP00-1AA0 | — | 0.394 kg | 97 mm | — | — |
| 3RT2028-1AP00-Z X95 | — | 397.68 g | 97 mm | — | — |
| 3RT1076-2AU36 | 10 W | 10.356 kg | 225 mm | 55.8 kg | 718 kg |
| 3RT1076-2AT36 | 10 W | 10.315 kg | 225 mm | 55.8 kg | 718 kg |
| 3RT1076-2AS36 | 10 W | 10.623 kg | 225 mm | 55.8 kg | 718 kg |
| 3RT2047-1NB30-1AA0 | 1.8 W | 1.744 kg | 152 mm | 9.35 kg | 259 kg |
| 3RT2047-1NB30 | 1.8 W | 1.741 kg | 152 mm | 9.35 kg | 259 kg |

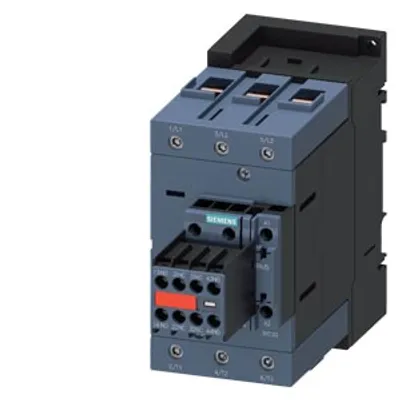

| 3RT2047-1CL24-3MA0 | 19 W | 1.691 kg | 195 mm | — | — |
| 3RT2047-1CF04-3MA0 | 7.3 W | 1.684 kg | 195 mm | — | — |

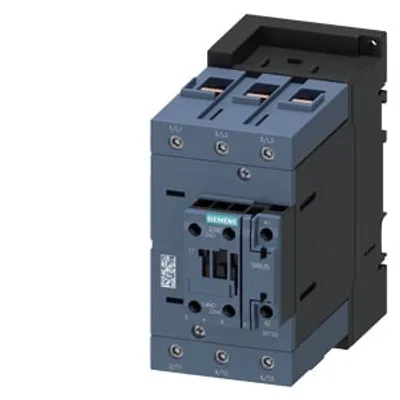

| 3RT2047-1AP60 | 8.8 W | 1.631 kg | 152 mm | 7.66 kg | 399 kg |
| 3RT2047-1AP04-3MA0 | 7.3 W | 1.69 kg | 195 mm | 7.66 kg | 399 kg |
| 3RT2027-2AC24 | 2.7 W | 0.46 kg | 144 mm | 1.9 kg | 72.4 kg |
| 3RT2027-1BB44-3MA0 | 5.9 W | 625 g | 151 mm | 2.65 kg | 219 kg |
| 3RT2027-1BB44 | 5.9 W | 640 g | 151 mm | 2.65 kg | 219 kg |
| 3RT2027-1BB40-1AA0 | 5.9 W | 0.579 kg | 107 mm | 2.65 kg | 219 kg |
| 3RT2027-1AU20 | — | 0.403 kg | 97 mm | — | — |
| 3RT2027-1AU00 | — | 0.425 kg | 97 mm | — | — |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
