SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts

Siemens

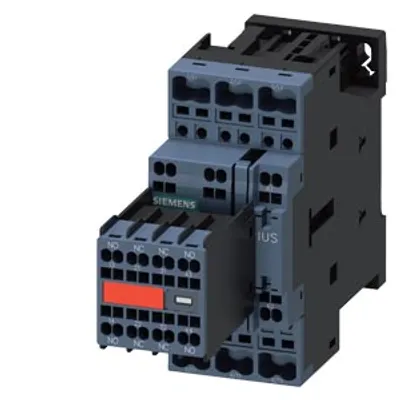

3RT2024-2AL24-3MA0

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-2AL24

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-2AL20-1AA0

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-2AL20

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2026-1AK60

Power contactor, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole

Siemens

3RT2026-1AC24

Power contactor, AC-3e/AC-3, 25 A, 11 kW / 400 V, 3-pole

Siemens

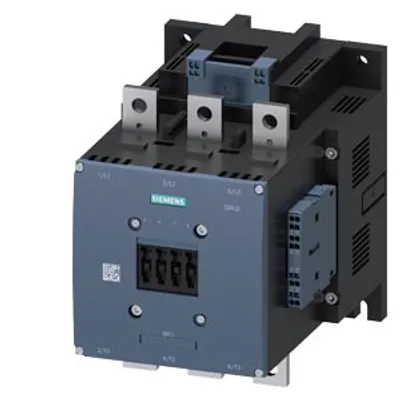

3RT1075-2AM36

Power contactor, AC-3e/AC-3 400 A

Siemens

3RT1075-2AF36

Power contactor, AC-3e/AC-3 400 A

Siemens

3RT2024-2AK60

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-2AH00

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

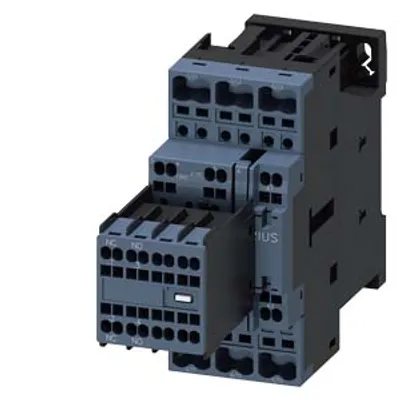

3RT2024-2AG24

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

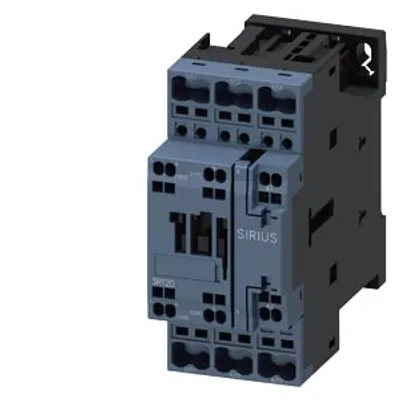

3RT2024-2AG20

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1BB40-1AA0

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

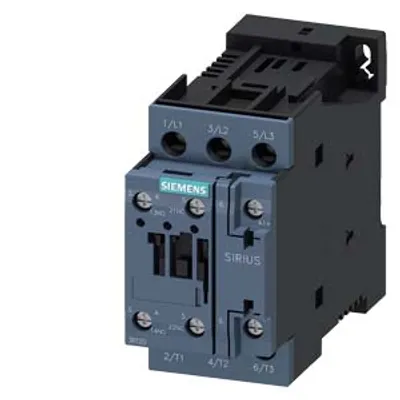

3RT2024-1BB40-0CC0

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1BB40

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AV60

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AV04

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AV00

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AN20

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AM20

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Siemens

3RT2024-1AL24-3MA0

Power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole

Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	size of contactor	Net Weight	type of voltage of the control supply voltage	height	depth
3RT2024-2AL24-3MA0	S0	0.463 kg	AC	102 mm	144 mm
3RT2024-2AL24	S0	0.467 kg	AC	102 mm	144 mm
3RT2024-2AL20-1AA0	S0	0.423 kg	AC	102 mm	97 mm
3RT2024-2AL20	S0	0.421 kg	AC	102 mm	97 mm
3RT2026-1AK60	S0	397.68 g	AC	85 mm	97 mm
3RT2026-1AC24	S0	0.465 kg	AC	85 mm	141 mm
3RT1075-2AM36	S12	10.295 kg	AC/DC	214 mm	225 mm
3RT1075-2AF36	S12	10.744 kg	AC/DC	214 mm	225 mm
3RT2024-2AK60	S0	417.18 g	AC	102 mm	97 mm
3RT2024-2AH00	S0	435 g	AC	102 mm	97 mm
3RT2024-2AG24	S0	0.462 kg	AC	102 mm	144 mm
3RT2024-2AG20	S0	433.9 g	AC	102 mm	97 mm
3RT2024-1BB40-1AA0	S0	0.578 kg	DC	85 mm	107 mm
3RT2024-1BB40-0CC0	S0	589.58 g	DC	85 mm	107 mm
3RT2024-1BB40	S0	578.68 g	DC	85 mm	107 mm
3RT2024-1AV60	S0	0.391 kg	AC	85 mm	97 mm
3RT2024-1AV04	S0	0.45 kg	AC	85 mm	141 mm
3RT2024-1AV00	S0	0.389 kg	AC	85 mm	97 mm
3RT2024-1AN20	S0	0.386 kg	AC	85 mm	97 mm
3RT2024-1AM20	S0	0.392 kg	AC	85 mm	97 mm
3RT2024-1AL24-3MA0	S0	0.47 kg	AC	85 mm	141 mm

Common to all listed parts

type of calculation of power loss current-dependent	quadratic
reference code according to IEC 81346-2	Q
installation altitude at height above sea level maximum	2 000 m
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %
number of poles for main current circuit	3
number of NO contacts for main contacts	3
number of NC contacts for main contacts	0
