SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | depth | power loss [W] for rated value of the current — without load current share typical | control supply voltage at DC rated value | control supply voltage at AC — at 50 Hz rated value |
|---|---|---|---|---|---|
| 3RT2027-2AL20-1AA0 | 0.434 kg | 97 mm | — | — | — |
| 3RT2018-1BB41-0UA0 | 0.287 kg | 73 mm | 4 W | 24 V | — |
| 3RT2018-1BB41-0CC0 | 0.278 kg | 73 mm | 4 W | 24 V | — |

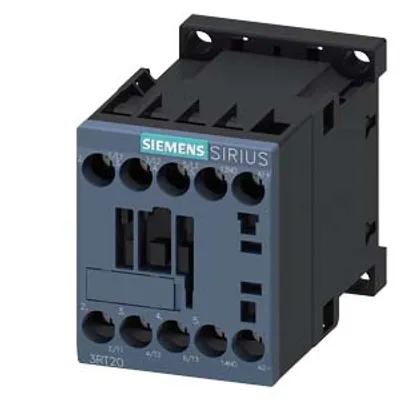

| 3RT2018-1BB41 | 277.8 g | 73 mm | 4 W | 24 V | — |
| 3RT2018-1BA42 | 0.28 kg | 73 mm | 4 W | 12 V | — |
| 3RT2045-3NF30 | 1.728 kg | 152 mm | 1.8 W | 83 ... 155 V | 83 ... 155 V |
| 3RT2045-3NB34-3MA0 | 1.812 kg | 198 mm | 1.8 W | 20 ... 33 V | 20 ... 33 V |
| 3RT2045-3NB30 | 1.761 kg | 152 mm | 1.8 W | 20 ... 33 V | 20 ... 33 V |
| 3RT2045-3KB44-3MA0 | 1.843 kg | 152 mm | 0.9 W | 24 V | — |
| 3RT2025-2AF08-0KT2 | 0.447 kg | 144 mm | 1.9 W | — | 110 V |

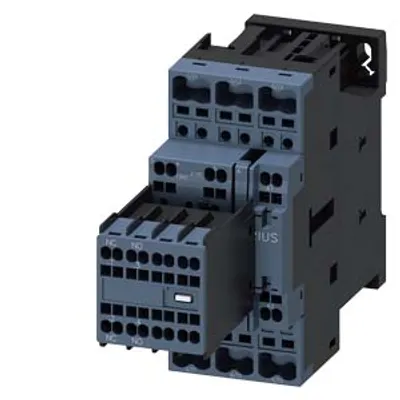

| 3RT2025-2AF04 | 0.465 kg | 144 mm | 1.9 W | — | 110 V |
| 3RT2025-2AF00 | 0.425 kg | 97 mm | — | — | — |
| 3RT2025-2AC24 | 0.467 kg | 144 mm | 2 W | — | 24 V |
| 3RT2025-2AC20 | 433.7 g | 97 mm | — | — | — |
| 3RT2025-2AB04 | 0.466 kg | 144 mm | 1.9 W | — | 24 V |
| 3RT1055-2AM36 | 3.227 kg | 170 mm | 5.2 W | 200 ... 220 V | 200 ... 220 V |
| 3RT1055-2AF36 | 3.26 kg | 170 mm | 5.2 W | 110 ... 127 V | 110 ... 127 V |

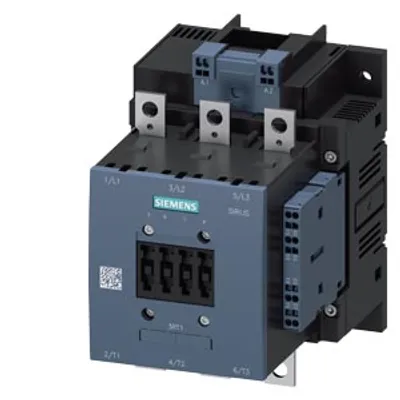

| 3RT1055-2AD36 | 3.215 kg | 170 mm | 5.2 W | 42 ... 48 V | 42 ... 48 V |
| 3RT1054-6AF36 | 3.188 kg | 170 mm | 5.2 W | 110 ... 127 V | 110 ... 127 V |
| 3RT1054-6AD36 | 3.175 kg | 170 mm | 5.2 W | 42 ... 48 V | 42 ... 48 V |
| 3RT1054-6AB36 | 3.175 kg | 170 mm | 5.2 W | 23 ... 26 V | 23 ... 26 V |
| 3RT2036-3AP60 | 0.968 kg | 130 mm | 6.5 W | — | 220 V |

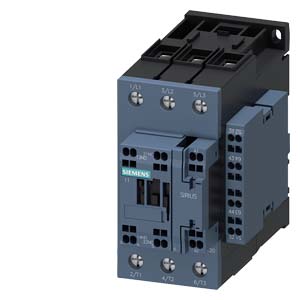

| 3RT2036-3AP06 | 1.031 kg | 130 mm | 6 W | — | 230 V |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
