SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | height | width | depth |
|---|---|---|---|---|---|
| 3RT2045-1NB30 | 1.8 W | 1.764 kg | 140 mm | 70 mm | 152 mm |

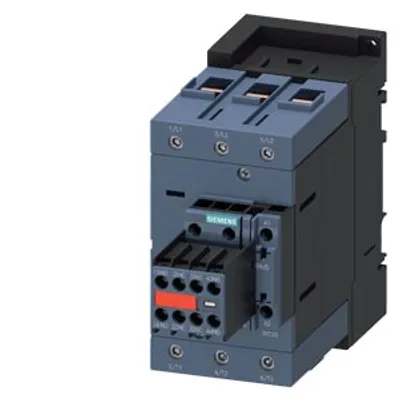

| 3RT2045-1KB44-3MA0 | 0.9 W | 1.816 kg | 140 mm | 70 mm | 195 mm |
| 3RT2045-1KB40-1AA0 | 0.9 W | 1.8 kg | 140 mm | 70 mm | 152 mm |

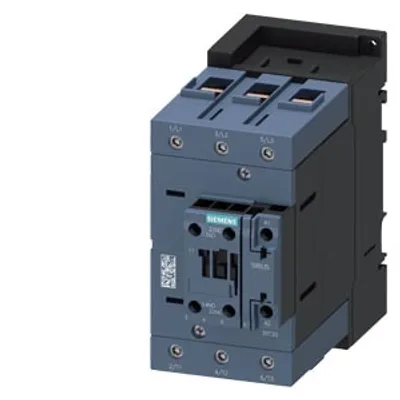

| 3RT2045-1AN60 | 8.8 W | 1.656 kg | 140 mm | 70 mm | 152 mm |

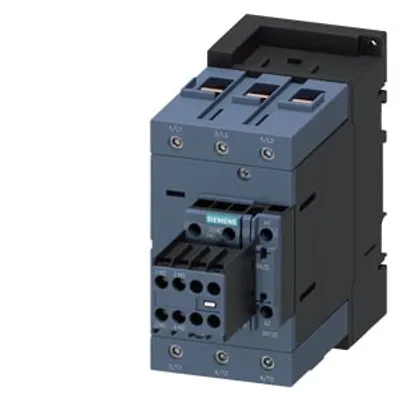

| 3RT2045-1AN24 | 25 W | 1.679 kg | 140 mm | 70 mm | 195 mm |
| 3RT2045-1AN20 | 25 W | 1.648 kg | 140 mm | 70 mm | 152 mm |
| 3RT2045-1AM20 | 25 W | 1.633 kg | 140 mm | 70 mm | 152 mm |

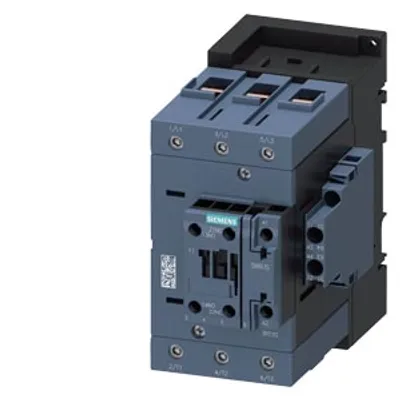

| 3RT2045-1AL26 | 25 W | 1.672 kg | 140 mm | 80 mm | 152 mm |
| 3RT2045-1AL24 | 25 W | 1.692 kg | 140 mm | 70 mm | 195 mm |
| 3RT2026-1AH20 | — | 0.393 kg | 85 mm | 45 mm | 97 mm |
| 3RT2026-1AH00 | — | 0.42 kg | 85 mm | 45 mm | 97 mm |
| 3RT2026-1AG60 | — | 0.395 kg | 85 mm | 45 mm | 97 mm |
| 3RT2028-1AR60 | — | 0.4 kg | 85 mm | 45 mm | 97 mm |
| 3RT1066-6PP35 | 3.4 W | 6.455 kg | 210 mm | 165 mm | 202 mm |
| 3RT2024-1AN60 | — | 0.387 kg | 85 mm | 45 mm | 97 mm |

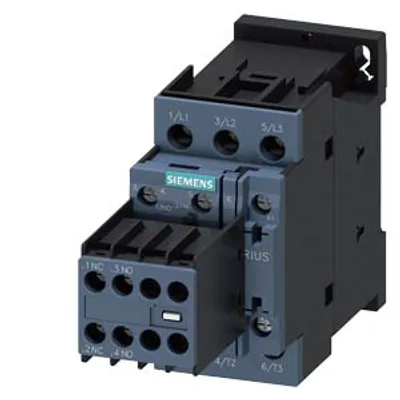

| 3RT2024-1AN24 | 2 W | 440 g | 85 mm | 45 mm | 141 mm |
| 3RT2024-1AB04 | 1.9 W | 452 g | 85 mm | 45 mm | 141 mm |
| 3RT2024-1AB00-1AA0 | — | 0.397 kg | 85 mm | 45 mm | 97 mm |
| 3RT2027-2AP00 | — | 0.436 kg | 102 mm | 45 mm | 97 mm |

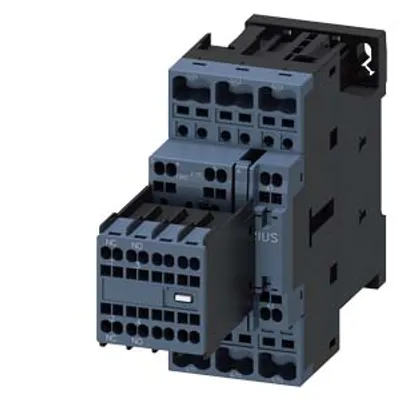

| 3RT2027-2AN24 | 2.7 W | 0.481 kg | 102 mm | 45 mm | 144 mm |
| 3RT2027-2AN20 | — | 0.437 kg | 102 mm | 45 mm | 97 mm |
| 3RT2027-2AM20 | — | 0.431 kg | 102 mm | 45 mm | 97 mm |

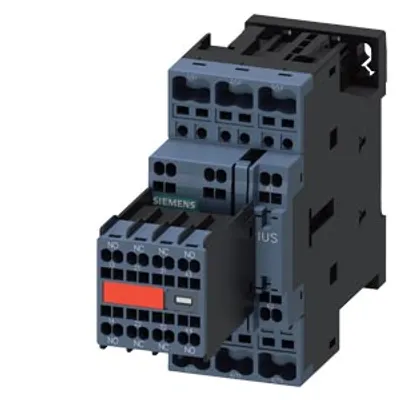

| 3RT2027-2AL24-3MA0 | 2.7 W | 0.489 kg | 102 mm | 45 mm | 144 mm |
| 3RT2027-2AL24 | 2.7 W | 0.478 kg | 102 mm | 45 mm | 144 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
