SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | minimum cross-section in main circuit at maximum AC-1 rated value | depth | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — without load current share typical |
|---|---|---|---|---|---|
| 3RT2028-2AV00 | 0.434 kg | 10 mm² | 97 mm | — | — |
| 3RT2028-2AP60 | 0.437 kg | 10 mm² | 97 mm | — | — |
| 3RT2028-2AP04-Z X95 | 497.6 g | 10 mm² | 144 mm | 9.6 W | 2.5 W |

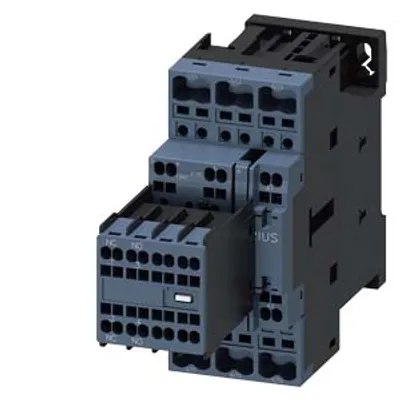

| 3RT2028-2AP04 | 497.6 g | 10 mm² | 144 mm | 9.6 W | 2.5 W |
| 3RT2028-2AP00-Z X95 | 0.437 kg | 10 mm² | 97 mm | — | — |
| 3RT2046-3SP30 | 1.742 kg | 50 mm² | 152 mm | 19.8 W | 3.1 W |
| 3RT2046-3SF30 | 1.758 kg | 50 mm² | 152 mm | 19.8 W | 3.5 W |

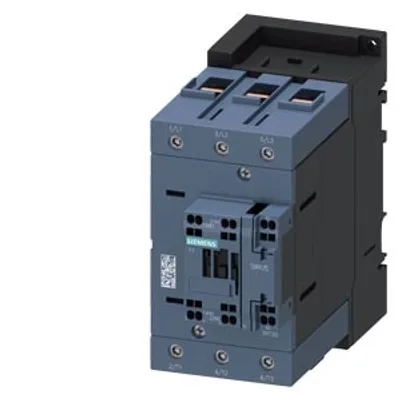

| 3RT2046-3AF00 | 1.628 kg | 50 mm² | 152 mm | 19.8 W | 7.3 W |
| 3RT2046-3AC20 | 1.635 kg | 50 mm² | 152 mm | 19.8 W | 25 W |
| 3RT2046-3AB00 | 1.637 kg | 50 mm² | 152 mm | 19.8 W | 7.3 W |
| 3RT2046-1SP30 | 1.74 kg | 50 mm² | 152 mm | 19.8 W | 3.5 W |
| 3RT2046-1SF30 | 1.739 kg | 50 mm² | 152 mm | 19.8 W | 3.5 W |
| 3RT2017-1BP42 | 0.276 kg | 4 mm² | 73 mm | 1.5 W | 4 W |
| 3RT2017-1BP41 | 0.279 kg | 4 mm² | 73 mm | 1.5 W | 4 W |
| 3RT2017-1BM42 | 0.281 kg | 4 mm² | 73 mm | 1.5 W | 4 W |
| 3RT2015-1MB41-0KT0 | 0.284 kg | 2.5 mm² | 73 mm | 0.6 W | 1.6 W |

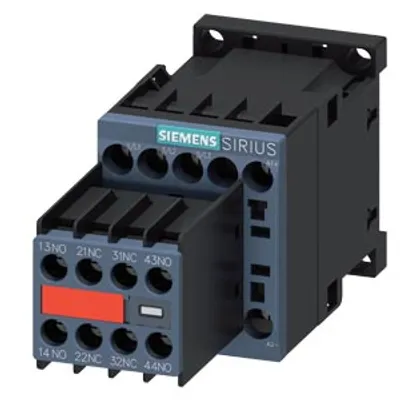

| 3RT2015-1BB44-3MA0 | 322.799 g | 2.5 mm² | 117 mm | 0.6 W | 4 W |

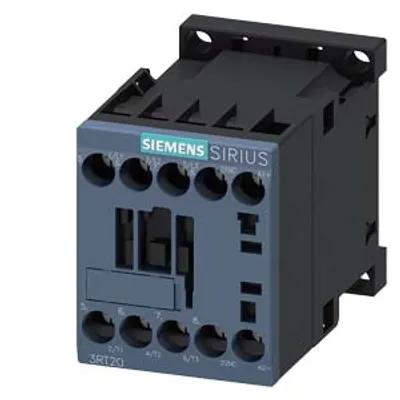

| 3RT2015-1BB42-1AA0 | 0.279 kg | 2.5 mm² | 73 mm | 0.6 W | 4 W |
| 3RT2015-1BB42-0CC0 | 0.279 kg | 2.5 mm² | 73 mm | 0.6 W | 4 W |
| 3RT2015-1BB42 | 0.278 kg | 2.5 mm² | 73 mm | 0.6 W | 4 W |

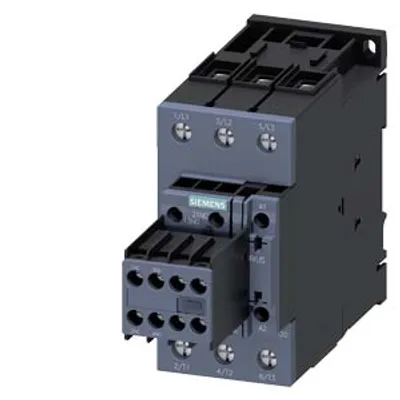

| 3RT2037-1AV04 | 1.057 kg | 25 mm² | 174 mm | 11.4 W | 6 W |

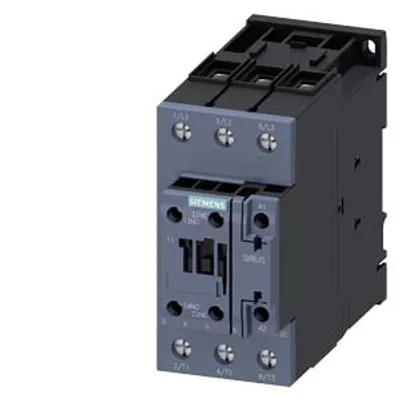

| 3RT2037-1AV00 | 0.954 kg | 25 mm² | 130 mm | — | — |
| 3RT2037-1AU00 | 958.8 g | 25 mm² | 130 mm | — | — |
| 3RT2037-1AT60 | 0.974 kg | 25 mm² | 130 mm | — | — |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
