SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | power loss [W] for rated value of the current — without load current share typical | control supply voltage at AC — at 50 Hz rated value | apparent pick-up power of magnet coil at AC — at 50 Hz | apparent holding power of magnet coil at AC — at 50 Hz |
|---|---|---|---|---|---|
| 3RT2035-1AK60-Z X95 | 948.8 g | — | — | — | — |
| 3RT2035-1AK60 | 948.8 g | — | — | — | — |
| 3RT2035-1AH20 | 0.954 kg | — | — | — | — |

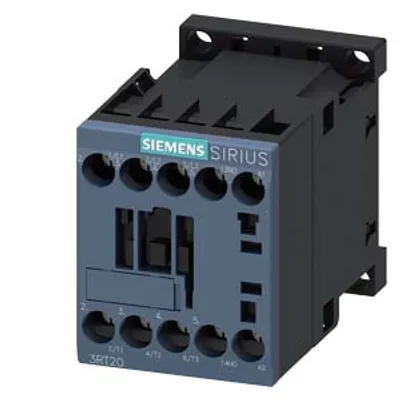

| 3RT2016-1AN21 | 0.214 kg | — | — | — | — |
| 3RT2016-1AM22 | 0.217 kg | 1.1 W | 208 V | 27 V·A | 4.2 V·A |
| 3RT2016-1AM21 | 0.218 kg | — | — | — | — |
| 3RT2016-1AM12 | 0.217 kg | 1.2 W | 189 V | — | — |
| 3RT2016-1AL02 | 0.219 kg | 1.1 W | 125 V | 27 V·A | 4.2 V·A |
| 3RT2016-1AK64-3MA0 | 0.252 kg | 1.2 W | 110 V | 26.4 V·A | 4.4 V·A |
| 3RT2018-1AN22 | 0.225 kg | 1.5 W | 220 V | 37 V·A | 5.7 V·A |
| 3RT2018-1AN21 | 0.22 kg | — | — | — | — |
| 3RT2015-1AP02 | 216.8 g | 1.1 W | 230 V | 27 V·A | 4.2 V·A |
| 3RT2015-1AG62 | 0.216 kg | 1.2 W | 100 V | 26.4 V·A | 4.4 V·A |
| 3RT2015-1AG61 | 0.216 kg | — | — | — | — |
| 3RT2015-1AF02 | 0.213 kg | 1.1 W | 110 V | 27 V·A | 4.2 V·A |
| 3RT2015-1AF01 | 217.8 g | — | — | — | — |
| 3RT2015-1AD02 | 0.217 kg | 1.1 W | 42 V | 27 V·A | 4.2 V·A |

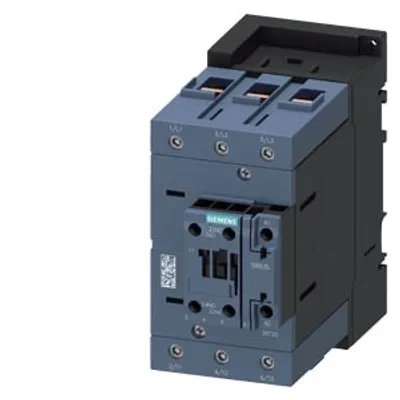

| 3RT2047-1AB00-1AA0 | 1.642 kg | 7.3 W | 24 V | 296 V·A | 19 V·A |
| 3RT2047-1AB00 | 1.644 kg | 7.3 W | 24 V | 296 V·A | 19 V·A |
| 3RT2046-3AP06 | 1.685 kg | 7.3 W | 230 V | 296 V·A | 19 V·A |
| 3RT2046-3AP00 | 1.651 kg | 7.3 W | 230 V | 296 V·A | 19 V·A |
| 3RT2046-3AN20 | 1.636 kg | 25 W | 220 V | 348 V·A | 25 V·A |
| 3RT2046-3AL20 | 1.637 kg | 25 W | 230 V | 348 V·A | 25 V·A |

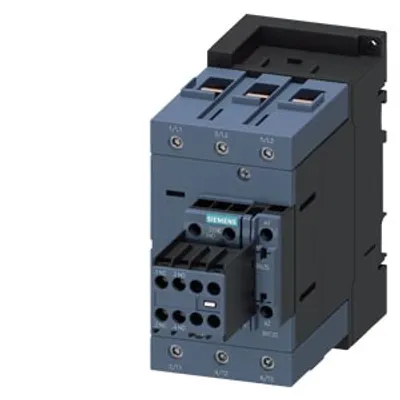

| 3RT2046-1NB34 | 1.797 kg | 1.8 W | 20 ... 33 V | 151 V·A | 3.1 V·A |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
