SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at AC in hot operating state per pole | power loss [W] for rated value of the current — without load current share typical | Net Weight | depth |
|---|---|---|---|---|---|
| 3RT2046-1NB30-0UA0 | 19.8 W | 6.6 W | 1.8 W | 1.751 kg | 152 mm |
| 3RT2046-1NB30 | 19.8 W | 6.6 W | 1.8 W | 1.752 kg | 152 mm |

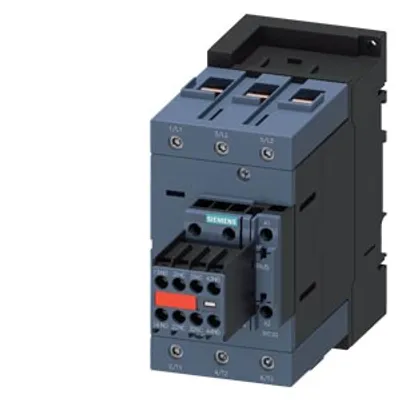

| 3RT2046-1KB44-3MA0 | 19.8 W | 6.6 W | 0.9 W | 1.816 kg | 195 mm |
| 3RT2046-1KB40-1AA0 | 19.8 W | 6.6 W | 0.9 W | 1.786 kg | 152 mm |
| 3RT2046-1KB40 | 19.8 W | 6.6 W | 0.9 W | 1.773 kg | 152 mm |
| 3RT2036-1AV60 | — | — | — | 0.952 kg | 130 mm |

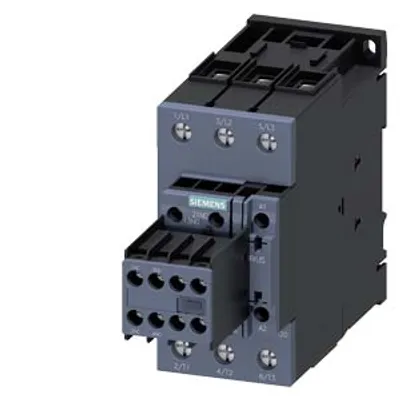

| 3RT2036-1AV04 | 12 W | 4 W | 6 W | 1.048 kg | 174 mm |
| 3RT2036-1AV00 | — | — | — | 0.96 kg | 130 mm |
| 3RT2036-1AU60 | — | — | — | 0.961 kg | 130 mm |
| 3RT2036-1AP00 | — | — | — | 948.8 g | 130 mm |
| 3RT2036-1AN60 | — | — | — | 0.946 kg | 130 mm |
| 3RT2036-1AN24 | 12 W | 4 W | 6.5 W | 1.048 kg | 174 mm |

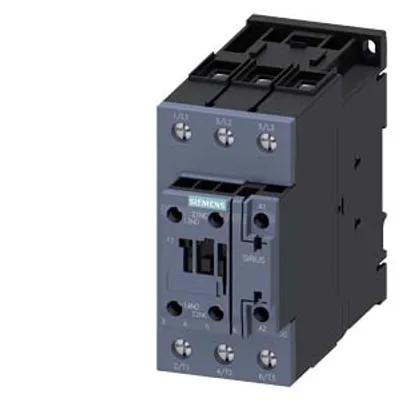

| 3RT2036-1AN20 | — | — | — | 950.8 g | 130 mm |
| 3RT2046-1AV00 | 19.8 W | 6.6 W | 7.3 W | 1.655 kg | 152 mm |
| 3RT2045-1AT60 | 15.9 W | 5.3 W | 7.4 W | 1.636 kg | 152 mm |
| 3RT2045-1AR64 | 15.9 W | 5.3 W | 8.8 W | 1.687 kg | 195 mm |
| 3RT2045-1AR60 | 15.9 W | 5.3 W | 8.8 W | 1.646 kg | 152 mm |
| 3RT2045-1AQ20 | 15.9 W | 5.3 W | 25 W | 1.638 kg | 152 mm |

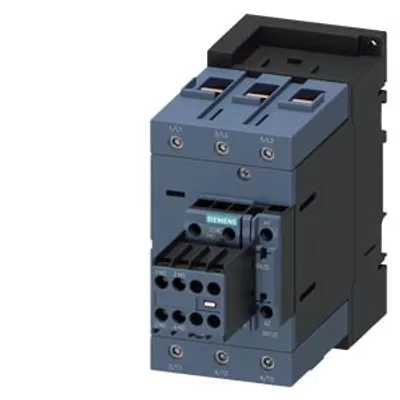

| 3RT2045-1AP64 | 15.9 W | 5.3 W | 8.8 W | 1.673 kg | 195 mm |
| 3RT2037-3AG20 | 11.4 W | 3.8 W | 6.5 W | 0.98 kg | 130 mm |
| 3RT2037-3AG16 | 11.4 W | 3.8 W | 6.9 W | 0.991 kg | 130 mm |
| 3RT2037-3AF06 | 11.4 W | 3.8 W | 6 W | 0.992 kg | 130 mm |
| 3RT2037-3AF04 | 11.4 W | 3.8 W | 6 W | 1.05 kg | 178 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
