SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | operational current — at AC-1 at 400 V at ambient temperature 40 °C rated value | operational current — at AC-1 — up to 690 V at ambient temperature 40 °C rated value | depth |
|---|---|---|---|---|---|
| 3RT2015-1BP41 | 4 W | 0.276 kg | 18 A | 18 A | 73 mm |
| 3RT2015-1BN41 | 4 W | 0.287 kg | 18 A | 18 A | 73 mm |
| 3RT2015-1BM42 | 4 W | 0.274 kg | 18 A | 18 A | 73 mm |

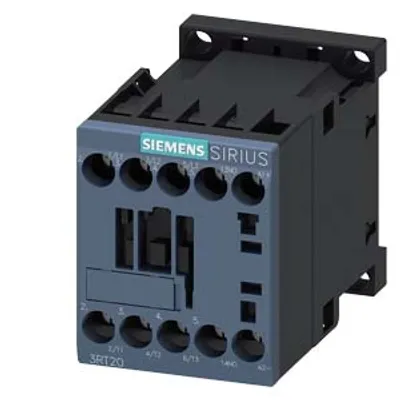

| 3RT2015-1BM41 | 4 W | 0.281 kg | 18 A | 18 A | 73 mm |

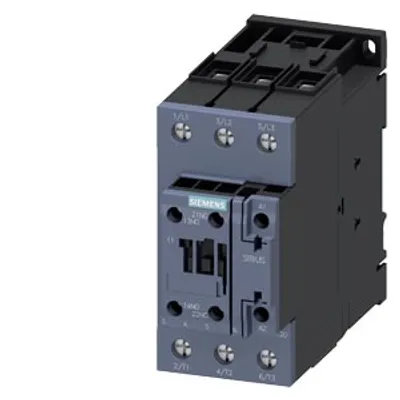

| 3RT2037-1KB40-1AA0 | 1 W | 1.094 kg | 80 A | 80 A | 130 mm |
| 3RT2037-1KB40 | 1 W | 1.087 kg | 80 A | 80 A | 130 mm |
| 3RT2037-1CL24-3MA0 | 6.5 W | 1.068 kg | 80 A | 80 A | 174 mm |

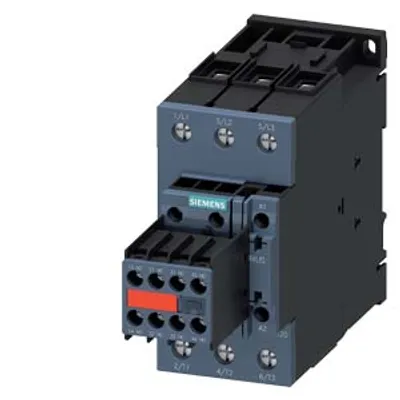

| 3RT2037-1CK64-3MA0 | 6.5 W | 1.068 kg | 80 A | 80 A | 174 mm |
| 3RT2037-1AV60 | — | 0.954 kg | — | — | 130 mm |

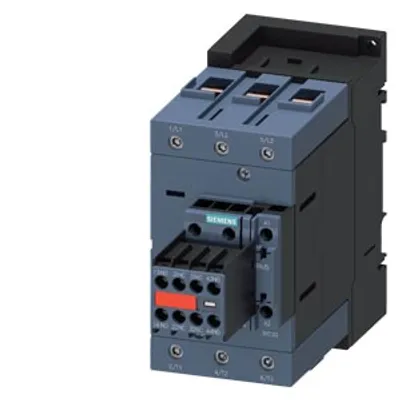

| 3RT2045-1CL24-3MA0 | 19 W | 1.706 kg | 125 A | 125 A | 195 mm |

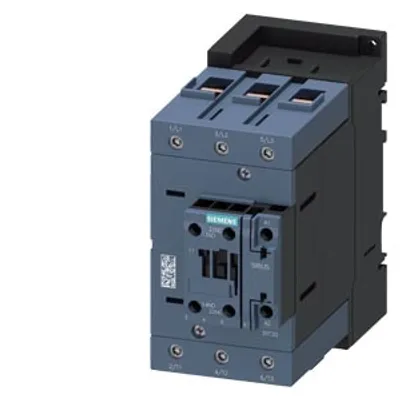

| 3RT2045-1AV60 | 7.4 W | 1.63 kg | 125 A | 125 A | 152 mm |

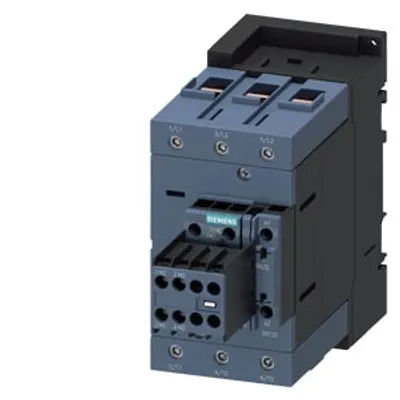

| 3RT2045-1AV04 | 7.3 W | 1.668 kg | 125 A | 125 A | 195 mm |
| 3RT2045-1AU00 | 7.3 W | 1.628 kg | 125 A | 125 A | 152 mm |

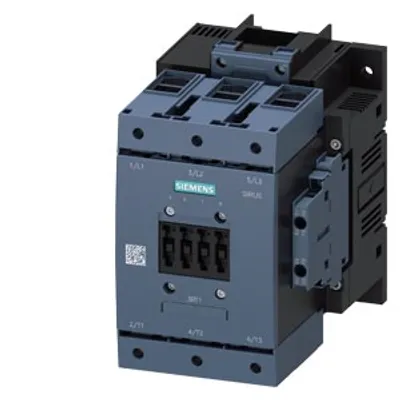

| 3RT1054-1AM36 | 5.2 W | 3.48 kg | 160 A | 160 A | 170 mm |
| 3RT2023-2AP60 | — | 0.417 kg | — | — | 97 mm |

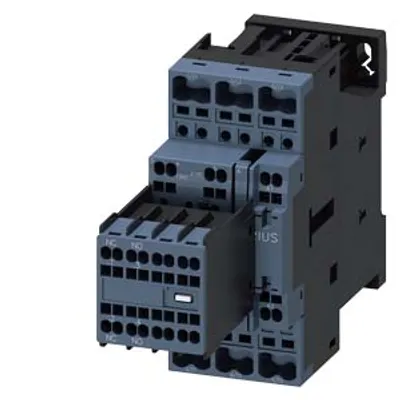

| 3RT2023-2AP04 | 1.9 W | 0.466 kg | 40 A | 40 A | 144 mm |
| 3RT1076-6SP36-3PA0 | 3.6 W | 10.15 kg | 610 A | 610 A | 225 mm |

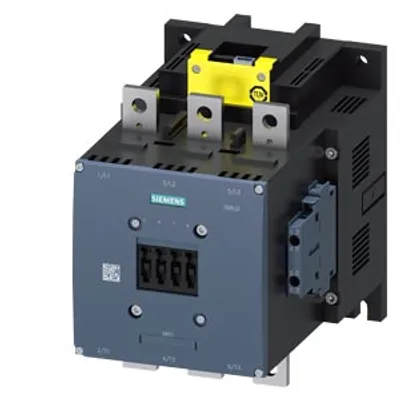

| 3RT1076-6SP36 | 3.6 W | 10.133 kg | 610 A | 610 A | 225 mm |
| 3RT1076-6SF36-3PA0 | 3.6 W | 10.419 kg | 610 A | 610 A | 225 mm |
| 3RT2045-1AC24 | 25 W | 1.677 kg | 125 A | 125 A | 195 mm |
| 3RT2045-1AC00 | 7.3 W | 1.648 kg | 125 A | 125 A | 152 mm |
| 3RT2028-2BF40 | 5.9 W | 0.614 kg | 50 A | 50 A | 107 mm |
| 3RT2028-2BB44-3MA0 | 5.9 W | 0.67 kg | 50 A | 50 A | 154 mm |
| 3RT2028-2BB44-Z X95 | 5.9 W | 683.9 g | 50 A | 50 A | 154 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
