SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | operational current — at AC-3 — at 400 V rated value | operational current — at AC-3 — at 500 V rated value | depth |
|---|---|---|---|---|---|
| 3RT2037-3AF00 | 6 W | 0.962 kg | 65 A | 65 A | 130 mm |

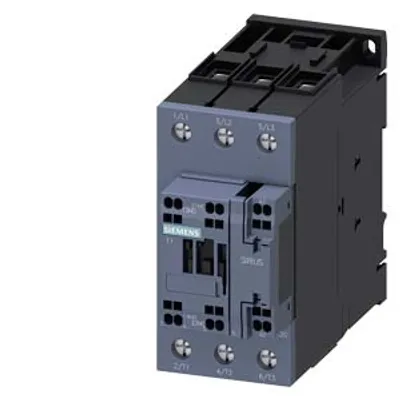

| 3RT2037-3AC20 | 6.5 W | 1.027 kg | 65 A | 65 A | 130 mm |
| 3RT2027-2AL20 | — | 0.412 kg | — | — | 97 mm |

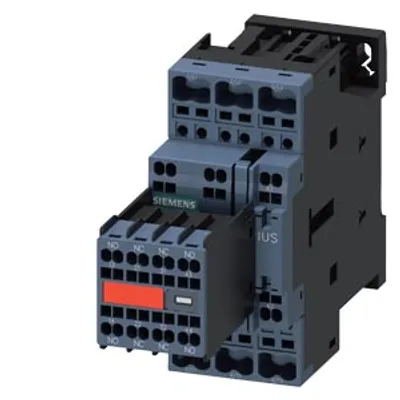

| 3RT2027-2AK64-3MA0 | 2.7 W | 0.501 kg | 32 A | 32 A | 144 mm |
| 3RT2027-2AK60-1AA0 | — | 0.444 kg | — | — | 97 mm |
| 3RT2015-2AF01 | 1.1 W | 243.12 g | 7 A | 6 A | 73 mm |
| 3RT2015-2AD02 | 1.1 W | 0.235 kg | 7 A | 6 A | 73 mm |
| 3RT2015-2AD01 | 1.1 W | 0.237 kg | 7 A | 6 A | 73 mm |

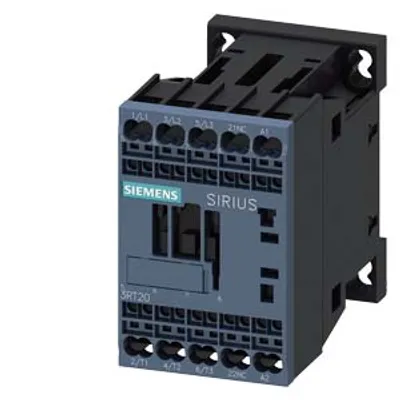

| 3RT2015-2AB02 | 1.1 W | 0.233 kg | 7 A | 6 A | 73 mm |
| 3RT2015-2AB01-1AA0 | 1.1 W | 0.237 kg | 7 A | 6 A | 73 mm |
| 3RT2024-2CK64-3MA0 | 2 W | 0.477 kg | 12 A | 12 A | 144 mm |

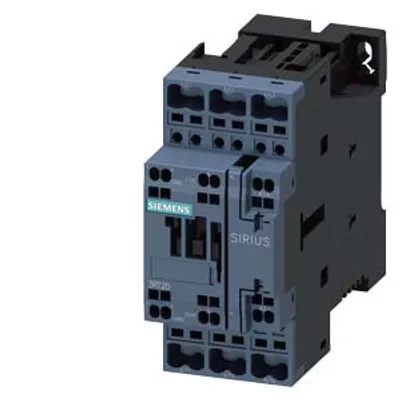

| 3RT2024-2BW40 | 5.9 W | 0.591 kg | 12 A | 12 A | 107 mm |
| 3RT2024-2BM40 | 5.9 W | 0.608 kg | 12 A | 12 A | 107 mm |
| 3RT2024-2BB44 | 5.9 W | 0.655 kg | 12 A | 12 A | 154 mm |
| 3RT2024-2BB40-0CC0 | 5.9 W | 627.5 g | 12 A | 12 A | 107 mm |
| 3RT2023-2AL20 | — | 0.42 kg | — | — | 97 mm |
| 3RT2023-2AK60 | — | 429.996 g | — | — | 97 mm |
| 3RT2023-2AH00 | — | 0.423 kg | — | — | 97 mm |

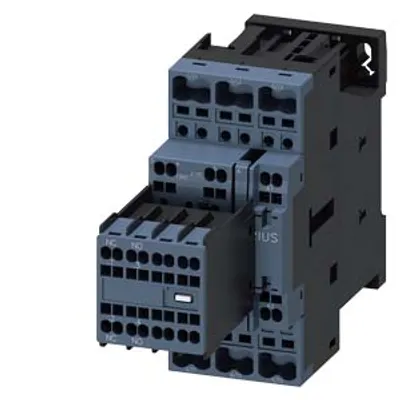

| 3RT2023-2AG24 | 2 W | 0.465 kg | 9 A | 9 A | 144 mm |
| 3RT2023-1DB40 | 5.9 W | 0.619 kg | 9 A | 9 A | 107 mm |

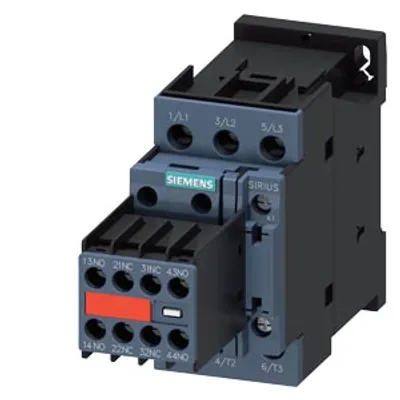

| 3RT2023-1CL24-3MA0 | 2 W | 0.47 kg | 9 A | 9 A | 141 mm |

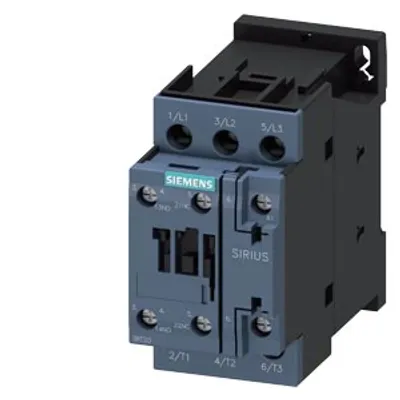

| 3RT2023-1CC20 | — | 0.39 kg | — | — | 97 mm |

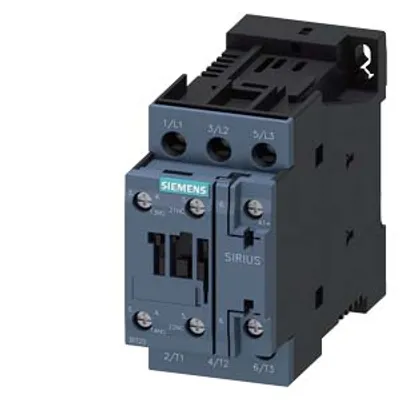

| 3RT2023-1BW40 | 5.9 W | 0.567 kg | 9 A | 9 A | 107 mm |
| 3RT2023-1BN40 | 5.9 W | 0.559 kg | 9 A | 9 A | 107 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
