SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | size of contactor | Net Weight | minimum cross-section in main circuit at maximum AC-1 rated value | height | depth |
|---|---|---|---|---|---|
| 3RT2028-2BB44 | S0 | 683.9 g | 10 mm² | 102 mm | 154 mm |
| 3RT2028-2BB40-0CC0 | S0 | 0.625 kg | 10 mm² | 102 mm | 107 mm |
| 3RT2028-2BB40-Z X95 | S0 | 617.98 g | 10 mm² | 102 mm | 107 mm |

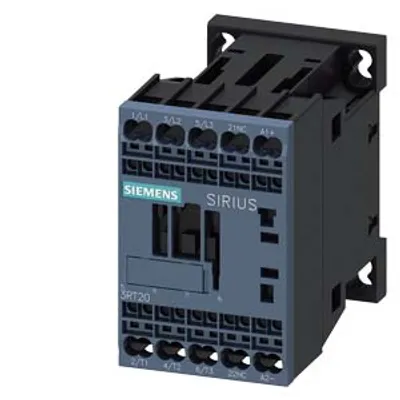

| 3RT2017-2LF42 | S00 | 0.304 kg | 4 mm² | 70 mm | 73 mm |
| 3RT2036-1AH00 | S2 | 0.966 kg | 25 mm² | 114 mm | 130 mm |
| 3RT2036-1AG64 | S2 | 1.068 kg | 25 mm² | 114 mm | 174 mm |
| 3RT2036-1AG60 | S2 | 0.957 kg | 25 mm² | 114 mm | 130 mm |
| 3RT2036-1AG24 | S2 | 1.053 kg | 25 mm² | 114 mm | 174 mm |

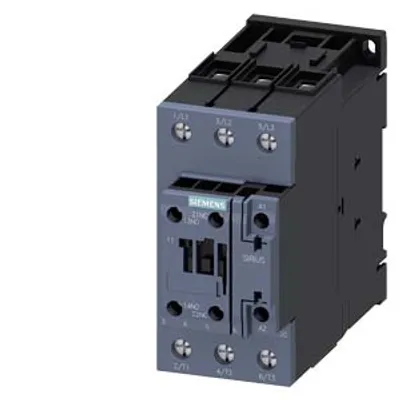

| 3RT2036-1AG20 | S2 | 944.8 g | 25 mm² | 114 mm | 130 mm |
| 3RT2036-1AF04 | S2 | 1.048 kg | 25 mm² | 114 mm | 174 mm |
| 3RT2038-1AT60 | S2 | 0.963 kg | 35 mm² | 114 mm | 130 mm |
| 3RT2038-1AR64 | S2 | 1.048 kg | 35 mm² | 114 mm | 174 mm |
| 3RT2038-1AR60 | S2 | 0.951 kg | 35 mm² | 114 mm | 130 mm |

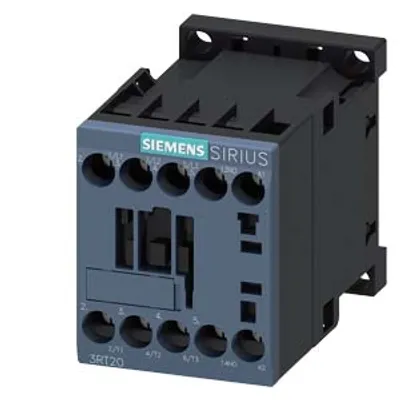

| 3RT2016-1AV01 | S00 | 221.18 g | 4 mm² | 58 mm | 73 mm |
| 3RT2016-1AU02 | S00 | 0.222 kg | 4 mm² | 58 mm | 73 mm |
| 3RT2016-1AU01-1AA0 | S00 | 0.225 kg | 4 mm² | 58 mm | 73 mm |
| 3RT2016-1AU01 | S00 | 0.219 kg | 4 mm² | 58 mm | 73 mm |
| 3RT2016-1AT61 | S00 | 0.221 kg | 4 mm² | 58 mm | 73 mm |
| 3RT2038-1AG20 | S2 | 0.956 kg | 35 mm² | 114 mm | 130 mm |

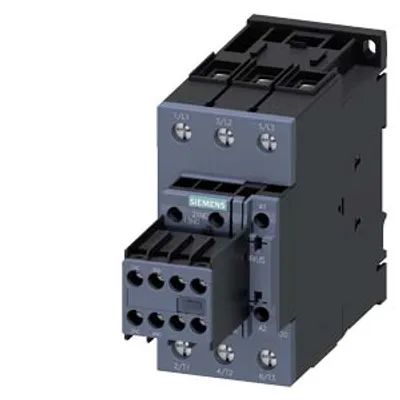

| 3RT2038-1AF04 | S2 | 1.037 kg | 35 mm² | 114 mm | 174 mm |
| 3RT2038-1AF00 | S2 | 0.964 kg | 35 mm² | 114 mm | 130 mm |
| 3RT2038-1AD04 | S2 | 1.055 kg | 35 mm² | 114 mm | 174 mm |
| 3RT2038-1AD00 | S2 | 0.964 kg | 35 mm² | 114 mm | 130 mm |
| 3RT2038-1AC24 | S2 | 1.044 kg | 35 mm² | 114 mm | 174 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1 | 400 V |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
