SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | control supply voltage at DC rated value | depth | power loss [W] for rated value of the current — without load current share typical | control supply voltage at AC — at 50 Hz rated value |
|---|---|---|---|---|---|
| 3RT2015-1BB41 | 277.8 g | 24 V | 73 mm | — | — |

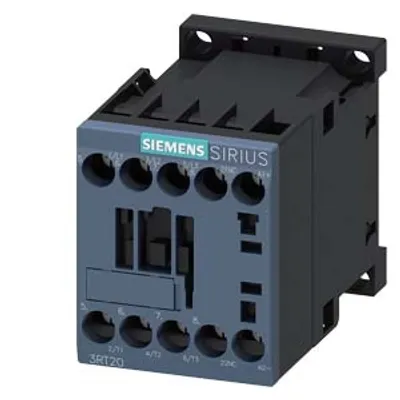

| 3RT2015-1BA42 | 0.282 kg | 12 V | 73 mm | 4 W | — |

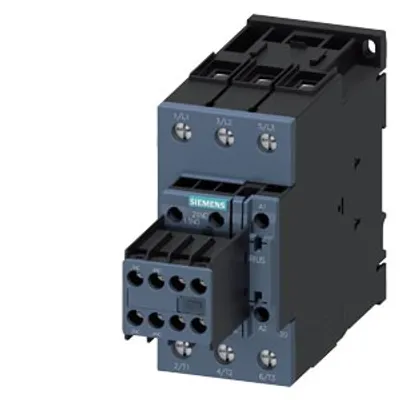

| 3RT2037-1NP34 | 1.158 kg | 175 ... 280 V | 174 mm | 1 W | 175 ... 280 V |
| 3RT2037-1NP30 | 1.083 kg | 175 ... 280 V | 130 mm | 1 W | 175 ... 280 V |
| 3RT2037-1NF34 | 1.179 kg | 83 ... 155 V | 174 mm | 1 W | 83 ... 155 V |

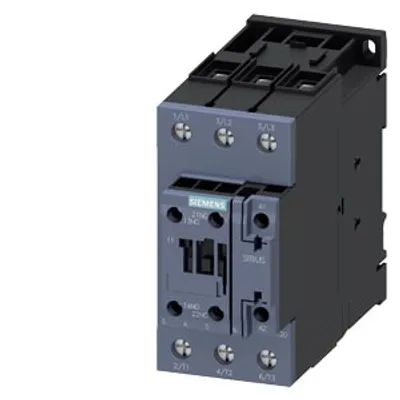

| 3RT2037-1NF30 | 1.092 kg | 83 ... 155 V | 130 mm | 1 W | 83 ... 155 V |
| 3RT2037-1AP00-1AA0 | 0.956 kg | — | 130 mm | — | — |
| 3RT2037-1AP00 | 956.8 g | — | 130 mm | — | — |

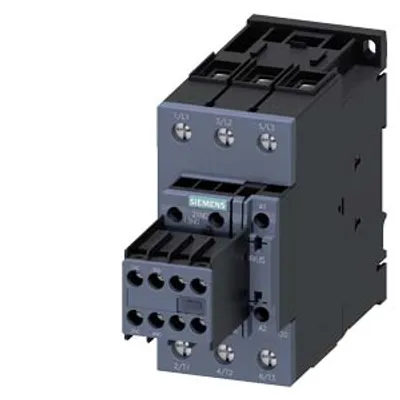

| 3RT2037-1AN24 | 1.05 kg | — | 174 mm | 6.5 W | 220 V |
| 3RT2037-1AN20 | 954.8 g | — | 130 mm | — | — |
| 3RT2037-1AN10 | 0.964 kg | — | 130 mm | — | — |
| 3RT1056-2AT36 | 3.28 kg | 575 ... 600 V | 170 mm | 5.2 W | 575 ... 600 V |
| 3RT1056-2AS36 | 3.235 kg | 500 ... 550 V | 170 mm | 5.2 W | 500 ... 550 V |
| 3RT1056-2AR36 | 3.269 kg | 440 ... 480 V | 170 mm | 5.2 W | 440 ... 480 V |
| 3RT1056-2AP36 | 3.225 kg | 220 ... 240 V | 170 mm | 5.2 W | 220 ... 240 V |
| 3RT1055-6AB36 | 3.25 kg | 23 ... 26 V | 170 mm | 5.2 W | 23 ... 26 V |
| 3RT1055-2NP36 | 3.218 kg | 200 ... 277 V | 170 mm | 2.8 W | 200 ... 277 V |
| 3RT1055-2NF36 | 3.218 kg | 96 ... 127 V | 170 mm | 2.8 W | 96 ... 127 V |
| 3RT1055-2NB36 | 3.294 kg | 21 ... 27.3 V | 170 mm | 2.8 W | 21 ... 27.3 V |
| 3RT2025-2BB40 | 614.98 g | 24 V | 107 mm | 5.9 W | — |
| 3RT2025-2AV04 | 0.463 kg | — | 144 mm | 1.9 W | 400 V |
| 3RT2025-2AV00 | 0.421 kg | — | 97 mm | — | — |

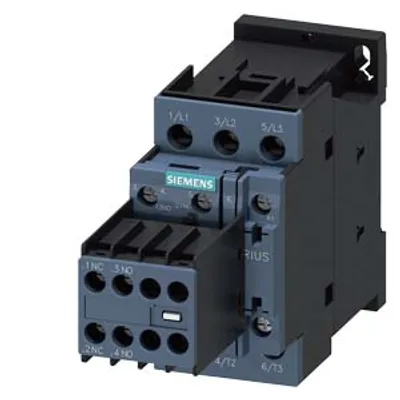

| 3RT2025-1AG24 | 445 g | — | 141 mm | 2 W | 110 V |
| 3RT2025-1AG20 | 385.68 g | — | 97 mm | — | — |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
