SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — without load current share typical | Net Weight | minimum cross-section in main circuit at maximum AC-1 rated value | depth |
|---|---|---|---|---|---|
| 3RT2046-3AP60 | 19.8 W | 8.8 W | 1.629 kg | 50 mm² | 152 mm |
| 3RT2046-1SB30 | 19.8 W | 3.5 W | 1.748 kg | 50 mm² | 152 mm |
| 3RT2046-1NP34 | 19.8 W | 1.8 W | 1.766 kg | 50 mm² | 195 mm |
| 3RT2046-1NP30 | 19.8 W | 1.8 W | 1.737 kg | 50 mm² | 152 mm |
| 3RT2046-1NF34 | 19.8 W | 1.8 W | 1.774 kg | 50 mm² | 195 mm |
| 3RT2046-1NF30 | 19.8 W | 1.8 W | 1.831 kg | 50 mm² | 152 mm |
| 3RT2046-1NE30 | 19.8 W | 1.8 W | 1.768 kg | 50 mm² | 152 mm |
| 3RT2046-1NB34-3MA0 | 19.8 W | 1.8 W | 1.811 kg | 50 mm² | 195 mm |
| 3RT2036-1AP60 | — | — | 0.958 kg | 25 mm² | 130 mm |
| 3RT2036-1AP04-3MA0 | 12 W | 6 W | 1.051 kg | 25 mm² | 174 mm |
| 3RT2036-1AP04 | 12 W | 6 W | 1.03 kg | 25 mm² | 174 mm |
| 3RT2036-1AP00-1AA0 | — | — | 0.952 kg | 25 mm² | 130 mm |
| 3RT2016-1AB02-Z W97 | 0.9 W | 1.1 W | 213.8 g | 4 mm² | 73 mm |
| 3RT2016-1AB02 | 0.9 W | 1.1 W | 213.8 g | 4 mm² | 73 mm |

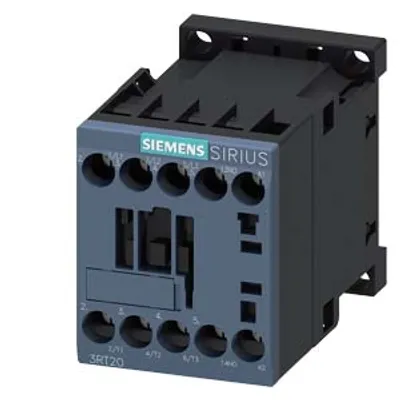

| 3RT2016-1AB01-1AA0 | — | — | 0.222 kg | 4 mm² | 73 mm |
| 3RT2016-1AB01-Z X95 | — | — | 217.8 g | 4 mm² | 73 mm |
| 3RT2016-1AB01-Z W97 | — | — | 217.8 g | 4 mm² | 73 mm |
| 3RT1065-6SP36-3PA0 | 54 W | 3.4 W | 6.177 kg | 185 mm² | 202 mm |
| 3RT2015-1KB42 | 0.6 W | 2.8 W | 0.281 kg | 2.5 mm² | 73 mm |
| 3RT2015-1KB41 | 0.6 W | 2.8 W | 281.8 g | 2.5 mm² | 73 mm |
| 3RT2015-1JB42 | 0.6 W | 2.8 W | 0.28 kg | 2.5 mm² | 73 mm |
| 3RT2015-1JB41 | 0.6 W | 2.8 W | 285.79 g | 2.5 mm² | 73 mm |
| 3RT2015-1BB41-1AA0 | 0.6 W | 4 W | 0.286 kg | 2.5 mm² | 73 mm |
| 3RT2015-1BB41-0CC0 | 0.6 W | 4 W | 0.281 kg | 2.5 mm² | 73 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
