SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | control supply voltage at AC — at 50 Hz rated value | width | depth |
|---|---|---|---|---|---|

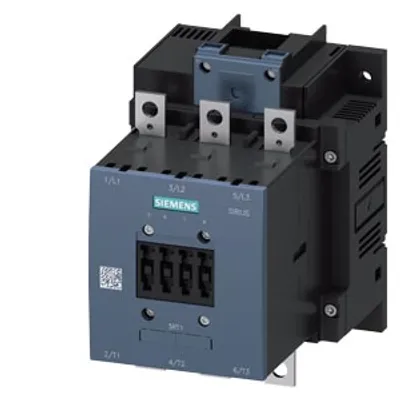

| 3RT1056-6AP30 | 5.2 W | 3.135 kg | 220 ... 240 V | 140 mm | 170 mm |
| 3RT1056-6AM36-0UA0 | 5.2 W | 3.235 kg | 200 ... 220 V | 140 mm | 170 mm |
| 3RT1056-6AM36 | 5.2 W | 3.194 kg | 200 ... 220 V | 120 mm | 170 mm |
| 3RT1056-6AF36-3PA0 | 5.2 W | 3.256 kg | 110 ... 127 V | 120 mm | 170 mm |
| 3RT1056-6AF36-0UA0 | 5.2 W | 3.254 kg | 110 ... 127 V | 120 mm | 170 mm |
| 3RT2016-2FB42 | 4 W | 292.8 g | — | 45 mm | 73 mm |
| 3RT2016-2FB41-1AA0 | 4 W | 0.299 kg | — | 45 mm | 73 mm |
| 3RT2016-2FB41 | 4 W | 290.8 g | — | 45 mm | 73 mm |
| 3RT2016-2EP02 | 1.1 W | 0.247 kg | 230 V | 45 mm | 117 mm |
| 3RT2035-3AG20 | 6.5 W | 0.947 kg | 110 V | 55 mm | 130 mm |

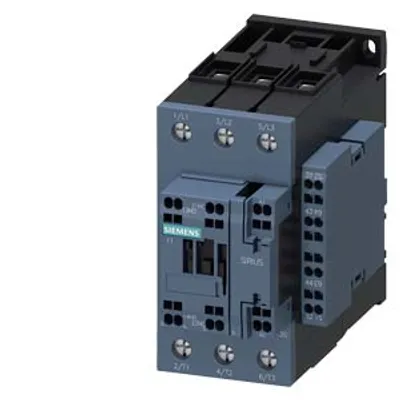

| 3RT2035-3AF06 | 6 W | 0.984 kg | 110 V | 75 mm | 130 mm |

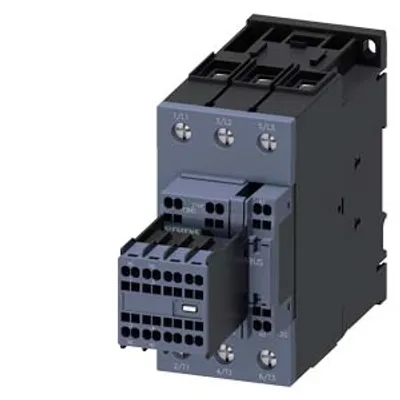

| 3RT2035-3AF04 | 6 W | 1.064 kg | 110 V | 55 mm | 178 mm |

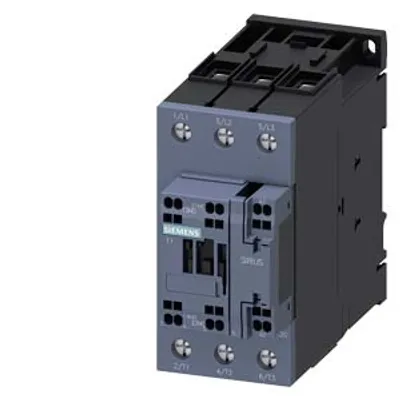

| 3RT2035-3AF00 | 6 W | 0.942 kg | 110 V | 55 mm | 130 mm |
| 3RT2035-3AC20 | 6.5 W | 0.997 kg | 24 V | 55 mm | 130 mm |
| 3RT2035-3AB00-1AA0 | 6 W | 0.949 kg | 24 V | 55 mm | 130 mm |
| 3RT2035-1AU04 | 6 W | 1.048 kg | 240 V | 55 mm | 174 mm |
| 3RT2035-1AU00 | — | 0.96 kg | — | 55 mm | 130 mm |
| 3RT2035-1AT60 | — | 0.956 kg | — | 55 mm | 130 mm |

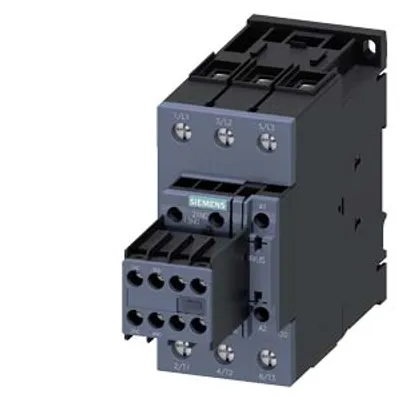

| 3RT2035-1AR64 | 6.5 W | 1.048 kg | 400 V | 55 mm | 174 mm |
| 3RT2035-1AR60 | — | 0.955 kg | — | 55 mm | 130 mm |

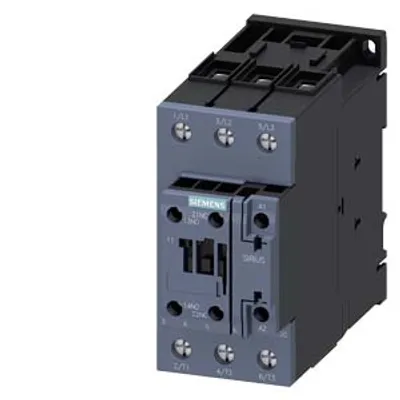

| 3RT2035-1AQ20 | — | 0.947 kg | — | 55 mm | 130 mm |
| 3RT2038-1AQ20 | — | 0.959 kg | — | 55 mm | 130 mm |
| 3RT2038-1AP64 | 6.5 W | 1.048 kg | 220 V | 55 mm | 174 mm |
| 3RT2038-1AP60 | — | 0.977 kg | — | 55 mm | 130 mm |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
