SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | height | depth | type of connectable conductor cross-sections — for AWG cables for main contacts |
|---|---|---|---|---|---|

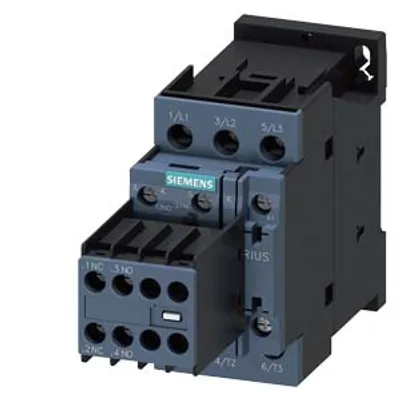

| 3RT2025-1AF04 | 1.9 W | 451.99 g | 85 mm | 141 mm | 2x (16 ... 12), 2x (14 ... 8) |
| 3RT2025-1AF00 | — | 0.39 kg | 85 mm | 97 mm | — |

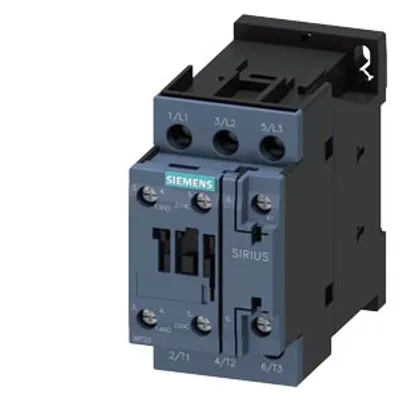

| 3RT2025-1AD20-1AA0 | — | 0.394 kg | 85 mm | 97 mm | — |
| 3RT2025-1AD20 | — | 0.389 kg | 85 mm | 97 mm | — |
| 3RT1064-2AP36 | 7.4 W | 6.12 kg | 210 mm | 202 mm | 2/0 ... 500 kcmil |
| 3RT1064-2AM36 | 7.4 W | 6.143 kg | 210 mm | 202 mm | 2/0 ... 500 kcmil |
| 3RT1064-2AF36 | 7.4 W | 6.16 kg | 210 mm | 202 mm | 2/0 ... 500 kcmil |
| 3RT1064-2AD36 | 7.4 W | 6.122 kg | 210 mm | 202 mm | 2/0 ... 500 kcmil |
| 3RT1064-2AB36 | 7.4 W | 6.212 kg | 210 mm | 202 mm | 2/0 ... 500 kcmil |
| 3RT1056-7AB36-0SF1 | 5.2 W | 3.655 kg | 172 mm | 170 mm | 2x 1/0 |
| 3RT1056-7AB36 | 5.2 W | 3.605 kg | 172 mm | 170 mm | 2x 1/0 |

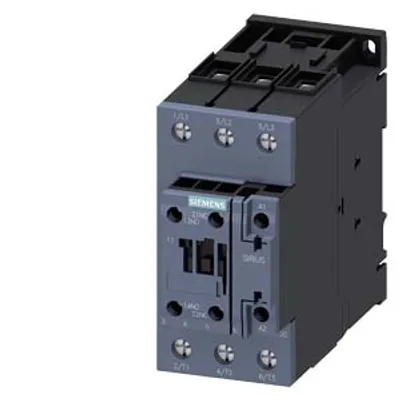

| 3RT2037-1AG60 | — | 0.963 kg | 114 mm | 130 mm | — |

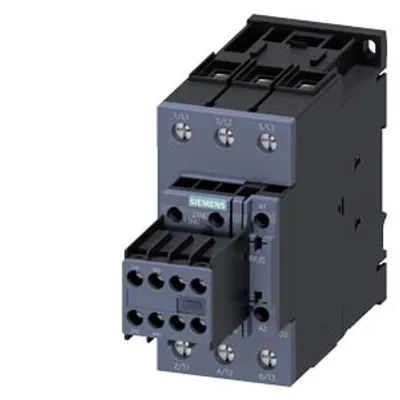

| 3RT2037-1AG24 | 6.5 W | 1.047 kg | 114 mm | 174 mm | 2x (18 ... 2), 1x (18 ... 1) |
| 3RT2037-1AG20 | — | 0.956 kg | 114 mm | 130 mm | — |
| 3RT2037-1AF04 | 6 W | 1.051 kg | 114 mm | 174 mm | 2x (18 ... 2), 1x (18 ... 1) |
| 3RT2037-1AC20 | — | 962.8 g | 114 mm | 130 mm | — |
| 3RT2037-1AB04 | 6 W | 1.023 kg | 114 mm | 174 mm | 2x (18 ... 2), 1x (18 ... 1) |
| 3RT2027-2AC20 | — | 0.429 kg | 102 mm | 97 mm | — |
| 3RT2027-2AB04 | 2.5 W | 0.478 kg | 102 mm | 144 mm | 2x (18 ... 8) |
| 3RT2027-2AB00 | — | 449.8 g | 102 mm | 97 mm | — |

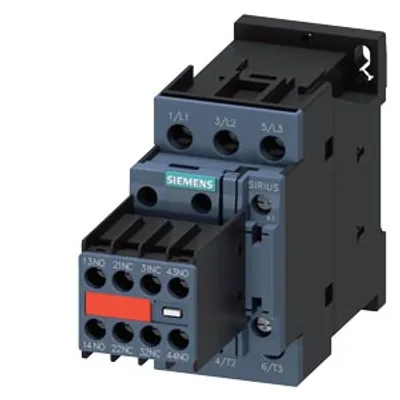

| 3RT2027-1CK64-3MA0 | 2.7 W | 0.48 kg | 85 mm | 141 mm | 2x (16 ... 12), 2x (14 ... 8) |
| 3RT2027-1BW40 | 5.9 W | 0.578 kg | 85 mm | 107 mm | 2x (16 ... 12), 2x (14 ... 8) |
| 3RT2027-1BP40 | 5.9 W | 0.584 kg | 85 mm | 107 mm | 2x (16 ... 12), 2x (14 ... 8) |

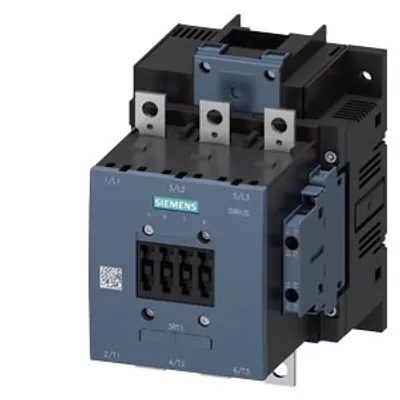

| 3RT1056-6AP36 | 5.2 W | 3.235 kg | 172 mm | 170 mm | 4 ... 250 kcmil |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
