SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | control supply voltage at DC rated value | depth | global warming potential [CO2 eq] / during manufacturing |
|---|---|---|---|---|---|
| 3RT2017-1HB42 | 2.8 W | 0.283 kg | 24 V | 73 mm | 1.42 kg |
| 3RT2017-1HB41 | 2.8 W | 0.281 kg | 24 V | 73 mm | 1.42 kg |
| 3RT2017-1HA41 | 2.8 W | 0.279 kg | 12 V | 73 mm | 1.42 kg |
| 3RT2017-1FB44-3MA0 | 4 W | 0.328 kg | 24 V | 117 mm | 1.42 kg |
| 3RT2017-1BB42 | 4 W | 275.8 g | 24 V | 73 mm | 1.42 kg |
| 3RT2017-1BB41-1AA0 | 4 W | 0.279 kg | 24 V | 73 mm | 1.42 kg |
| 3RT2017-1BB41-0CC0 | 4 W | 276.8 g | 24 V | 73 mm | 1.42 kg |
| 3RT2017-1BB41 | 4 W | 277.8 g | 24 V | 73 mm | 1.42 kg |

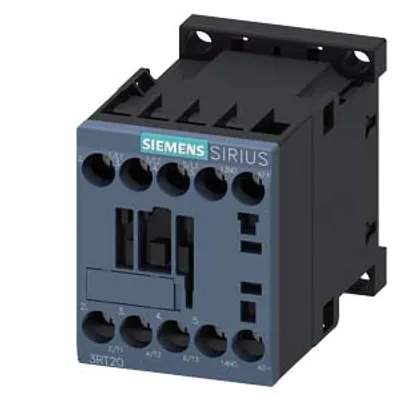

| 3RT2017-1BA41 | 4 W | 0.282 kg | 12 V | 73 mm | 1.42 kg |
| 3RT1054-1AF36 | 5.2 W | 3.555 kg | 110 ... 127 V | 170 mm | 17 kg |
| 3RT1054-1AD36 | 5.2 W | 3.516 kg | 42 ... 48 V | 170 mm | 17 kg |
| 3RT2023-2AP00 | — | 416.18 g | — | 97 mm | — |
| 3RT2023-2AN24 | 2 W | 0.459 kg | — | 144 mm | 1.9 kg |
| 3RT2023-2AN20 | — | 0.417 kg | — | 97 mm | — |
| 3RT2023-2AG20 | — | 433.996 g | — | 97 mm | — |
| 3RT2023-2AF00 | — | 0.422 kg | — | 97 mm | — |
| 3RT2028-2BM40 | 5.9 W | 0.618 kg | 220 V | 107 mm | 2.65 kg |

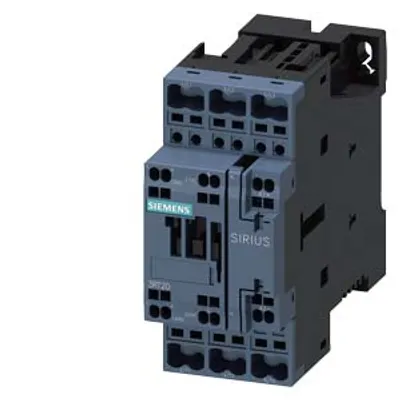

| 3RT2028-2BG40 | 5.9 W | 0.596 kg | 125 V | 107 mm | 2.65 kg |
| 3RT2028-2BF44 | 5.9 W | 0.662 kg | 110 V | 154 mm | 2.65 kg |
| 3RT2046-3NB30 | 1.8 W | 1.765 kg | 20 ... 33 V | 152 mm | 9.35 kg |
| 3RT2046-3KB44-3MA0 | 0.9 W | 1.831 kg | 24 V | 152 mm | — |
| 3RT2046-3KB40 | 0.9 W | 1.762 kg | 24 V | 152 mm | 9.35 kg |
| 3RT2046-3CB04-3MA0 | 7.3 W | 1.698 kg | — | 198 mm | — |
| 3RT2046-3AR60 | 8.8 W | 1.627 kg | — | 152 mm | 7.66 kg |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
