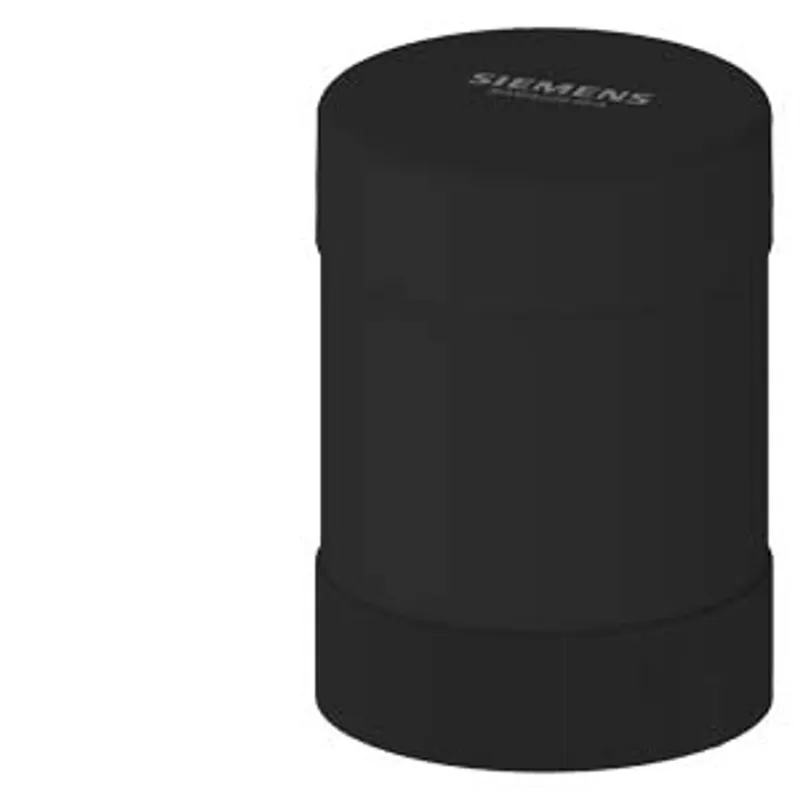

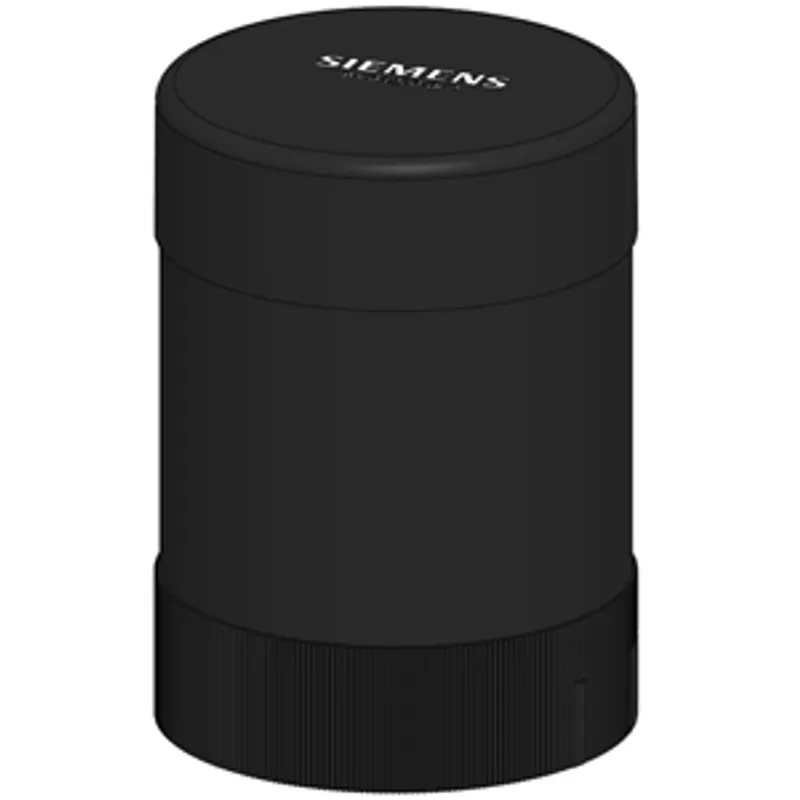

Siemens 8WD4240-0FA
Buzzer element, continuous tone or pulsating, adjustable, 85 dB, 115 V AC/DC, diameter 50 mm
- MPN
- 8WD4240-0FA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WD4240-0FA?
Buzzer element, continuous tone or pulsating, adjustable, 85 dB, 115 V AC/DC, diameter 50 mm
Specifications
General
| product brand name | SIRIUS |
| product designation | Buzzer element |
General technical data
| product function adjustable acoustic signal | Yes |
| type of voltage of the operating voltage | AC/DC |
| operating voltage — 1 at AC at 50 Hz rated value | 115 V |
| operating voltage — 1 at AC at 60 Hz rated value | 115 V |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage | -10 % |
| consumed current maximum | 35 mA |
| tone frequency — 1 | 2.5 kHz |

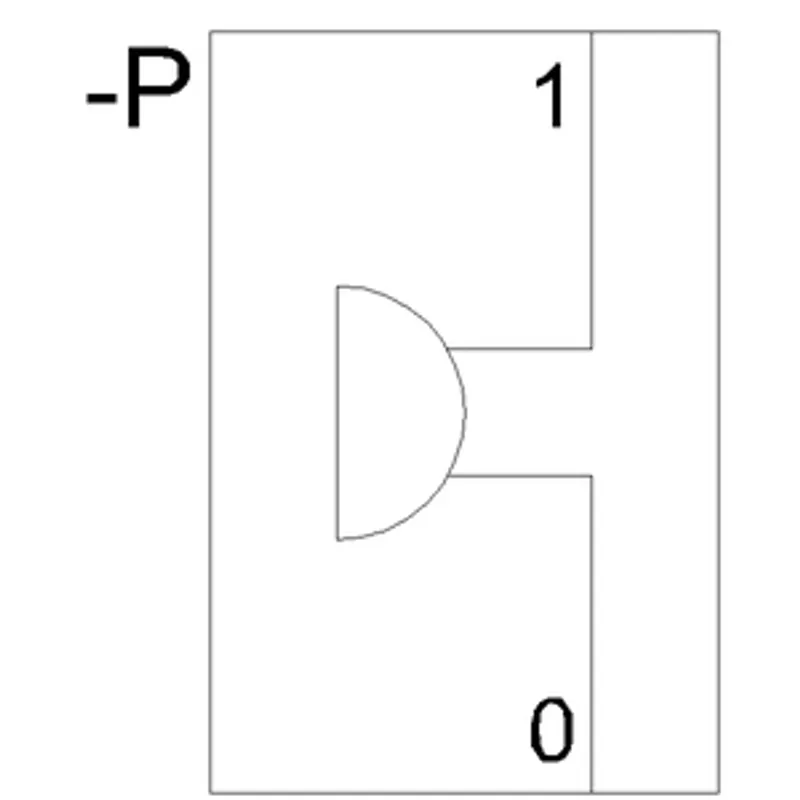

| reference code according to EN 61346-2 | P |
Acoustic signal
| type of acoustic signal | continuous tone / pulse tone |
| service life of acoustic signal device | 5 000 h |
| loudness level | 85 dB |
| loudness level | 85 dB |
| tone frequency of alternating tone | 2.5 kHz |
Enclosure

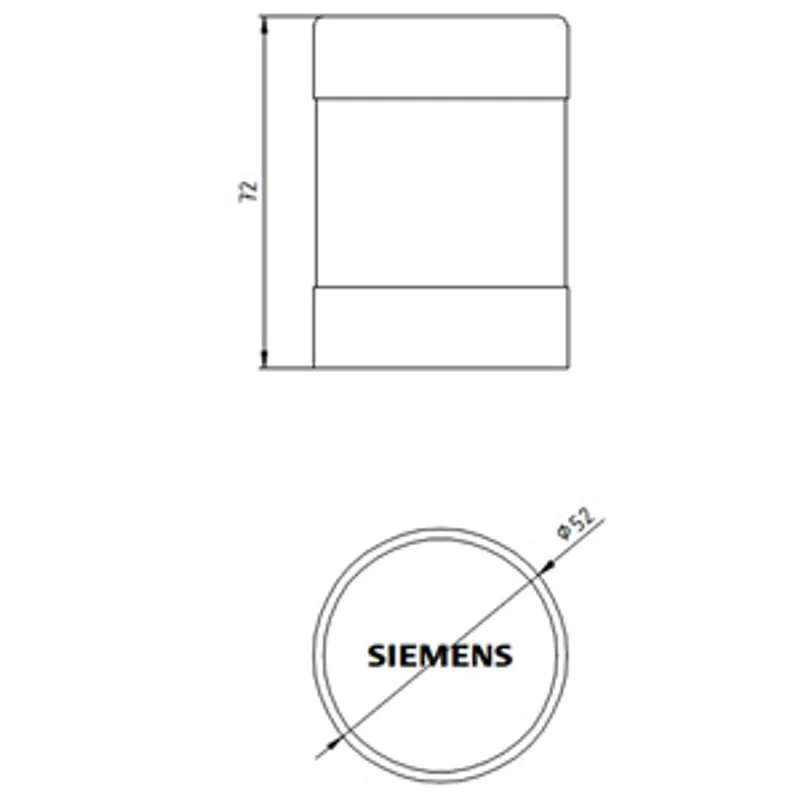

| height | 72 mm |
| width | 52 mm |
| outer diameter of the signal column element | 50 mm |
| material | PC |
| color | black |
| fastening method | Bayonet |
| protection class IP | IP54 |
Ambient conditions
| ambient temperature during operation | -20 ... +50 °C |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| Siemens eco profile (SEP) | Siemens EcoTech |
